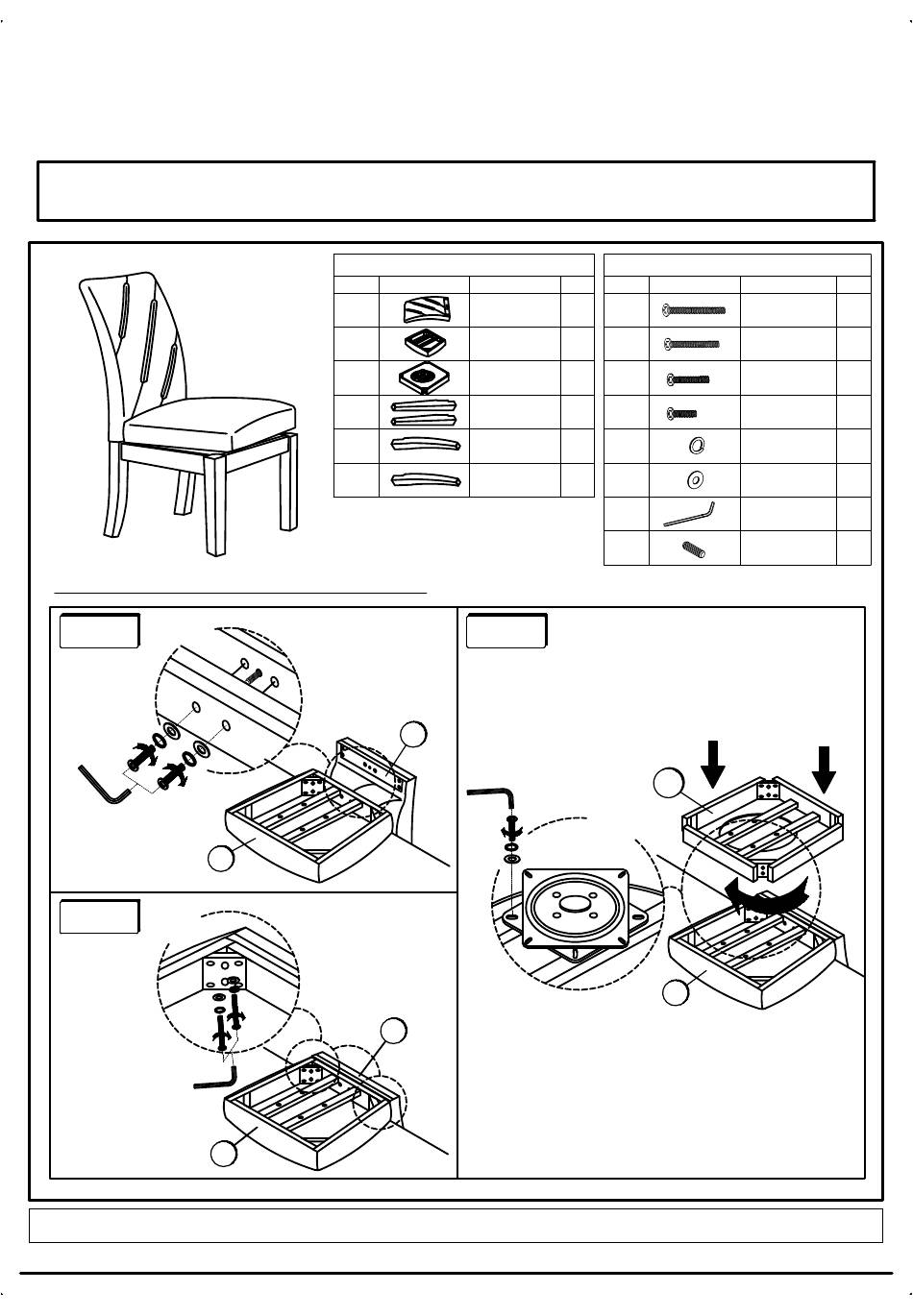

BRICK D3977 Assembly Instruction

MODEL NO:
D3977
Thank you for purchasing this quality product. Be sure to check all packing material
carefully for small parts that may have come loose inside the carton during shipment.
COMPLETED SWIVEL CHAIR
x2
STEP 1
5
7
3
STEP 2
x4
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE. CHECK
CLEANING INSTRUCTION :
AFTER ASSEMBLE, CLEAN & POLISH THE COMPLETED PARTS IF NECESSARY WITH SOFT CLOTH AND INDUSTRIAL RECOGNIZED FURNITURE POLISH.
ASSEMBLY INSTRUCTION
PART LIST :
ITEM
A
B
C
D
E
F
8
6
B
6
5
1
7
B
TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS.
DRAWING DESCRIPTION QTY
CHAIR BACK
CUSHION SEAT
BOX SEAT
FRONT LEG
BACK LEG LEFT
BACK LEG RIGHT
STEP 3
A
7
4
5
6
A
PAGE 1 OF 2
HARDWARE LIST :
Location in Carton 1 of 1
ITEM DRAWING
1
1
2
1
1 3
4
2
5
1
6
1
7
8
C
x4
B
DESCRIPTION:
SWIVEL CHAIR
DESCRIPTION QTY
JCBC SCREW
4
( M6 x 90mm )
JCBC SCREW
8
( M6 x 50mm )
JCBC SCREW
2
( M6 x 40mm )
JCBC SCREW
4
( M6 x 25mm )
SPRING WASHER
18
( M6 )
FLAT WASHER
18
( M6 x 19mm )
ALLEN KEY
1
( M4 x 65mm )
WOOD DOWEL
1
( Ø8 x 30mm )
MADE IN MALAYSIA
