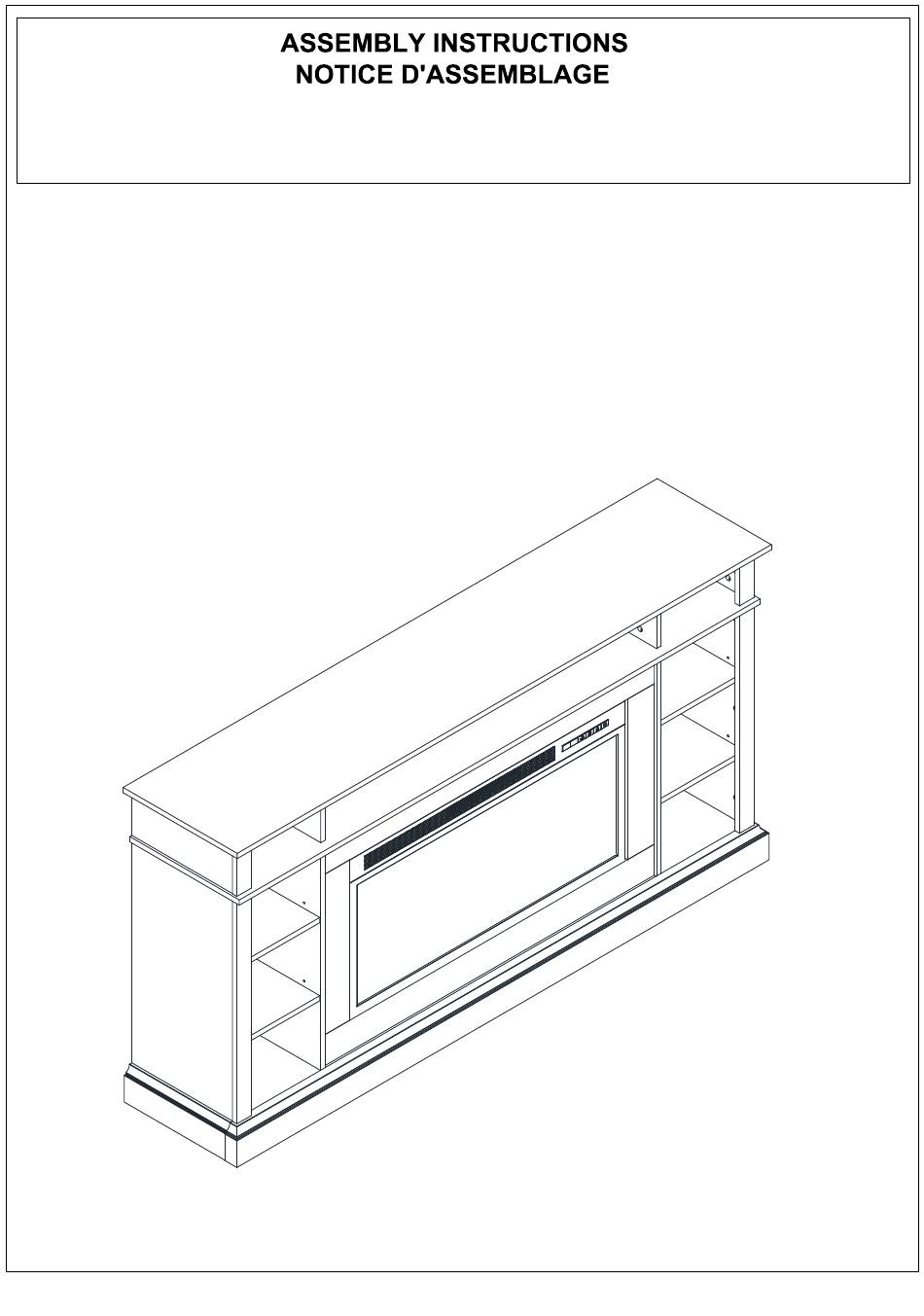

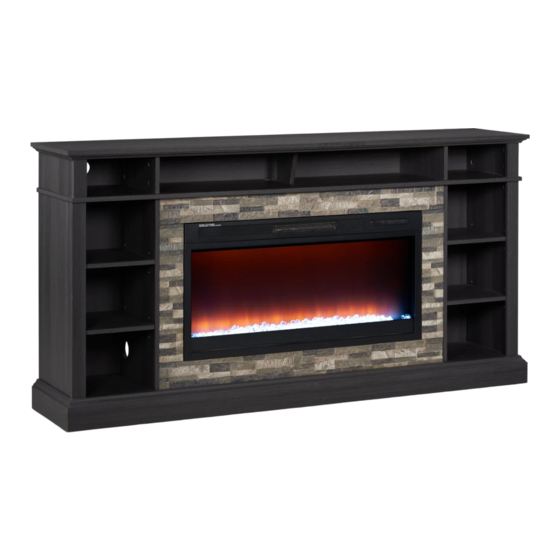

: HF210158/LAPLNFIR
ITEM
Important note/Note importante:
1.Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid
scratching the parts./Placer les pièces sur une surface propre et lisse tel qu'une couverture ou
un tapis pour éviter d'endommager les pièces.
2.Kindly follow the assembly instructions step by step./ Veuillez suivre la notice d'assemblage,
pas à pas.
3. Check to ensure this carton contains all parts./Vérifiez le contenu de cet emballage pour vous
assurer qu'il contienne toutes les pièces.
PAGE 1 OF 32
2205R1
Advertisement
Related Manuals for BRICK Lappland LAPLNFIR
Summary of Contents for BRICK Lappland LAPLNFIR
- Page 1 : HF210158/LAPLNFIR ITEM Important note/Note importante: 1.Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid scratching the parts./Placer les pièces sur une surface propre et lisse tel qu'une couverture ou un tapis pour éviter d'endommager les pièces. 2.Kindly follow the assembly instructions step by step./ Veuillez suivre la notice d’assemblage, pas à...
- Page 2 : HF210158/LAPLNFIR ITEM x 1pc/pce x 2pcs/pces x 2pcs/pces x 1pc/pce x 1pc/pce x 1pc/pce x 1pc/pce x 1pc/pce x 1pc/pce x 2pcs/pces x 1pc/pce x 1pc/pce x 1pc/pce x 2pcs/pces x 2pcs/pces x 1pc/pce x 1pc/pce x 2pcs/pces x 2pcs/pces x 4pcs/pces x 1pc/pce x 2pcs/pces...
- Page 3 : HF210158/LAPLNFIR ITEM Ф5.8×30mm 16 pcs/pces Ф7.8×30mm 44 pcs/pces Ф7.8×50mm 8 pcs/pces Ф15×12mm 50 pcs/pces Ф7.5×36mm 34 pcs/pces Ф6.5×73mm 8 pcs/pces Ф5×25mm 16 pcs/pces 14×13×9.5mm 16 pcs/pces 16 pcs/pces Ф3×16mm 19 pcs/pces Ф4×40mm Ф4×28mm 4 pcs/pces 2 pcs/pces Ф4×22mm Ф7.5×25mm 9 pcs/pces Ф12x11mm 9 pcs/pces...
- Page 4 : HF210158/LAPLNFIR ITEM 2 pcs/pces 200×32×1.5mm 4 pcs/pces Ф12×Ф6.2×1mm Ф6×30mm 2 pcs/pces 80×38.2mm 4 pcs/pces 24 pcs/pces Ф4×12mm 26.5×26.5mm 4 pcs/pces 2 pcs/pces 55×11mm 914×25×15mm 1 pc/pce 2 pcs/pces 480×25×15mm 8 pcs/pces+ Ф4×10mm extra 2 pcs/pces 7 pcs/pces+ Ф4×6mm extra 2 pcs/pces PAGE 4 OF 32...
- Page 5 Necessary tools/Outils nécessaires Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .) Colle non inclus (Nous vous recommandons d’appliquer quelques gouttes de colle dans les trous avant d'introduire les chevilles de bois.) Estimated Assembly Time : 50 minutes by two adults.
- Page 6 : HF210158/LAPLNFIR ITEM STEP 1 / ÉTAPE 1 B x 8 D x 14 E x 4 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 6 OF 32...
- Page 7 : HF210158/LAPLNFIR ITEM STEP 2 / ÉTAPE 2 J x 2 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 7 OF 32...
- Page 8 : HF210158/LAPLNFIR ITEM STEP 3 / ÉTAPE 3 B x 4 C x 4 D x 4 M x 6 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 8 OF 32...
- Page 9 : HF210158/LAPLNFIR ITEM STEP 4 / ÉTAPE 4 A x 16 B x 8 N x 9 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 9 OF 32...
- Page 10 : HF210158/LAPLNFIR ITEM STEP 5 / ÉTAPE 5 R x 4 S x 16 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 10 OF 32...
- Page 11 : HF210158/LAPLNFIR ITEM STEP 6 / ÉTAPE 6 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 11 OF 32...
- Page 12 : HF210158/LAPLNFIR ITEM STEP 7 / ÉTAPE 7 J x 11 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 12 OF 32...
- Page 13 : HF210158/LAPLNFIR ITEM STEP 8 / ÉTAPE 8 B x 4 C x 4 D x 12 E x 6 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 13 OF 32...
- Page 14 : HF210158/LAPLNFIR ITEM STEP 9 / ÉTAPE 9 B x 4 E x 12 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 14 OF 32...
- Page 15 : HF210158/LAPLNFIR ITEM STEP 10 / ÉTAPE 10 K x 4 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 15 OF 32...
- Page 16 : HF210158/LAPLNFIR ITEM STEP 11 / ÉTAPE 11 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 16 OF 32...
- Page 17 : HF210158/LAPLNFIR ITEM STEP 12 / ÉTAPE 12 B x 2 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 17 OF 32...
- Page 18 : HF210158/LAPLNFIR ITEM STEP 13 / ÉTAPE 13 F x 8 2-3mm TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 18 OF 32...
- Page 19 : HF210158/LAPLNFIR ITEM STEP 14 / ÉTAPE 14 E x 1 M x 3 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 19 OF 32...
- Page 20 : HF210158/LAPLNFIR ITEM STEP 15 / ÉTAPE 15 J x 4 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 20 OF 32...
- Page 21 : HF210158/LAPLNFIR ITEM STEP 16 / ÉTAPE 16 B x 6 D x 20 E x 2 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 21 OF 32...
- Page 22 : HF210158/LAPLNFIR ITEM STEP 17 / ÉTAPE 17 Finished edge/ Bord de finition Finished edge/ Bord de finition TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 22 OF 32...
- Page 23 : HF210158/LAPLNFIR ITEM STEP 18 / ÉTAPE 18 B x 8 PAGE 23 OF 32...
- Page 24 : HF210158/LAPLNFIR ITEM STEP 19 / ÉTAPE 19 E x 9 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 24 OF 32...
- Page 25 : HF210158/LAPLNFIR ITEM STEP 20 / ÉTAPE 20 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 25 OF 32...
- Page 26 : HF210158/LAPLNFIR ITEM STEP 21 / ÉTAPE 21 G x 16 PAGE 26 OF 32...
- Page 27 : HF210158/LAPLNFIR ITEM STEP 22 / ÉTAPE 22 H x 16 I x 16 U x 2 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 27 OF 32...
- Page 28 : HF210158/LAPLNFIR ITEM STEP 23 / ÉTAPE 23 AA x 1 BB x 2 DD x 7 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 28 OF 32...
- Page 29 : HF210158/LAPLNFIR ITEM STEP 24 / ÉTAPE 24 CC x 8 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 29 OF 32...
- Page 30 : HF210158/LAPLNFIR ITEM STEP 25 / ÉTAPE 25 S x 8 T x 4 TOOLS REQUIRED (NOT INCLUDED) OUTILS REQUIS (NON COMPRIS) PAGE 30 OF 32...
- Page 31 ANTI-TIPPING STRIP INSTRUCTION INSTRUCTIONS POUR SANGLE ANTI-BASCULEMENT HARDWARE INCLUDED TOOLS REQUIRED (NOT INCLUDED) MATÉRIEL INCLUS OUTILS REQUIS (NON COMPRIS) SCREW Ф4×40mm 2 pcs/pces DRILL & DRILL BIT PERCEUSE ET TRÉPAN SCREW Ф4×22mm 2 pcs/pces LIGHT HAMMER WALL ANCHOR MARTEAU LÉGER Ф6×30mm 2 pcs/pces ANCRE AU MUR...
- Page 32 : HF210158/LAPLNFIR ITEM MAXIMUM LOAD 132.3 lbs (60 kg) CHARGE MAXIMALE 132,3 lbs (60 kg) MAXIMUM LOAD 17.6 lbs (8 kg) CHARGE MAXIMALE 17,6 lbs (8 kg) MAXIMUM LOAD 66.1 lbs (30 kg) CHARGE MAXIMALE 66,1 lbs (30 kg) COMPLETE / ASSEMBLAGE TERMINÉ PAGE 32 OF 32...
