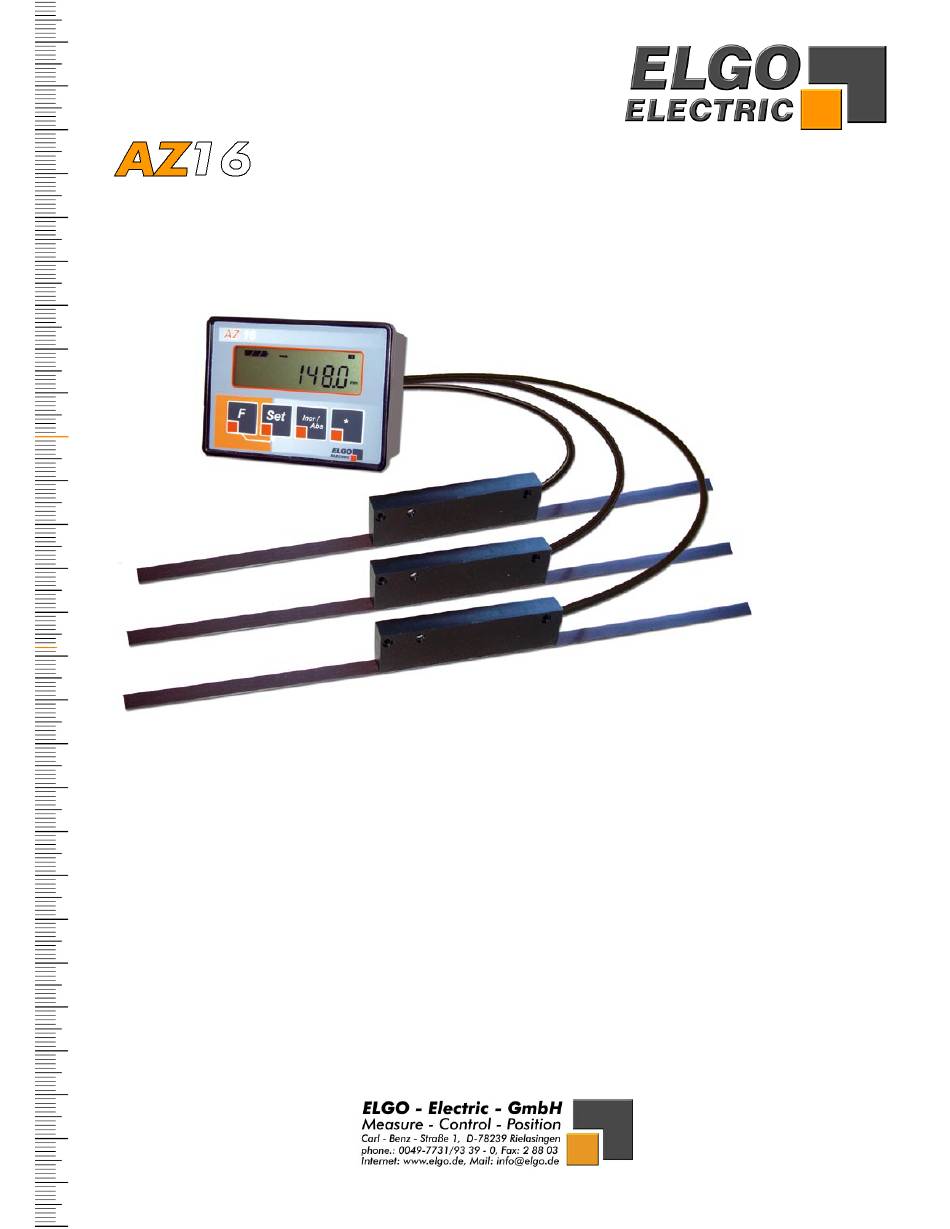

E-300 series
Installation Manual

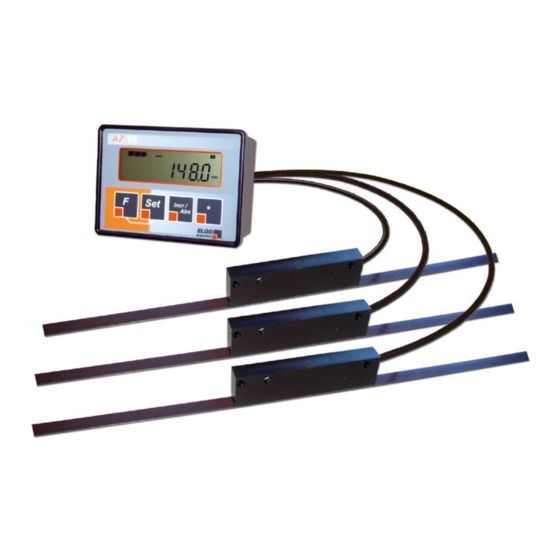

Battery powered Linear Measuring Unit
Indicator connectable with 3 external Sensors (Resolution 0.1 mm)
Features:
• Up to three external sensors can be indicated (switch over display)
• Display is upgradeable up to 3 axes at any time
• Unique definition of the zero point (no further referencing necessary)
• Permanent retention of all data and settings
• Reserve energy up to 3 years
• AUTO-POWER-OFF function with adjustable „switch on" time
• Switch over for absolute / incremental mode
• Millimeters or Inches operation
• Fraction views in the Inch mode possible
• User friendly menu levels
• Keys can be enabled or disabled individually
• Adjustable reference value and 3 tool offsets
•
Individually symbols are selectable (mm/inches/arrows etc.)
AZ16E-300-E_10-06.doc
Doku Art. Nr. 799000029
Advertisement
Table of Contents
Related Manuals for ELGO Electric AZ16E-300 Series
Summary of Contents for ELGO Electric AZ16E-300 Series
- Page 1 E-300 series Installation Manual Battery powered Linear Measuring Unit Indicator connectable with 3 external Sensors (Resolution 0.1 mm) Features: • Up to three external sensors can be indicated (switch over display) • Display is upgradeable up to 3 axes at any time •...
-
Page 2: Table Of Contents
1. INTRODUCTION 2. SAFETY 3. DETERMINATION OF THE RAIL AND TAPE LENGTH 4. DISPLAY ASSIGNMENT 5. THE AZ16E IN OPERATION 5.1 Initial operation 5.1.1 Detection of measuring direction 5.1.2 Addressing of the sensors 5.1.3 Connecting the external Magnet Sensors 5.1.4 Zero point / Referencing 5.2 Overview of the basic functions 5.3 Parameter input 5.4 Parameterliste... -
Page 3: Introduction
Attention! The ELGO Electric GmbH company is not liable for possible damages to ma- chines and or to persons, which can result from defective material at the meas- uring system and the following circuit. The machine manufacturer is responsible... -
Page 4: Determination Of The Rail And Tape Length
3. Determination of the rail and tape length Basically the following applies with an order of magnetic tape: Ordered length of tape = effective measuring distance + 100 mm For further details see the „Type designation“ at the end of the manual. 4. -
Page 5: Addressing Of The Sensors
5.1.2 Addressing of the sensors Each sensor AZS possesses an adjustable address, which is already pre-configured as default setting. With the exchange of a sensor or with extension on several axles the address must be adjusted before. Fundamental notes: When using a single sensor, the address 1 must be adjusted. When using a two sensors, the addresses 1 and 2 must be adjusted. -
Page 6: Connecting The External Magnet Sensors
5.1.3 Connecting the external Magnet Sensors The Sensors can be connected at every free plug-in connector (without a firm allocation). It is possible to plug out the sensor at any time (also during an operation), it is not neces- sary to remove the battery before. 5.1.4 Zero point / Referencing Setting the zero-point: A new AZ16E unit shows always the absolute value of the magnetic tape and should be calibrated to the zero point for one time. -
Page 7: Overview Of The Basic Functions
5.2 Overview of the basic functions Deactivating the Sleep Deactivating the Sleep- - - - Mode Deactivating the Sleep Deactivating the Sleep Mode Mode Mode After an adjustable time in P04, the indicaror jumps automatically into F F F F a sleep mode sleep mode, if the indicator value is unchanged and no key was sleep mode... -
Page 8: Parameter Input
5.3 Parameter input 1) Press button F for 3 seconds. "P01" (Parameter 01) appears in the display window. 3 sec. 2) Press button F The appropriate parameter value appears in the display 3) Select the desired decade by pressing Set 4) Adjust the desired value by using the Incr/Abs button Incr/ 5) Press F to select the next parameter... -
Page 9: Parameterliste
5.4 Parameterliste P P P P 01 01 / / / / System Configuration System Configuration System Configuration System Configuration ( ( ( ( default setting default setting = = = = 1110000 1110000 ) ) ) ) default setting default setting 1110000 1110000... -
Page 10: Battery Change
Parameter list Parameter list ( ( ( ( continuation continuation) ) ) ) Parameter list Parameter list continuation continuation P P P P 10 10 / / / / reference value axis reference value axis- - - - 1 1 1 1 : : : : reference value axis reference value axis ( ( ( ( default value... -
Page 11: Magnetic Tape
7. Magnetic Tape The magnetic tape consists of 3 components (see picture 1) a magnetized flexible rubber tape (Pos. 3), which is connected factory made with a • steel band (Pos. 5) and a • covering band (Pos. 1) , which is intended for the protection of the rubber tape. •... -
Page 12: Processing Note For Sticking
7.2 Processing note for sticking The provided sticky tapes stick well on clean, dry and plain surfaces. The more pollution exists the more proper the surface has to be. A surface roughness of R <= 3,2 (R <= 25 / N8) is recommendable. -
Page 13: Technical Specifications
8. Technical specifications AZ16E (battery powered absolute encoder and indicator system with an external sensor) POWER SUPPLY 1 commercial battery size C (1.5 V) Battery service life 1... 3 years (depends on adjusted switch-on time) Distance Sensor - Tape max. 1.5 mm Resolution of encoder 0.1 mm Measuring units mm’s or INCHES Measuring length max. -
Page 14: Dimensions
9. Dimensions 9.1 Display Unit: * minus 9 mm, plugs can be bended 37 (Install depth) Panel cut out: B x H = 93 x 67 mm... -
Page 15: External Magnet Sensor
9.2 External Magnet Sensor: Ø 6 Ø 3.4 10. Installation / Display Unit For mounting into a panel serves two small mounting plates with grub screws (included in the delivery, see image right). The unit must be pushed from the front into the cut-out and fixed from the rear by the grub screws at the instrument panel then. -
Page 16: Type Designation
11. Type Designation A single sensor AZS is already included in the standard delivery. The cable length of the desig- nation below refers to the sensor included in standard delivery. AZ16E- 300- XX.X- Type AZ16E: Indicator with external AZS sensors SN- Number 300 = Triple Axes Indicator (AZS sensors are available accessories) -
Page 17: Accessories
12. Accessories 12.1 Further sensors for a 2 and 3 axis. Further sensors are accessories and must be ordered separately: AZS- 000- 03.0- Type AZS: AZ sensor (external absolute sensor for AZxx) SN- Number: 000 = standard 001 = first special version etc. Sensor type: 0 = AZ sensor-50 / for max. -
Page 18: Liability Exclusion / Guarantee
The guarantee period is one calendar year from the date of delivery and includes the delivered unit with all its components. ELGO Electric GmbH will at its option replace or repair without charge defects at the unit or the included parts, verifiable caused by faulty manufacturing and/or material in spite of proper handling and compliance to the instruction manual.
