ELGO Electric Z20-SN105-024 Instructions Manual

Mini position indicator with magnetic length measuring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

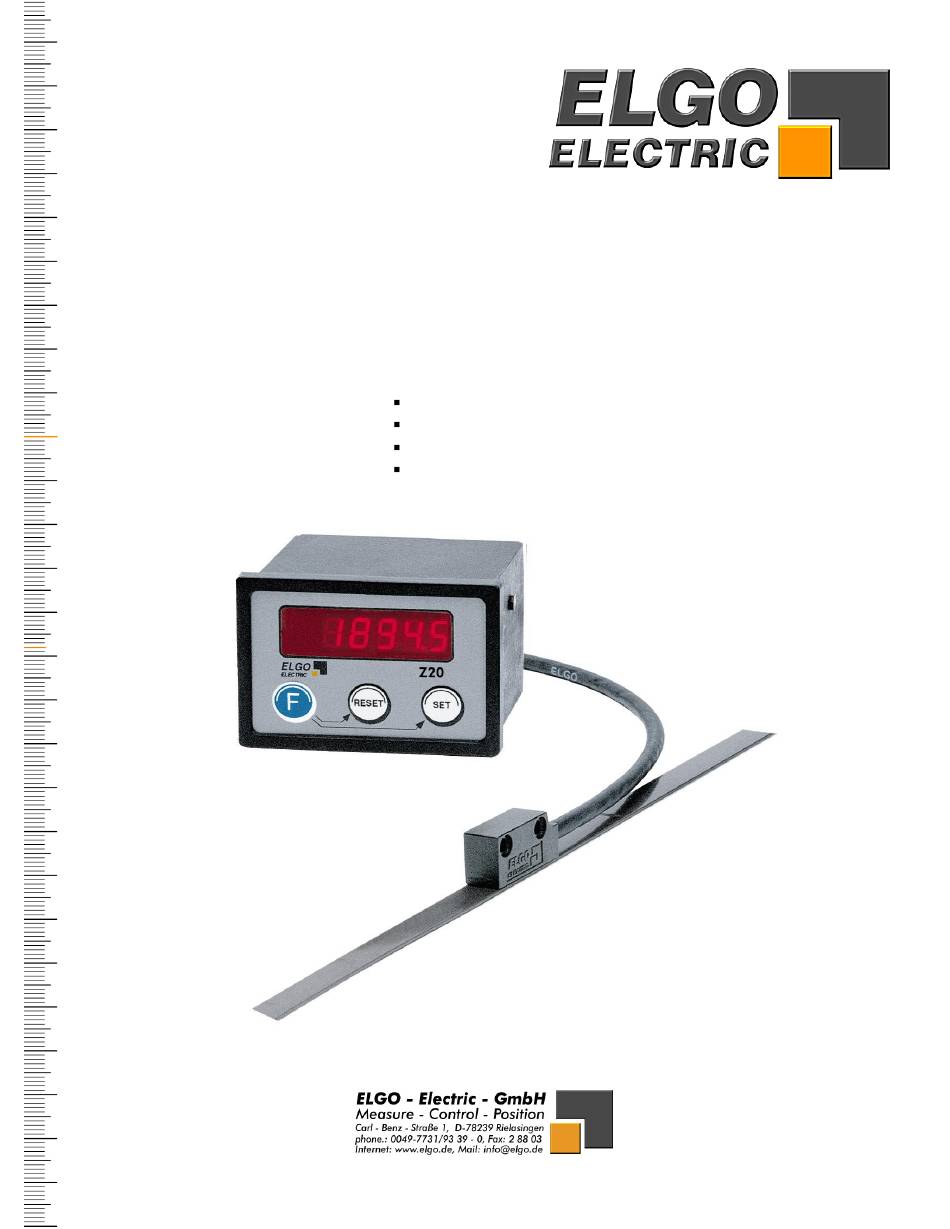

SERIE Z20-SN105-024
(Z20-005 with enable of parameter settings by hardware link)
with magnetic length measuring system
(ELGO sensor MS20.60 and magnetic tape MB20.50)
Z20-105-E_41-04.pdf
Mini position indicator
With sign
5 digits pulse factor
Programmable decimal point
Digital brightness control
Doku-Art.-Nr.799000235

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z20-SN105-024 and is the answer not in the manual?

Questions and answers

Иван Леонидович
July 22, 2025

где можно приобрести индикатор положения elgo z20-105-024-9?

0

Related Manuals for ELGO Electric Z20-SN105-024

Summary of Contents for ELGO Electric Z20-SN105-024

  • Page 1 SERIE Z20-SN105-024 (Z20-005 with enable of parameter settings by hardware link) Mini position indicator with magnetic length measuring system (ELGO sensor MS20.60 and magnetic tape MB20.50) With sign 5 digits pulse factor Programmable decimal point Digital brightness control Doku-Art.-Nr.799000235 Z20-105-E_41-04.pdf...

  • Page 2: Table Of Contents

    1. INTRODUCTION 2. OPERATING INSTRUCTIONS 3. THE MAGNETIC LENGTH-MEASURING-SYSTEM Essential Features High Accuracy Simple Mounting Protection Class Connections 4. THE COMPONENTS Magnetic tape MB 20.50 Sensor MS 20.60 5. PARAMETER SETTING Registers Programming-example: 6. HINTS FOR INSTALLATION AND OPERATION Hints for Operation in Electrical panels Hints on mounting the Tape MB20.50 7.

  • Page 3: Introduction

    1. Introduction This small, compact instrument has an 8 mm high, red LED display and provides a convenient, precise and easily readable indication of position. Using the dust-tight keypad (and external signal if required) the display can be reset or preset a datum value. The unit will operate with Elgo magnetic scale system and provides a rugged cost effective quality panel mounting instrument.

  • Page 4: Simple Mounting

    Simple Mounting The tape is simple to attach to the machine (e.g. by means of double sided sticky tape). Due to its high flexibility it can cope with uneven surfaces ore radii without affecting accuracy. A second steel tape is fitted on top of the magnetic tape, to protect it. The equipment will operate satisfactorily with a measuring gap of 0.1 to 2.0 mm.

  • Page 5: The Components

    4. The components Magnetic tape MB 20.50 The complete tape comprises 3 components: Sensor side 1,8mm Mounting side 10mm Can be supplied in lengths from 0,5 - 32 m The magnetized, highly flexible rubber tape, connected on the bottom with: A magnetized, flexible steel tape.

  • Page 6: Sensor Ms

    Sensor MS 20.60 The sensor head provides an analog signal. The sensor is connected directly to the indicator. Dimensions: 17+/-0,2 Distance max. 2,0 mm Over the distance X, the gap between sensor and measuring tape must not be larger than 0.1…...

  • Page 7: Parameter Setting

    5. Parameter setting To enter the set up-mode a link must be done between Connector Pin 2 and 4, at the rear of the unit (see jumper on image / page 4), to enable the set up level. The parameter entry will be activated by pressing the 3 front located keys for app.

  • Page 8: Hints For Installation And Operation

    6. Hints for installation and Operation Hints for Operation in Electrical panels This position indicator is designed and constructed for use in arduous industrial applications and as immune to electrical interference as possible. Care should however be taken when fitting electronic equipment into machinery.

  • Page 9: Technical Specifications

    7. Technical Specifications Magnetic Sensor MS 20.60 The sensors are only available together with Z20. The cable length cannot be changed later. Maximum speed: 3,2 m/sec. Cable length: 1m,3m,5m,8m,10m,15m Cable diameter: 5.3 mm Cable bends radius: min. 60 mm Connector diameter: 12,5 mm Housing: Metal...

  • Page 10: Dimensions

    8. Dimensions Cut out Side view 62mm 57mm 66 mm 44 mm 48mm 77mm External dimensions 48mm RESET ELGO ELECTRIC 72mm...

  • Page 11: Type Designation

    9. Type designation Z20 – 005- 024 – 9-X Small Single axis display with Magnetic sensor input Construction 005 = 0,01 Magnetic sensor interpolation circuit integrated 105 = Special 005 (Enable of parameter setting level by hardware link) Supply voltage 024 = 24 V DC/ AC +/- 10% Encoder input 9 = Magnetic sensor 0.01 mm resolution...

  • Page 12: Liability Exclusion / Guarantee

    The guarantee period is one calendar year (EC-Directive) from the date of delivery and includes the delivered unit with all components. ELGO Electric GmbH will at its option replace or repair without charge defects at the unit or the included parts, verifiable caused by faulty manufacturing and/or material in spite of proper handling and compliance to the instruction manual.
