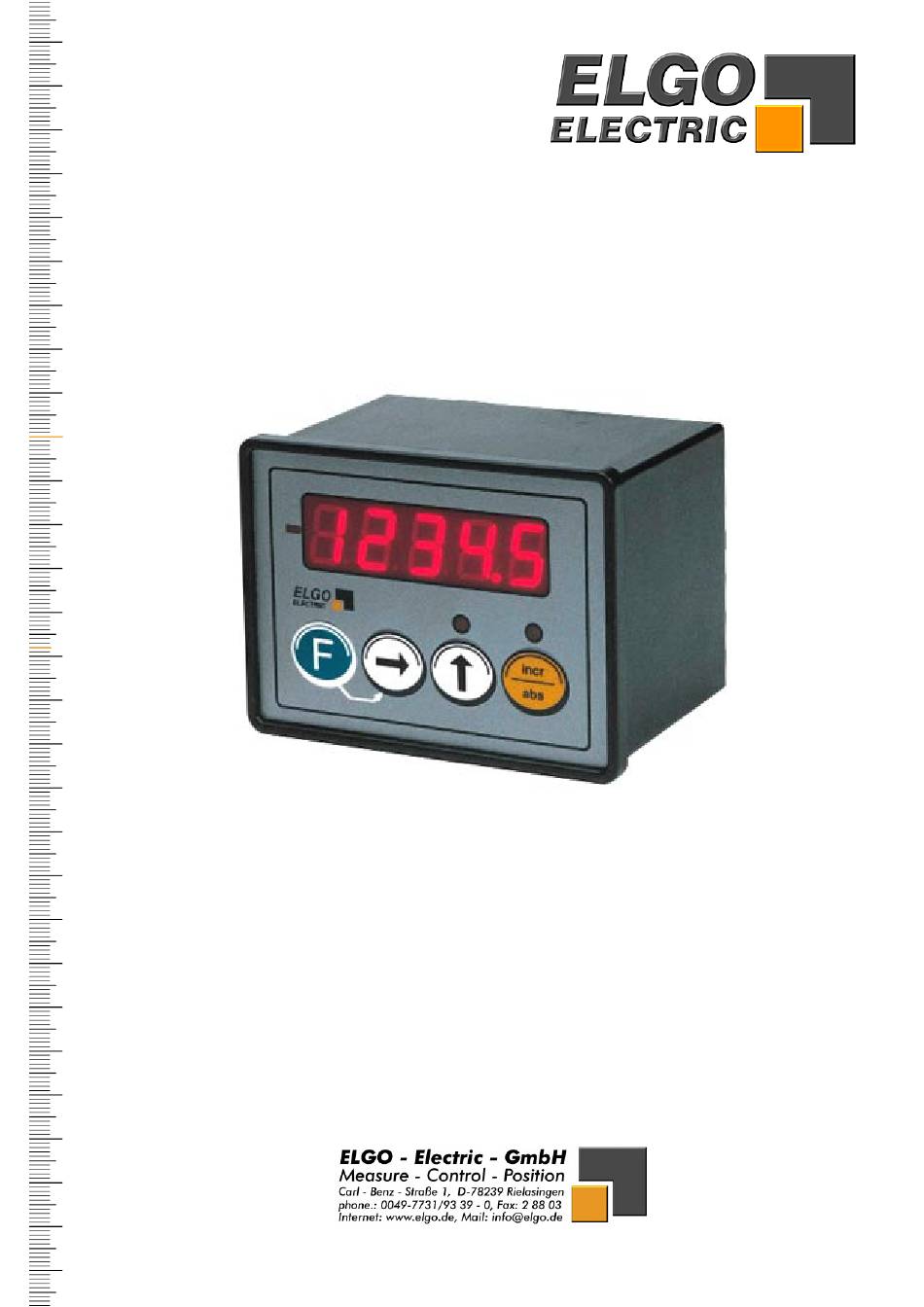

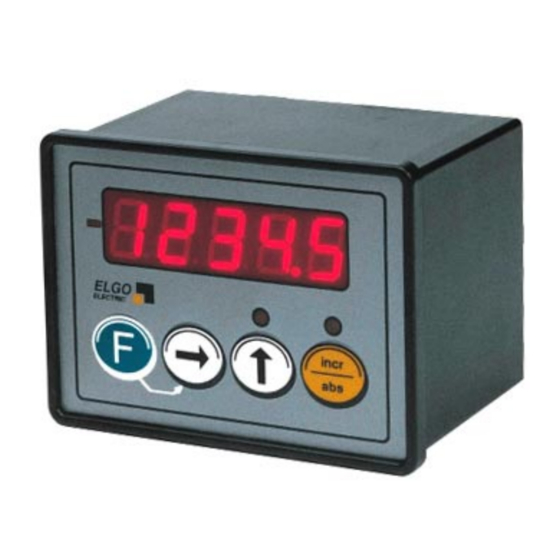

- Page 1 Z54 & Z56 Series Programmable Position Indicators Series 54: For use with Encoders Series 56: For use with MX magnetic scale Z54-56-000-E_41-99.doc Doku Art. Nr. 799000101...
-
Page 2: Table Of Contents
ESSENTIAL FEATURES MX MAGNETIC SCALE OPERATION USER ADJUSTMENTS Edit Datum and Datum Offset Edit Datum programmed value Setting display to any value Edit datum Offset Edit Datum +/- 1 bit Edit Flexible Multiplier Changing Display Value Counter Configuration Configuration Register Direction of Count Decimal Places Inch / Metric Switching... -
Page 3: Essential Features
Essential Features The Series 54 / 56 programmable position indicators are available with either a 5 digit 13mm high LCD display, a 5 digit 14mm red LED display, or 6 digit 10mm red LED display. The indicators incorporate the following features : - Input of required datum value by means of the front buttons - Robust foil covered buttons and compact plastic enclosure - Can be operated from the batteries or from external power supply... -
Page 4: Operation
Operation These indicators may be fully controlled from four simple push buttons:- Function select Must be pressed with another button to select required function. Pressed on its own, returns from selected function to operation, and stores edited value to RAM. Twin Datum When pressed on its own, adds the Datum Offset to the actual position. -
Page 5: User Adjustments
Setting Datum When pressed together, immediately sets the pre-programmed datum position to the display. This is only possible if the configuration register is set to ( XXXX0 ) (See user adjustments, for random setting of Datum). Display Extinguish - 56 series (for battery life saving) The counter and/or display may be extinguished in a number of ways. -
Page 6: Edit Datum Offset
Edit datum Offset Press both buttons for three seconds, allows the editing of the Datum Offset . Range ( 00000 to + 99999 ) Edit Datum +/- 1 bit The indicator provides the facility for the operator to make small adjustments to the actual value of display to take care of minor machine variations. -
Page 7: Changing Display Value
Changing Display Value Display manipulation of both the User Adjustment and Configuration is done using the following method, once the desired function to edit has been accessed. to select the digit to be changed ( this flashes ) to increment the digit between 0 and 9. stores the value to the internal RAM and returns the indicator to operating mode. -
Page 8: Configuration Register
Configuration Register Pressing the above buttonfor three seconds gives access to the configuration 5 digit register. Datum Mode Set datum to stored value Set as required 2 - Edit datum + or - 1 bit. Datum / Datum Offset Edit 0 - Unlocked Ignore 6th digit 1 - locked... -
Page 9: Direction Of Count
Direction of Count Press for three seconds gives access to the count direction to toggle between p and own. Decimal Places Press for three seconds gives access to the number of decimal places. to toggle between 1,2 or 3 decimal places. Inch / Metric Switching Press for three seconds gives access to either counting in inches or millimetres. -
Page 10: Sensor - Ms17.60.03,0M
Sensor - MS17.60.03,0m Sensor bold MS 20.60 gap max. 2,0 mm Maximum speed of travel - 5m/sec Cable length - 3m standard ( up to 25m available) Operating temperature - ( -5 ) to ( + 45 ) deg.C Sealing - IP66 Magnetic Tape –... - Page 11 Connections Series 54 (EE Option) ST1 - Inputs ST2 - Encoder Pin 1 - Screen Pin 1 - 0 Volts Pin 2 - 0 volts dc input for Pin 2 - +24 Volts dc 024 versions Pin 3 - +24 volts Pin 3 - Channel A Offset Pin 4 -...
- Page 12 Dimensions Panel Mounting Series 54 and 56 Cut Out dimensions Outline Dimensions Side View 92mm 66mm 62mm 96mm 68mm AG Enclosure Mounting Series 54 and 56 95mm 60mm 107mm 30mm 90mm Depth 160mm with connector NG20.0 Power Supply 45mm 55mm 80mm...
- Page 13 S eries D isplay P ow er S upply O ptions F or 56 series indicators to operate on 110/230 v ac, use the 024 version and order a separate N G 20 .0 pow er supply. A G versions alw ays include N G 20.0 m ounted inside the enclosure. 2 external inputs only available.
-
Page 14: Type Designation Of 54/56 Series
Type designation of 54/56 series 5X . 500 . 024 . SN000.XXXXXXX 54 Display with A / B encoder input 56 Display with converter integrated Number of decade of the readout 500 = 5 digit LED 14mm high 600 = 6 digit LED 10mm high 100 = 6 digit LCD Supply voltage 024 = 24 V DC... -
Page 15: Liability Exclusion / Guarantee
The guarantee period is one calendar year from the date of delivery and includes the delivered unit with all components. ELGO Electric GmbH will at its option replace or repair without charge defects at the unit or the included parts, verifiable caused by faulty manufacturing and/or material in spite of proper handling and compliance to the instruction manual.
