SLC LogiQ S37020 Quick Start Manual

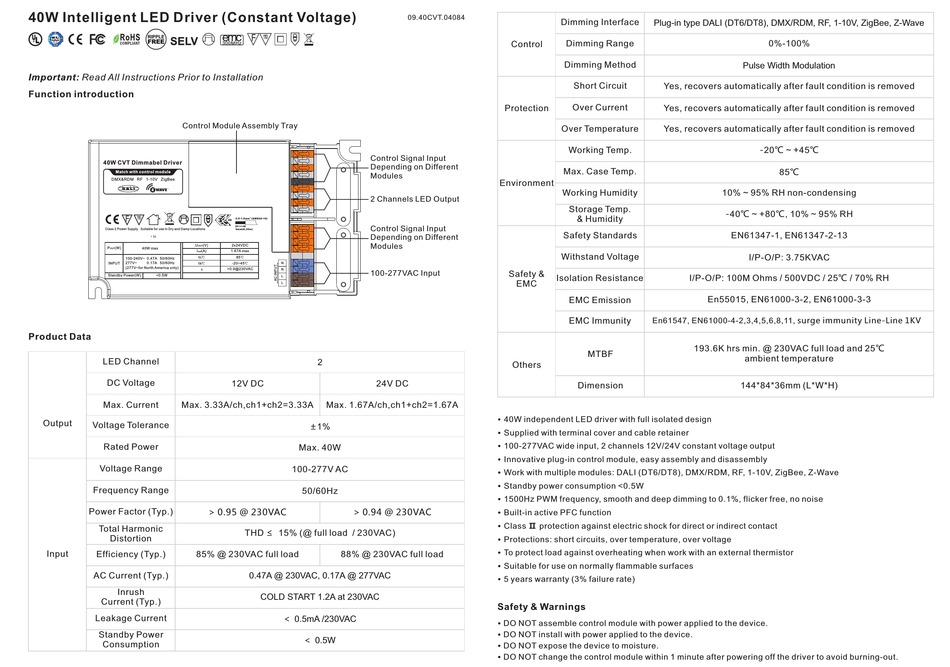

40W Intelligent LED Driver (Constant Voltage)
Important: Read All Instructions Prior to Installation

Function introduction

Control Module Assembly Tray
40W CVT Dimmabel Driver
Match With Control Module
DMX&RDM RF 1-10V ZigBee
Class 2 Power Supply Suitable for use in Dry and Damp Locations
U (V)
OUT
P (W)
OUT 40W max
I (A)
out
tc℃
100-240V~ 0.47A 50/60Hz
277V~ 0.17A 50/60Hz
INPUT ta℃
(277V~for North America only)
λ
Standby Power(W) <0.5W
Product Data
LED Channel
DC Voltage
Max. Current Max. 3.33A/ch,ch1+ch2=3.33A
Output
Voltage Tolerance
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.) > 0.95 @ 230VAC
Total Harmonic
Distortion
Input Efficiency (Typ.) 85% @ 230VAC full load
AC Current (Typ.)
Inrush
Current (Typ.)
Leakage Current
Standby Power
Consumption
emc
300MHz
Control Signal Input
Depending on Different
Modules
2 Channels LED Output
Control Signal Input
Depending on Different
Modules
2x24VDC
1.67A max
85 ℃
-20~45 ℃ N
>0.9@230VAC
N
100-277VAC Input
L
L
2
12V DC 24V DC
Max. 1.67A/ch,ch1+ch2=1.67A
±1%
Max. 40W
100-277V AC
50/60Hz
> 0.94 @ 230VAC
THD ≤ 15% (@ full load / 230VAC)
88% @ 230VAC full load
0.47A @ 230VAC, 0.17A @ 277VAC
COLD START 1.2A at 230VAC
< 0.5mA /230VAC
<
0.5 W
09.40C T.04084 V
Dimming Interface
Dimming Range
Control
Dimming Method
Short Circuit
Over Current
Protection
Over Temperature
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission
EMC Immunity
MTBF
Others
Dimension
• 40W independent LED driver with full isolated design
• Supplied with terminal cover and cable retainer
•
100-277VAC wide input, 2 channels 12V/24V constant voltage output
•
Innovative plug-in control module, easy assembly and disassembly
•
Work with multiple modules: DALI (DT6/DT8), DMX/RDM, RF, 1-10V, ZigBee, Z-Wave
•
Standby power consumption <0.5W
•
1500Hz PWM frequency, smooth and deep dimming to 0.1%, flicker free, no noise
• Built-in active PFC function
• Class Ⅱ protection against electric shock for direct or indirect contact
•
Protections: short circuits, over temperature, over voltage
•
To protect load against overheating when work with an external thermistor
• Suitable for use on normally flammable surfaces
• 5 years warranty (3% failure rate)
Safety & Warnings
• DO NOT assemble control module with power applied to the device.
•
DO NOT install with power applied to the device.
•
DO NOT expose the device to moisture.
• DO NOT change the control module within 1 minute after powering off the driver to avoid burning-out.
Plug-in type DALI (DT6/DT8), DMX/RDM, RF, 1-10V, ZigBee, Z-Wave
0%-100%
Pulse Width Modulation
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after fault condition is removed
-20 ℃ ℃
~ +45
85℃
10% ~ 95% RH non-condensing
-40 ℃ ℃
~ +80 , 10% ~ 95% RH
EN61347-1, EN61347-2-13
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
En55015, EN61000-3-2, EN61000-3-3
En61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
193.6K hrs min. @ 230VAC full load and 25℃
ambient temperature
144*84*36mm (L*W*H)
