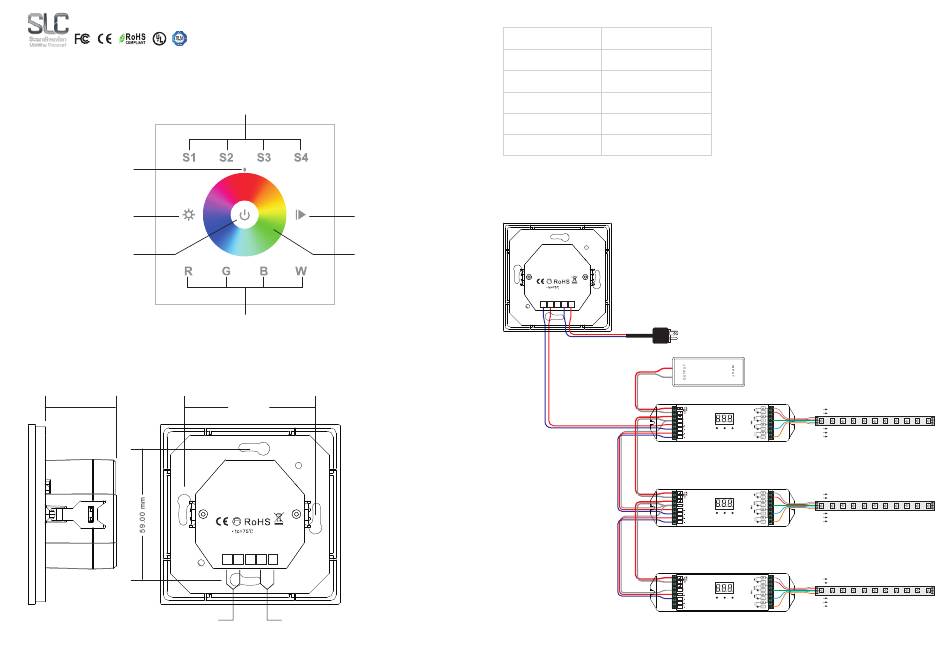

SLC S54001 Instruction Manual

SLC DMX Wall Touch RGB Master 230V
Important: Read All Instructions Prior to Installation
Function introduction
Press and hold down to save color/effect;
Click to recall the saved
LED indicator
Press and hold down to
increase/decrease light
intensity
Click to switch on/off
R/G/B/W 4channels:Click to turn off/on the channel
Press and hold down to increase/decrease light intensity of each channel
31.20 mm
DMX512 signal output
Click to play / pause the
10 built-in effects,
Press and hold down to
speed up/down the
running effects
Touch color wheel, touch to
select R/G/B color
Front side
59.00 mm
DMX512 Controller
DMX signal AC100-240V
output input
D+ D- L N
AC Power input
Back side
Product Data
S54001
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DMX512 Controller
DMX signal AC100-240V
output input
D+ D- L N
Set DMX Address
One DMX master controller can control many DMX Decoders, set all DMX decoders' address as 001.
Note: one DMX Decoder has 4 channels, so it occupies 4 DMX addresses 001, 002, 003, 004.
• Touch sensitive
DMX512 signal
• Glass interface(white & black)
100-240VAC
• Standard DMX512 Signal output
• Control RGBW color
15 mA
• Control 1 zone/area
• Waterproof grade: IP20
0-40°C
8% to 80%
86x86x29.1mm
AC 100-240V
L
V+
12V/24V/36V
N
CV PSU
V-
G
DMX512 Decoder
0-5 0-9 0-9
DMX512 Decoder
0-5 0-9 0-9
DMX512 Decoder
0-5 0-9 0-9
V+ V+
Connect with RGBW LED Strip
R- R-
G- G-
B- B-
W- W-
V+ V+
R- R- Connect with RGBW LED Strip
G- G-
B- B-
W- W-
V+ V+
R- R- Connect with RGBW LED Strip
G- G-
B- B-
W- W-
