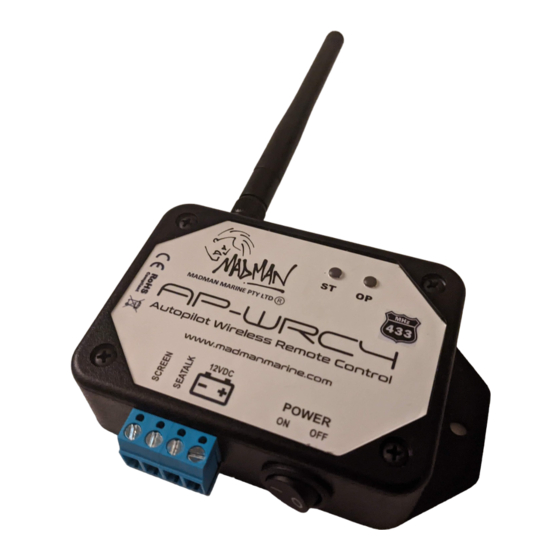

MadMan AP-WRC4 Installation

Assumptions:
•
The EV-100 autopilot installation is, or will be installed, in accordance with the Raymarine
EV-100 installation manual. As a guide, refer to Figure 1 for a typical EV-100 installation.
•
A Raymarine SeaTalk1 to SeaTalk
Raymarine SeaTalk1 to SeaTalk
•
All required SeaTalk1 to SeaTalk
blue backbone cable, are included in the Raymarine E22158 converter kit, which is the recommended
kit to purchase if there is no existing SeaTalk1 to SeaTalk
•
The AP-WRC4 is to be installed close to the SeaTalk1 to SeaTalk
This 12V cable
only required
for ACU100!
Terminator
Steps:
1. Turn off power to the EV-100 and 12V supply cable which supplies the SeaTalk
Prepare the SeaTalk1 to SeaTalk
2.
SeaTalk connector (see Figure 2) and stripping the cable back to expose the red wire, yellow
wire and the screen/shield that surrounds them.
(Optional: apply clear heatshrink over the twisted screen/shield and a larger piece of black heatshrink
over the cable end to make a neat job).
Note yellow
connector on
SeaTalk cable.
(Do not cut!)
EV-100 Evolution Autopilot
ng
converter is, or will be, installed in accordance with the
ng
converter installation manual.
ng
conversion parts are present.
Power
Supply
for
ng
SeaTalk
5-way Connector
To
Drive
Unit
Figure 1 - Typical EV-100 Installation
ng
cable from the E22158 converter kit by cutting off the
Figure 2 - SeaTalk Cable
www.madmanmarine.com
AP-WRC4 Installation
With
ng
converter installed).
ng
EV-1
Controller
Backbone
ACU Power
ACU100
Cut off this
connector.
(All required parts, except for a
converter.
Terminator
ng
backbone.
