Agrimate AF-4000NK-VM User Manual

Thermal aerosol fogger
Hide thumbs

Advertisement

Quick Links

Download this manual

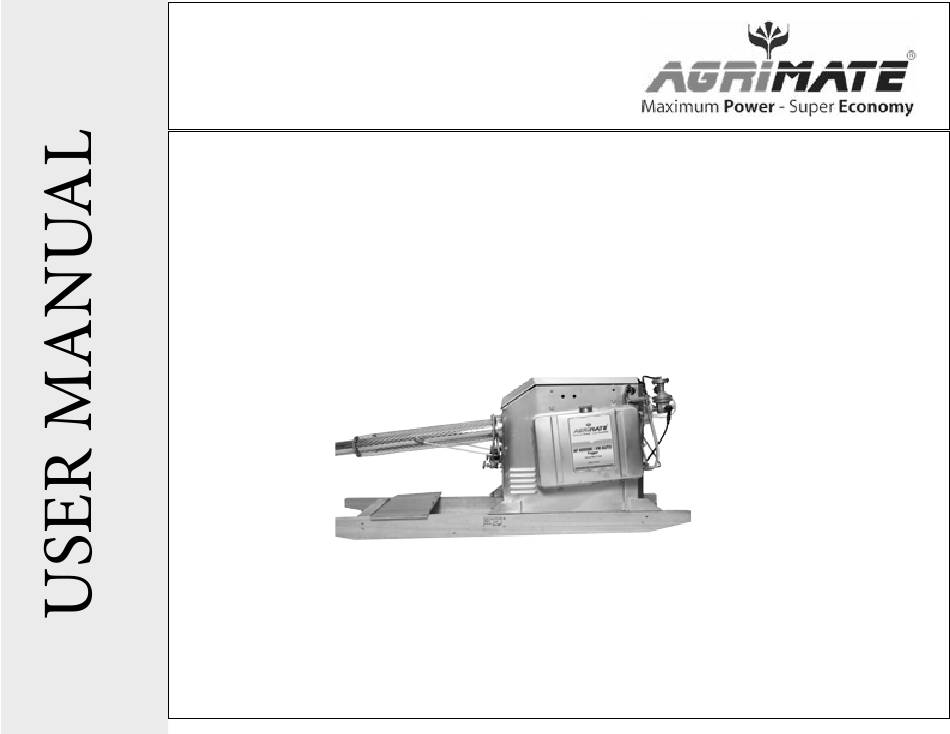

FOGGER
AF-4000NK-VM FOGGER
DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE
WITHOUT NOTICE . BEFORE OPERATING THIS MACHIN PLEASE READ THE INSTRUCTIONS MANUAL CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF-4000NK-VM and is the answer not in the manual?

Questions and answers

Related Manuals for Agrimate AF-4000NK-VM

Summary of Contents for Agrimate AF-4000NK-VM

  • Page 1 FOGGER AF-4000NK-VM FOGGER DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE . BEFORE OPERATING THIS MACHIN PLEASE READ THE INSTRUCTIONS MANUAL CAREFULLY...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL AF-4000NK-VM-ISI TYPE THERMAL AEROSOL FOGGER GASOLINE TANK CAPACITY 16 LTR SOLUTION TANK CAPACITY 100LTR FLOW RATE 85L/H PRESSURE IN SOLUTION TANK 0.25BAR PRESSUREIN GASOLINE TANK 0.06BAR SOLUTION TANK MATERIAL STAINLESS STEEL 304L STARTING METHOD REMOTE FUEL CONSUMPTION 3.3L/H...

  • Page 3: How To Use

    This machine has a control box, so the machine can be placed in the back of an open bed truck and operated by a passen- ger in the vehicle. 2. Start-up is simple The 12V DC battery of the truck is used by connecting it to the control box. Then you simply press the start and fuel button at the same time, and the machine will start.
  • Page 4 d. Repeat steps a to c, until it starts. 3. How to spray chemical a. Flip chemical switch up after the machine is started. b. Adjust the spray to the right amount of the chemical by using the chemical adjustment valve. 4.

  • Page 5: How To Check

    A. if there is a banging or coughing sound before machine it shuts itself off. Cause How to Check Solution 1. Gasoline doesn't flow freely due to a It is normal when the gasoline flows evenly Clean the fuel nozzle opening with a thin metal blocked fuel nozzle.
  • Page 6 Cause How to Check Solution To check use soap and water to find where 7. Leaking air from the nipple. the air is leaking from then replace the nip- Replace the nipple ple from which the air is leaking. 8.Insufficient gasoilne or chemical /foreign *Clean the fuel tank cmopletely check out fuel tank materials in the fuel tunk.
  • Page 7 B. When air leaks and makes a puck or when sound and the machine won't start. Possible damge to the thermal pipe. Caheck to see what the damage is by using a flashlight. To correct this problem replace the thermal pipe. C.
  • Page 8 D. You can hear the air pump operating but the machine will not work . ( That means the ignition is not working ) Cause How to check Solution 1.Defective igniter or defective terminal wires. It's normal if a spark occurs when you hold * Replace the igniter the spark plug 3-4 min from the ignition *Make sure terminal contract is firm.
  • Page 9 SPARE PARTS DIAGRAM & PARTS LIST OF AF-4000NK VM FOGGER...
  • Page 10 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AF 4000NK - VM - 01 Fuel tank AF 4000NK - VM - 15 Carburetor(below) AF 4000NK - VM - 02 Fuel tank Cap AF 4000NK - VM - 16 Ignition plug AF 4000NK - VM - 03 Fuel check valve...
  • Page 11 SL NO PART NO DESCRIPTION IMAGES AF4000NK-01 Fuel Tank AF4000NK-02 Fuel Tank Cap AF4000NK-03 Fuel Check Valve AF4000NK-04 Terminal Board AF4000NK-05 Igniter AF4000NK-06 Air Pump / Af- 2000Nk-13 Air Pump...
  • Page 12 SL NO PART NO DESCRIPTION IMAGES AF4000NK-07 Pressure Switch AF4000NK-08 Solenoid Valve AF4000NK-09 Connector (2P) AF4000NK-09 Connector (12P) AF4000NK-10 Air Cooling Pipe #2 AF4000NK-11 Air Cooling Pipe Case AF4000NK-12 air cooling pipe case ring...
  • Page 13 SL NO PART NO DESCRIPTION IMAGES AF4000NK-13 AIR COOLING PIPE #1 AF4000NK-14 Thermal Pipe ( Length 117 Cms ) AF4000NK-15 Carburetor(Below) AF4000NK-16 Ignition Plug AF4000NK-17 Carburetor Gasket AF4000NK-18 Bolt...
  • Page 14 SL NO PART NO DESCRIPTION IMAGES AF4000NK-19 Petal Cone AF4000NK-20 Petal AF4000NK-21 Petal Plate AF4000NK-22 Petal Bullet AF4000NK-23 Carbu retor(Above) AF4000NK-24 Air Nozzle Board...
  • Page 15 SL NO PART NO DESCRIPTION IMAGES AF4000NK-25 Air Nozzle For Carburetor AF4000NK-26 Carburetor Bolt AF4000NK-27 Fuel Nozzle AF4000NK-28 Fuel Valve AF4000NK-29 Tneumatic Adaptor AF4000NK- 30 Hose With Connector...
  • Page 16 SL NO PART NO DESCRIPTION IMAGES AF4000NK-31 Chemical Tank Hose Connector Set Machine Side (Chem- AF4000NK-32 ical Connector Set) AF4000NK-33 Hose Connector For Machine Side (Male) AF4000NK-34 Fuel Pipe ( Left & Right= Set) AF4000NK-35 Fuel Valve AF4000NK-36 Bend Air Pipe...
  • Page 17 SL NO PART NO DESCRIPTION IMAGES AF4000NK-37 Chemical Check Airline AF4000NK-38 Chemical Check Valve AF4000NK-39 Control Box & Cable AF4000NK-40 Pump Air hose AF4000NK-41 Solenoid air hose AF4000NK-42 Air Hose Tjoint...
  • Page 18 SL NO PART NO DESCRIPTION IMAGES AF4000NK-43 Carburetor Hose AF4000NK-44 Air Hose T joint AF4000NK-45 Air breather AF4000NK-46 Air Hose Joint AF4000NK-47 Air Hose small AF4000NK-48 Air Hose T...
  • Page 19 SL NO PART NO DESCRIPTION IMAGES AF4000NK-49 Petrol Tank air hose AF4000NK-50 Diesel metal tube AF4000NK-51 Diesel L -Joint AF4000NK-52 Air Hose long AF4000NK-53 Diesel hose short AF4000NK-54 Diesel hose T-Joint...
  • Page 20 SL NO PART NO DESCRIPTION IMAGES AF4000NK-55 Diesel hose AF4000NK-56 Diesel (=chemical) hose joint AF4000NK-57 O-ring AF4000NK-58 O-ring AF4000NK-59 Petrol control needle AF4000NK-60 Petrol Tank O ring...

  • Page 21: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 22 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 23 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 24 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
  • Page 25 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
