- Page 1 AF 4000NK - VM AUTO Fogger Vehicle Mount Type DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Machine Features

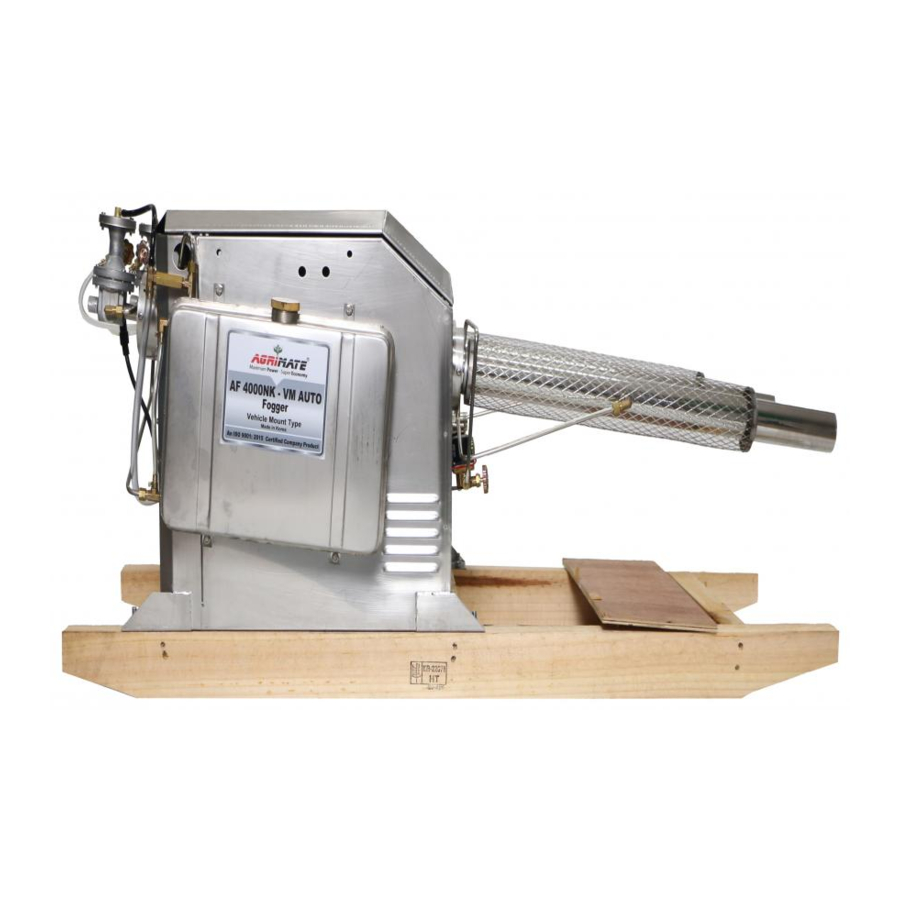

MACHINE FEATURES 1. This machine has a control box, so the machine can be placed in the back of an open bed truck and operated by a passenger in the vehicle. 2. Start-up is simple The 12V DC battery of the truck is used by connecting it to the control box. Then you simply press the start and fuel button at the same time, and the machine will start. - Page 3 3. When the machine is not running, make sure the chemical valve and the fuel valve are closed on the control box because there is possibility of fire. Product Specification Type AF 4000NK - VM AUTO Division TYPE Thermal Aerosol Fog Or U.L.V.
- Page 4 HOW TO CHECK/REPAIR MACHINE IN CASE OF PROBLEMS A. If there is a banging or coughing sound before machine it shuts itself off. Cause How to Check Solution Clean the fuel nozzle opening 1. Gasoline doesn’t It is normal when the gasoline with a thin metal wire.
- Page 5 To check use soap and water 7. Leaking air from the to find where the air is leaking Replace the nipple nipple. from then replace the nipple from which the air is leaking. 8. Insufficient gasoline • Clean the fuel tank or chemical/foreign Check out fuel tank completely...
- Page 6 D. You can hear the air pump operating but the machine will not work. (That means the ignition is not working) Cause How to Check Solution It’s normal if a spark occurs when you 1. Defective igniter or hold the spark plug 3-4min from the •...
- Page 7 DIAGRAM OF AF 4000NK - VM AUTO FOGGER - VEHICLE MOUNT TYPE...
- Page 8 SPARE PARTS OF AF 4000NK - VM AUTO FOGGER - VEHICLE MOUNT TYPE PART NO. PART NAMES AF 4000NK - VM - 1 Fuel tank AF 4000NK - VM - 2 Fuel tank cap AF 4000NK - VM - 3...
-
Page 9: Part Name And Function
PART NAME AND FUNCTION Name of Part Function 1 Fuel Tank Keeps and stores gasoline 2 Fuel Check Valve Keeps air flowing in one direction within the fuel tank 3 Fuel Solenoid Valve Opens and closes fuel aperture 4 Terminal Board Connects the electric wires to the main body of the machine Ignition is created by changing the low voltage into 5 Igniter... -
Page 10: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. - Page 11 CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AF 4000NK - VM AUTO Fogger-Vehicle Mount Type Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 12 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 13 1 2 0 h r s...
- Page 14 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 15 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 16 I m p o r t e d & M a r k e t e d b y :...
