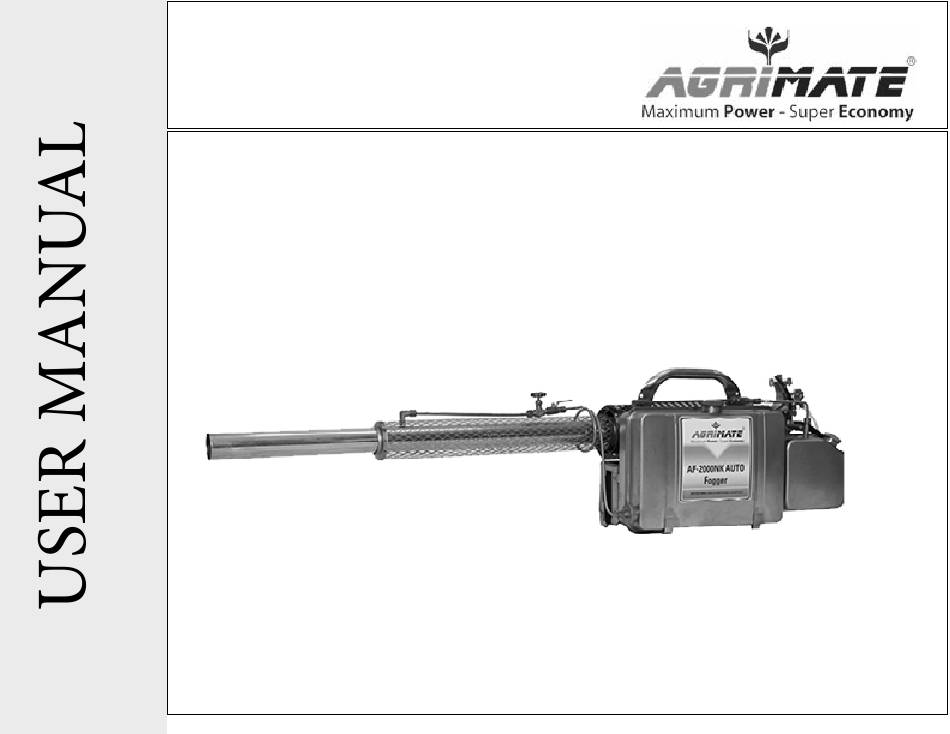

- Page 1 FOGGER AF-2000NK-AUTO-KOREA-2IN1 DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE . BEFORE OPERATING THIS MACHIN PLEASE READ THE INSTRUCTIONS MANUAL CAREFULLY...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL AF-2000NK-AUTO TYPE THERMAL AEROSOL FOGGER GASOLINE TANK CAPACITY 1.8 LTR SOLUTION TANK CAPACITY 8LTR FLOW RATE 40L/H PRESSURE IN SOLUTION TANK 0.25BAR PRESSUREIN GASOLINE TANK 0.06BAR SOLUTION TANK MATERIAL STAINLESS STEEL 304L STARTING METHOD PUSH BUTTON FUEL CONSUMPTION 1.5L/H... -
Page 3: Machine Features
MACHINE FEATURES 1. Simplicity of Operation Air and fuel is automatically mixed in the 12V air pump. So it starts with the simply with the push button. 2. Durability of the Machine. This machine is made almost entirely of Stainless Steel or polyethylene (chemical tank, fuel tank, etc), which prevents corrosion due to chemicals, and fuels 3. - Page 4 clockwise direction and operate the machine by rapidly pressing the start button, which is located beside the automatic/manual switch. If the ma- chine fails to start then you first should close the fuel nozzle and then continually press the start button until you hear a ‘cough’ like sound, which tells you that the carburetor has been cleared of any excess fuel.
- Page 5 A. if there is a banging or coughing sound before machine it shuts itself off. Cause How to Check Solution 1. Gasoline doesn't flow freely due to a It is normal when the gasoline flows evenly Clean the fuel nozzle opening with a thin metal blocked fuel nozzle.
- Page 6 Cause How to Check Solution To check use soap and water to find where 7. Leaking air from the nipple. the air is leaking from then replace the nip- Replace the nipple ple from which the air is leaking. 8.Insufficient gasoilne or chemical /foreign *Clean the fuel tank cmopletely check out fuel tank materials in the fuel tunk.
- Page 7 B. When air leaks and makes a puck or when sound and the machine won't start. Possible damge to the thermal pipe. Caheck to see what the damage is by using a flashlight. To correct this problem replace the thermal pipe. C.
- Page 8 D. You can hear the air pump operating but the machine will not work . ( That means the ignition is not working ) Cause How to check Solution 1.Defective igniter or defective terminal wires. It's normal if a spark occurs when you hold * Replace the igniter the spark plug 3-4 min from the ignition *Make sure terminal contract is firm.
- Page 9 SPARES PART DIAGRAM OF AF-2000NK FOGGER...
- Page 10 SPARES PART LIST OF AF-2000NK FOGGER SL NO PART NO PART NAME SL NO PART NO PART NAME AF-2000NK-01 Chemical Tank AF-2000NK-19 Air Cooling Pipe Case AF-2000NK-02 Fuel Tank AF-2000NK-20 Air Cooling Pipe AF-2000NK-03 Chemical Tank Elbow Nipple AF-2000NK-21 Air Nozzle AF-2000NK-04 Start Button AF-2000NK-22...
- Page 11 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-01 Chemical Tank AF-2000NK-02 Fuel Tank AF-2000NK-03 Chemical Tank Elbow Nipple AF-2000NK-04 Start Button AF-2000NK-05 Fuel Check Valve AF-2000NK-06 Fuel-T Nipple...
- Page 12 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-07 Chemical Check Valve AF-2000NK-08 Chemical Tank Cap AF-2000NK-09 Battery Case AF-2000NK-10 Chemical Valve AF-2000NK-11 Chemical Control Valve AF-2000NK-12 Chemical Nozzle...
- Page 13 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-13 Air Pump AF-2000NK-14 Nk-14 Igniter AF-2000NK-15 Battery - Ats - (12V 2.9Ah) AF-2000NK-16 Battery Charger Jack AF-2000NK-17 Thermal Pipe ( Length 117 Cms ) AF-2000NK-18 Air Cooling Pipe #1...
- Page 14 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-19 Air Cooling Pipe Case AF-2000NK-20 Air Cooling Pipe #2 AF-2000NK-21 Air Nozzle AF-2000NK-22 Air Nozzle Bolt AF-2000NK-23 Air Nozzle Board AF-2000NK-24 Carburetor (Above)
- Page 15 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-25 Fuel Valve AF-2000NK-26 Fuel Nozzle AF-2000NK-27 Carburetor Bolt AF-2000NK-28 Petal Bullet AF-2000NK-29 Petal Plate AF-2000NK-30 Nk-30 Petal...
- Page 16 SPARES PART LIST OF AF-2000NK FOGGER WITH IMAGES SL NO PART NO DESCRIPTION IMAGES AF-2000NK-32 Petal Cone AF-2000NK-32 Carburator Gasket AF-2000NK-33 Petal Bolt AF-2000NK-34 Carburetor (Below) AF-2000NK-35 Spark Plug AF-2000NK-36 Battery Charger...
-
Page 17: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 18 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 19 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 20 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 21 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
