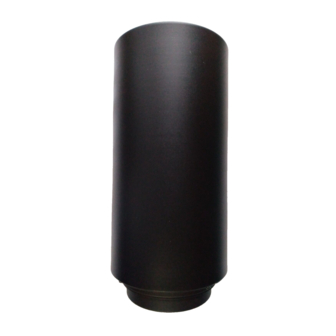

Portfolio LSR6B Installation Instructions Manual

IB520112ML 697916
Installation Instructions – LSR6B / LSSQR6B Commercial
LED Rough-In
Instructions d'installation – DEL commerciale LSR6B /
LSSQR6B brute
Instrucciones de instalación de las luminarias LED de
uso comercial LSR6B y LSSQR6B en áreas ocultas
IMPORTANT: Read carefully before installing fixture.
Retain for future reference.
WARNING
Risk of Electrical Shock! Disconnect power at fuse or
circuit breaker before installing or servicing.
WARNING
Risk of Fire! Do not install insulation within 3 inches
(76 mm) of any part of the luminaire fixture or in a
way that may entrap heat.
WARNING
Installation and servicing to be performed only
by qualified personnel, If not qualified, consult an
electrician.
WARNING
Do not energize the LED Engine until the protective
covering has been removed and the lower trim
properly installed.
N ote: This fixture should be supported by main runners or
other structure that is capable of supporting fixture
weight of 40 Ibs.
SAFETY: When using electrical equipment, basic safety
precautions should always be followed, including the
following:
1. This unit is for surface or pendant mounting only. Do
not use in hazardous locations nor near gas or electric
heaters.
2. Do not use this equipment for other than the intended
use.
3. Install only in accordance with National Electrical Code
and local regulatory agencies' requirements.
Aperture Height
LSR6B 5-11/16" 12-1/8"
LSSQR6B 5-11/16" 11-3/4"
Brand Logo
reversed out of
black
INS # INS # INS #
