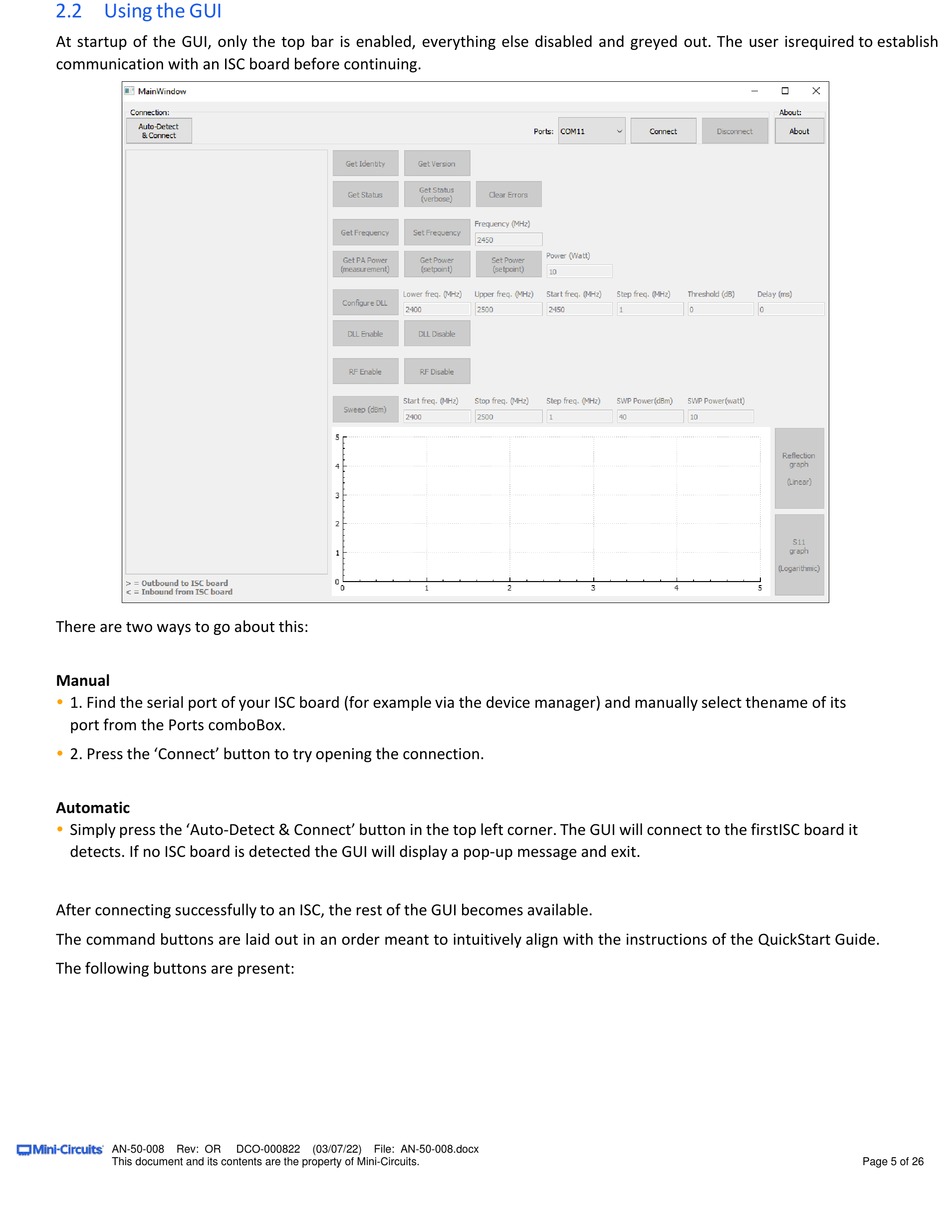

2.2 Using the GUI

At startup of the GUI, only the top bar is enabled, everything else disabled and greyed out. The user is required to establish
communication with an ISC board before continuing.
There are two ways to go about this:
Manual
1. Find the serial port of your ISC board (for example via the device manager) and manually select the name of its

port from the Ports comboBox.
2. Press the 'Connect' button to try opening the connection.

Automatic
Simply press the 'Auto-Detect & Connect' button in the top left corner. The GUI will connect to the first ISC board it

detects. If no ISC board is detected the GUI will display a pop-up message and exit.
After connecting successfully to an ISC, the rest of the GUI becomes available.
The command buttons are laid out in an order meant to intuitively align with the instructions of the Quick Start Guide.
The following buttons are present:
