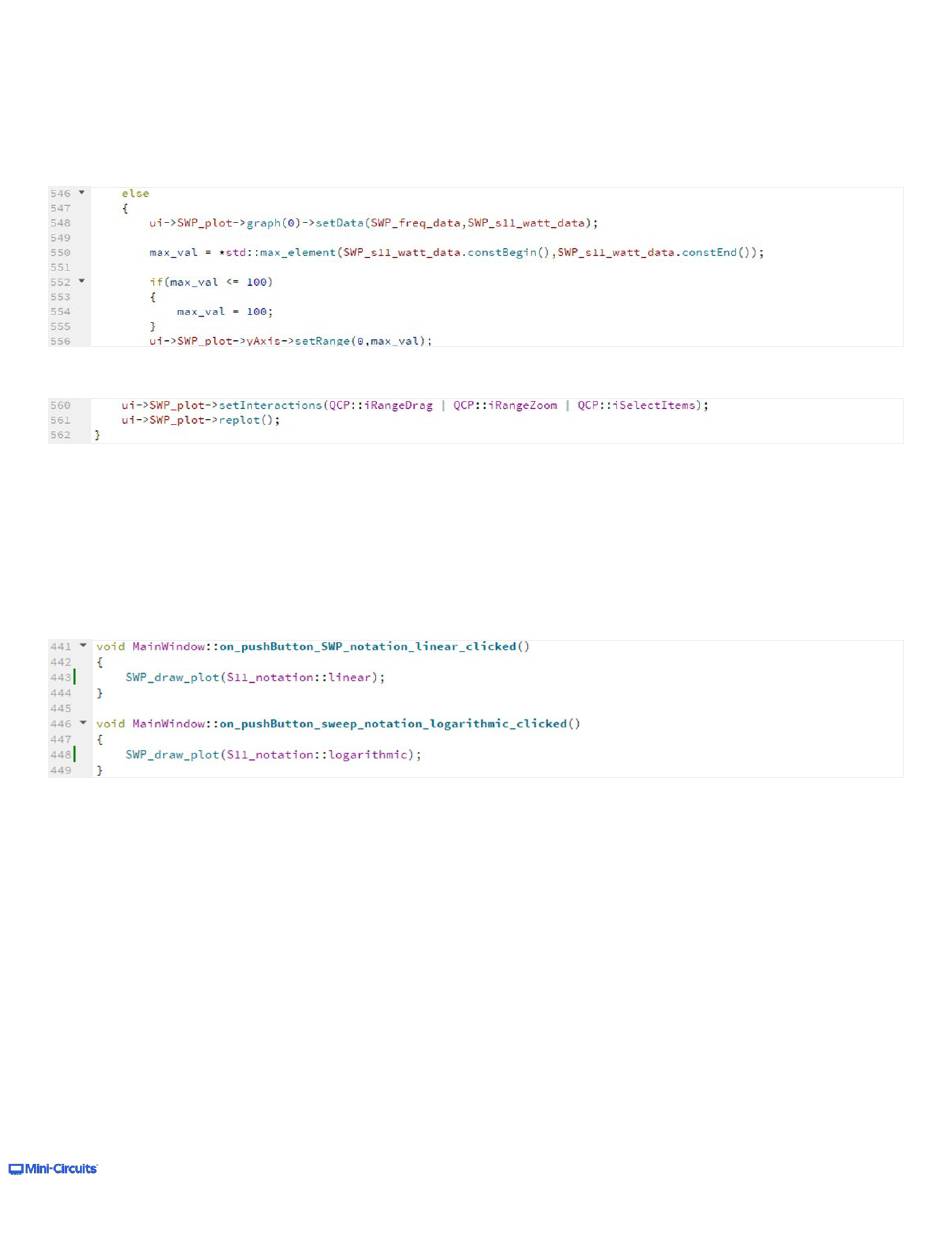

If the notation is linear, the plot instead uses data from the 'SWP_s11_watt_data' QVector.
The largest value from the QVector is stored in 'max_val', though it is capped to 100, as a reflection graph is expected to
at most have total reflection (100%). The visible limits of the plot's Y-axis are set to 0 and 'max_val'.
Finally the interaction permissions for the plot are configured and the plot drawn in the GUI.
3.5.3

Plot notation buttons

Lastly are the two buttons located right of the plotting area.
When either of these is pressed, they activate the 'SWP_draw_plot' function again, with either the linear or logarithmic
notation. SWP_draw_plot re-uses the last known measurements stored in the QVectors to re- draw the plot.
