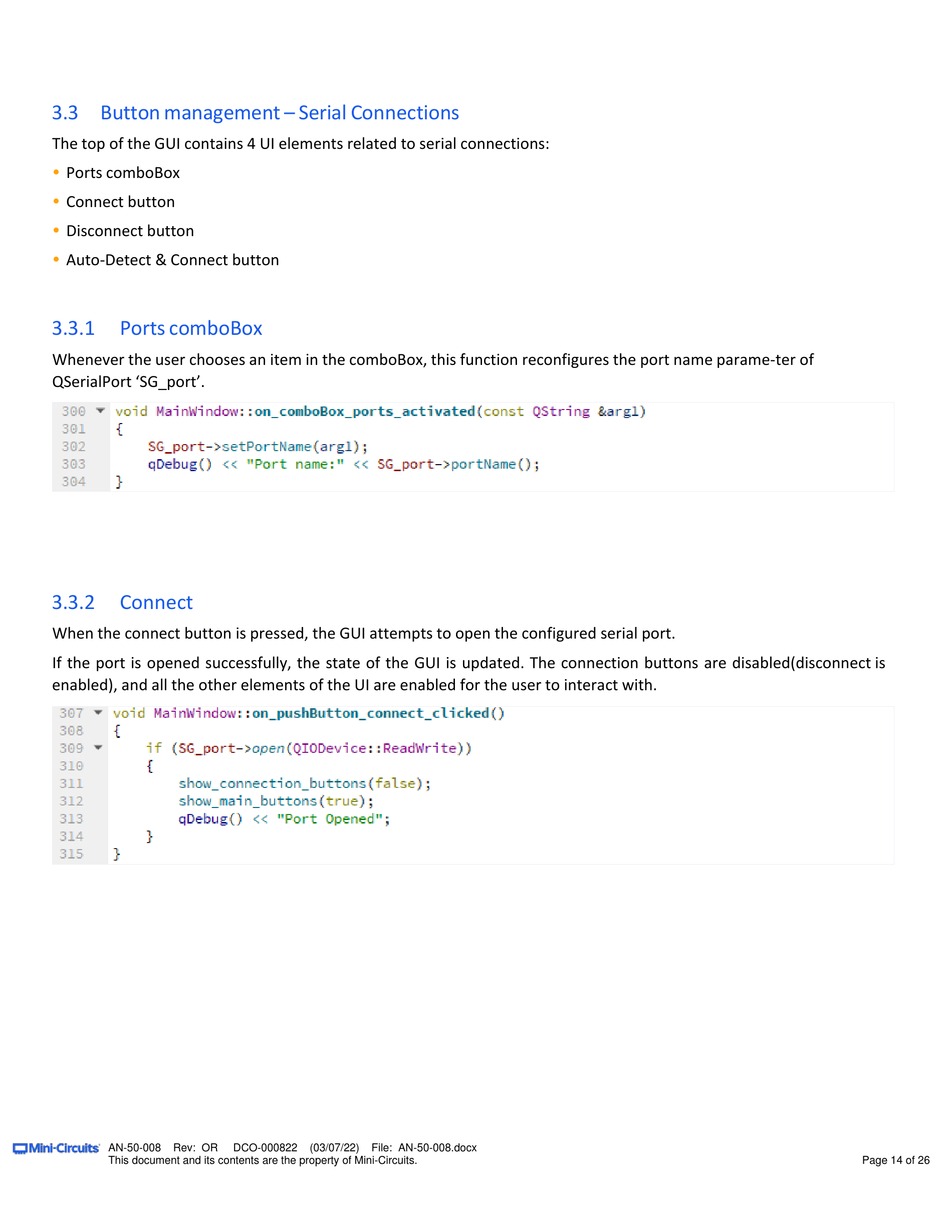

3.3 Button management – Serial Connections
The top of the GUI contains 4 UI elements related to serial connections:

Ports comboBox


Connect button

Disconnect button

Auto-Detect & Connect button

3.3.1 Ports comboBox
Whenever the user chooses an item in the comboBox, this function reconfigures the port name parame- ter of
QSerialPort 'SG_port'.
3.3.2

Connect

When the connect button is pressed, the GUI attempts to open the configured serial port.
If the port is opened successfully, the state of the GUI is updated. The connection buttons are disabled (disconnect is
enabled), and all the other elements of the UI are enabled for the user to interact with.
