Sip/Puff Switch User Guide

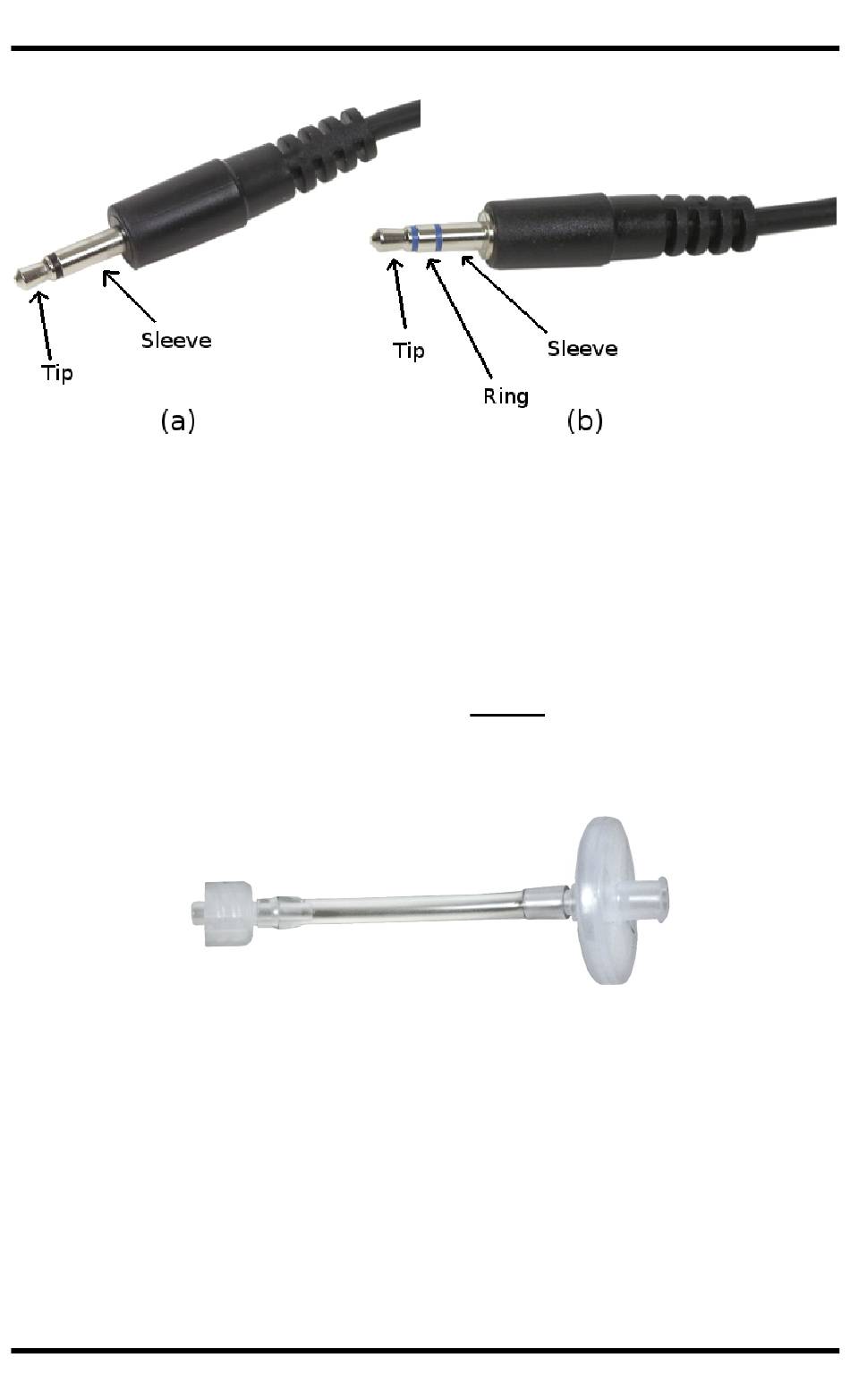

Figure 2 Mating Plugs for Sip/Puff Switch jacks, 1//8-inch (3.5mm). (a) Mono plug has
switched contact on the tip with common contact on the sleeve. (b) Stereo plug has switch
contacts on the tip and ring with common on the sleeve.
The user interface is attached to the Sip/Puff Switch via the 6-foot
tube with special pneumatic connectors at each end. One
connector connects the user interface and the other connects to
the inline filter. The connector on the filter attaches to the Switch.
Simply slide the halves together and gently twist the lock nut.
The pneumatic connector should not be over tightened.
Figure 3 In-Line filter protects the Sip/Puff Switch internal components from moisture. This
filter cannot not be cleaned.
