Summary of Contents for Maxx air HVPF 20 OR

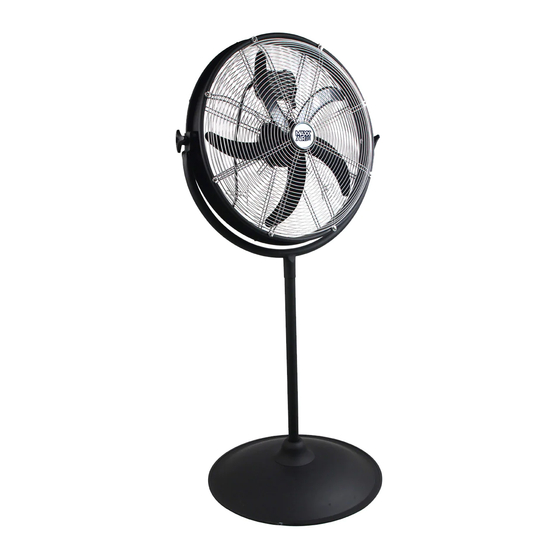

- Page 1 20 IN. OUTDOOR PEDESTAL FAN MODEL #: HVPF 20 OR English Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-433-1626...
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Stand Pole Base... -
Page 3: Hardware Contents
HARDWARE CONTENTS (shown actual size) Plastic Nut Tightener Screw Spring Washer Qty. 2 Qty. 2 Qty. 2 (preassembled) SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-433-1626 WARNING PLEASE READ AND SAVE THESE INSTRUCTIONS. - Page 4 WARNING • THE POWER CORD is equipped with a three-prong, grounded GFCI (Ground Fault Circuit Interrupter) plug that must be inserted into a grounded receptacle or GFCI power outlet. Under no circumstances must the grounding prong be cut off the plug. CAUTION •...
- Page 5 ASSEMBLY INSTRUCTIONS 1. Attach stand pole (B) to the base (C) and secure with 4 screws (BB) and 4 spring washers (CC) Make sure all screws are tightened firmly. HARDWARE USED Screw Spring Washer...
- Page 6 ASSEMBLY INSTRUCTIONS Attach the fan body (A) to the stand pole (B). Align holes on the pole of fan body (A) and attach 2 screws (BB) and 2 spring washers (CC), then tighten the screws (BB) firmly. To adjust air flow up and down, tilt the fan to the desired angle.
-
Page 7: Troubleshooting
OPERATING INSTRUCTIONS 2. ADJUSTING AIR SPEED The fan has three speeds (LOW, MEDIUM and HIGH). Pull the chain of the speed control switch on the back of the unit to adjust air flow to desired speed. CARE AND MAINTENANCE • Unplug from electrical source to clean. - Page 8 VENTAMATIC, LTD. LIMITED WARRANTY This warranty is underwritten by Falco Insurance Company and is extended to the original retail purchaser of this model or, if this unit is purchased and requires installation by a building contractor, to the original owner of the home. No subsequent purchaser of the unit or of a home in which it is installed is entitled to any of the benefits of this warranty.
- Page 9 REPLACEMENT PARTS LIST PART DESCRIPTION PART # Fan Motor 20P-OD-01 Stand Pole 20P-OD-02 Base 20P-OD-03 Fan Blade 20P-OD-04 Speed Switch 20P-OD-05 Power Cord 20P-OD-06 U Arm 20P-OD-07 Drum 20P-OD-08 Rear Grille 20P-OD-09 Front Grille 20P-OD-10 Cover Ring 20P-OD-11 Plastic Tightener 20P-OD-12 TECHNICAL DATA VOLTAGE/FREQUENCY...
