Sharp SMD2440JS Service Manual page 26

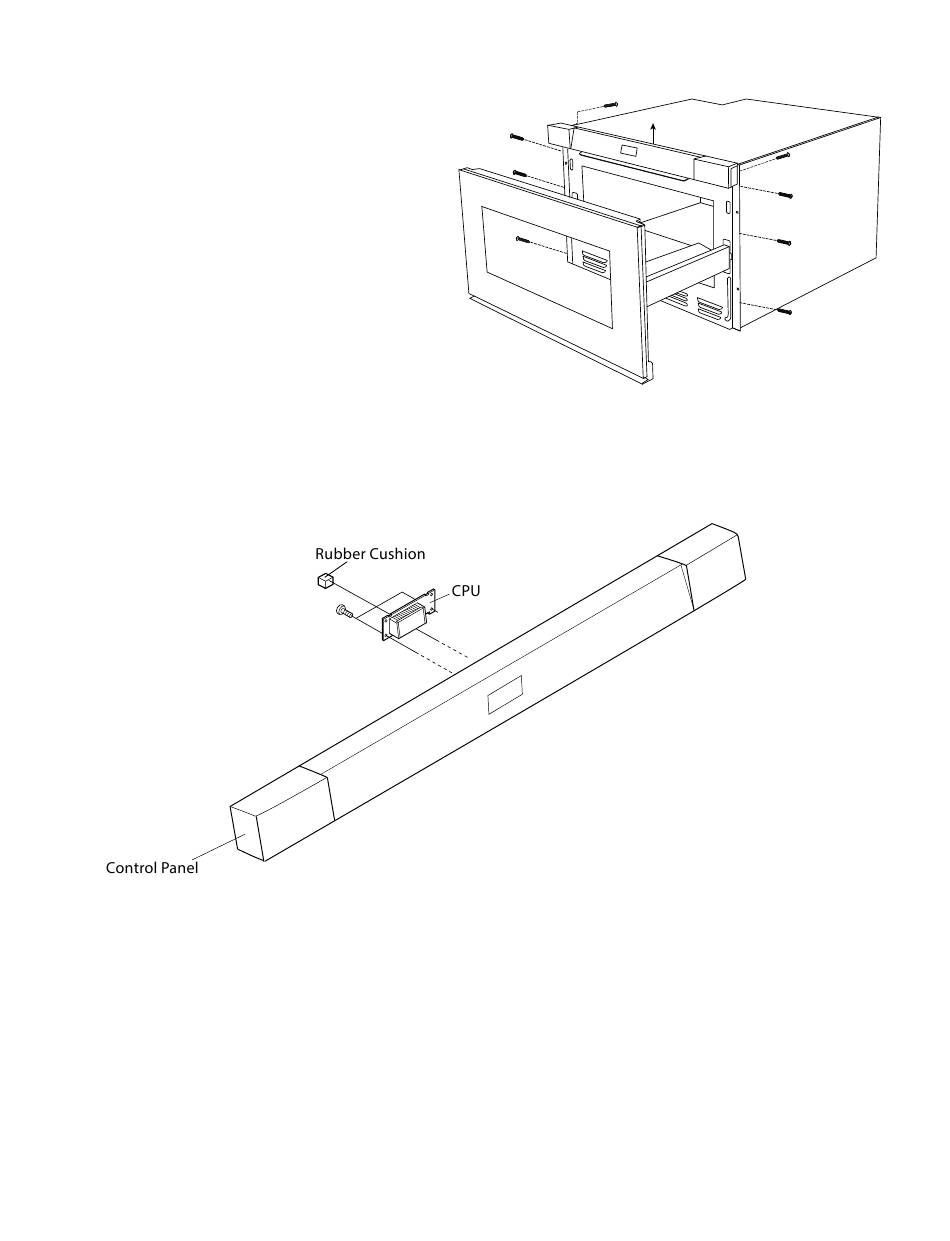

CONTROL PANEL (C/P) REMOVAL
1. Open Door (Fig 3)
2. Remove side angles (Right & Left), (8) screws total.
3. Lift C/P Assy up and tilt down to remove.
4. Careful not to scratch Faceplate and/or C/P,
hold C/P facing down, then unplug Molex Harness
from CPU.
CPU REMOVAL
5. With C/P laying on protected surface remove 4 screws
from CPU and remove board
(Fig 4).
Fig. 4
26
Fig. 3
