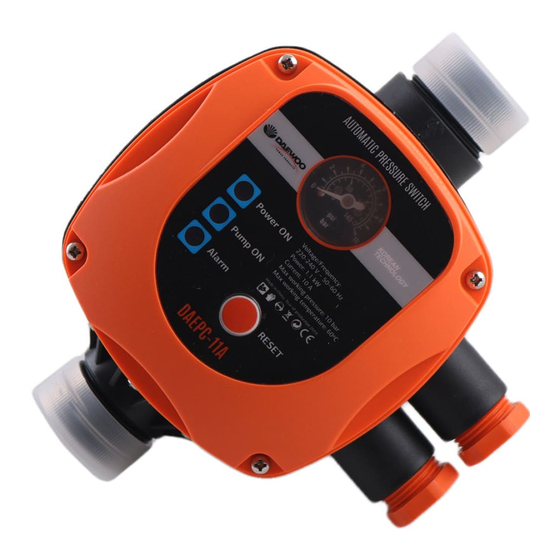

- Page 1 DAEPC-11A Automatic pressure switch USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. INSTRUCTIONS FOR CORRECT UNIT INSTALLATION ..............2 2. WIRING DIAGRAMS FOR CONNECTING THE UNIT TO DIFFERENT KINDS OF PUMP’S MOTORS ..........................3 3. POSSIBLE WORKING DEFECTS ......................3 4. UNIT STARTING AND WORKING ......................4 6. TECHNICAL DATA ..........................4 WARRANTY .............................. -
Page 3: Instructions For Correct Unit Installation
1. INSTRUCTIONS FOR CORRECT UNIT INSTALLATION If the column of water between the pump and the highest tap exceeds 15 mts, the unit cannot be installed directly on the pump, It is advisable to but it has to be raised until the connect the unit outlet column of water between the unit to the system by means... -
Page 4: Wiring Diagrams For Connecting The Unit To Different Kinds Of Pump'smotors
2. WIRING DIAGRAMS FOR CONNECTING THE UNIT TO DIFFERENT KINDS OF PUMP’S MOTORS L1-1-50-60 Hz 220-240V L1-1-50-60 Hz 220-240V L1-1-50-60 Hz 220-240V contactor contactor Wiring diagram for Wiring diagram for connection Wiring diagram for connection connection of single of single-phase 220V pumps of three phase 380V motor -phase 220V pumps over 1.1 kW. -
Page 5: Unit Starting And Working
4. UNIT STARTING AND WORKING WARNING: Never take the electronic board out of the control box. The wiring diagram inside the terminal block will show you how to make correct connection. Wrong connection will destroy the whole electronic circuit. Cable used for connection must be a three-wired one with compulsory grounding end. -
Page 6: Warranty
