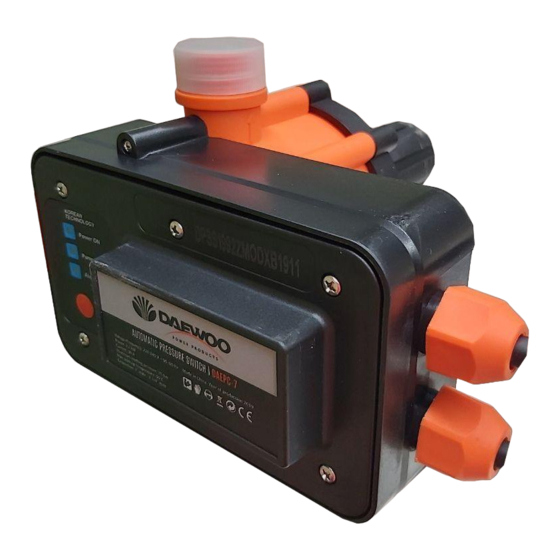

- Page 1 DAEPC-7 Automatic pressure switch USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
- Page 2 INDEX 1. INSTRUCTIONS FOR CORRECT UNIT INSTALLATION ..............2 2. STARTING AND WORKING ........................2 3. WIRING DIAGRAMS FOR CONNECTING THE UNIT TO DIFFERENT KINDS OF PUMP’S MOTORS ..........................3 4. DEFECT DETECTING ..........................5 5. AFTER SALES SERVICE ......................... 5 6.
- Page 3 1. INSTRUCTIONS FOR CORRECT UNIT INSTALLATION The control can be installed directly onthe pump or installed between pump and the first tap. A pressure reducing valve must be installed on the inlet of the control if pump's pressure exceeds 10 bar. No taps can be installed between the pump and the control.
- Page 4 The two nuts for fixing The six screws This part must be lower must be fastened cables must be fastened than the fixing nuts Power Pump FUNCTION The control is programmed to start and stop the pump operations automatically. Its feature of water-shortage protection can protect the pump from being damaged during dry running.
- Page 5 4. DEFECT DETECTING CAUSES DEPENDING CAUSES NOT DEPENDING TYPE OF DEFECT ON THE UNIT ON THE UNIT - The pump does - The electronic card is broken - Voltage failure not start - Pump is jammed - Electric cables inverted (line/motor) - The pump does - The electronic card is broken...
- Page 6 WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 1 year for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed.
- Page 7 Manufactured under license of Daewoo International Corporation, Korea...
