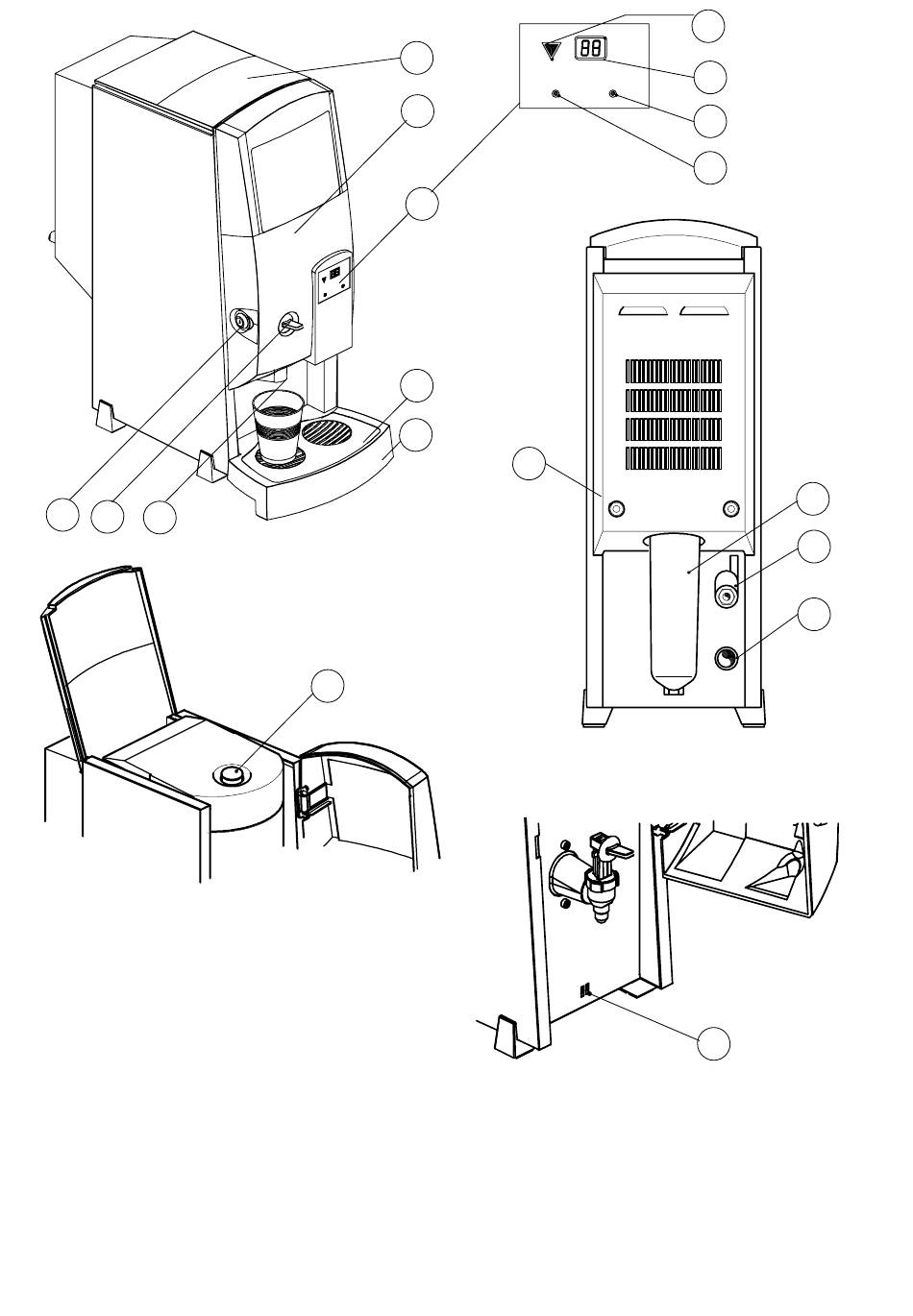

- Page 1 Fig. 1 Principal components and Control organs...
- Page 2 Fig. 2 Dimensions...
- Page 3 Bravilor Bonamat Operating instructions CHILLER Chilled water dispenser 700.403.284B/07–2001 2001 Bravilor Bonamat Bravilor Bonamat Pascalstraat 20 1704 RD Heerhugowaard The Netherlands...
- Page 4 2001 Bravilor Bonamat All rights reserved. No part of this document may be reproduced and/or published by means of print, photoprint, microfilm or any other means without prior written permission from the manufacturer. The foregoing applies also to the figures and/or diagrams contained herein. The information provided in this document is based on general data that we were aware of at the time of publication, relating to constructions, properties of materials and working methods, and this document is therefore subject to modifications.
-
Page 5: Pictograms And Symbols
The following related documents are available: – CHILLER Service Manual: 700.703.Kxx Document code Document codes are composed of two fields: – field 1: document number – field 2: revision date (possibly followed by the revision number). ECopyright Bravilor Bonamat B.V. version... -
Page 6: Service And Technical Support
The conditions of warranty applicable to this machine form part of the terms of delivery. Identification of the device D See fig.3 A. model code B. type number C. serial number D. power E. frequency F. supply voltage Fig. 3 Contents of machine identification plate ECopyright Bravilor Bonamat B.V. version... -
Page 7: Table Of Contents
......... Recommended cleaning fluids and liquid disinfectants ....ECopyright Bravilor Bonamat B.V. version... - Page 8 ............ECopyright Bravilor Bonamat B.V.
- Page 9 ............ECopyright Bravilor Bonamat B.V.
-
Page 10: Safety Regulations And Danger Warnings
In case of doubt, usage implies that which is generally understood from the construction, execution and function of the product. Usage in accordance with the purpose also implies observing the instructions in the operating instructions. ECopyright Bravilor Bonamat B.V. version... -
Page 11: Installation
D If the device is not to be used for a long period of time, break the connection with the electricity supply, shut off the water supply, drain the cold–water reservoir until it is empty and remove the filter. ECopyright Bravilor Bonamat B.V. version... -
Page 12: Maintenance And Correcting Malfunctions
The refrigeration compartment contains refrigerant R134A and may only be processed by a specialized company. This refrigerant is what is called an ”HFK”, which is a replacement product for ”CFK”, but is not harmful to the ozone layer. ECopyright Bravilor Bonamat B.V. VIII version... -
Page 13: Introduction
When the desired temperature appears in the display (fig. 1 , C2) a beaker of chilled water can be dispensed via the draw–off tap as the device is equipped with a discharge system. ECopyright Bravilor Bonamat B.V. version... -
Page 14: Technical Data
Cleaning agent for the exterior: normal, non–abrasive or corrosive detergent. Liquid disinfectants for the cold–water reservoir: HADEX (sodium hypochlorite (NaOCl)). CAUTION! – Before use, first read the instructions on the packaging of the cleaning agent. ECopyright Bravilor Bonamat B.V. version... -
Page 15: Installation
D Connect the device to the water supply system (drinking water) using an easily accessible manually operated tap in order that it is easy to shut off the water supply in the event of a disaster. ECopyright Bravilor Bonamat B.V. version... -
Page 16: Connecting The Drip-Tray To The Drain (Optional)
See Chapter 6. for information on this. – The first time the device is used, it takes approx. 30 minutes before the water has reached the desired temperature. ECopyright Bravilor Bonamat B.V. version... -
Page 17: Everyday Usage
D Place a beaker under the cold–water the electricity supply, shut off the water outlet (fig. 1 , F) and draw off a refreshing supply, remove the filter and throw it beaker of cold water. away. ECopyright Bravilor Bonamat B.V. version... - Page 18 Fig. 5 Cleaning the cold–water reservoir ECopyright Bravilor Bonamat B.V. version...
-
Page 19: Maintenance By Personnel With The Appropriate Authorisation
Before use, first read the instructions for 10. Repeat this two or three times in using the drinking water disinfectant. For succession. example Hadex (sodium hypochlorite). n Wear suitable face protection and safety gloves when working with the disinfectant. ECopyright Bravilor Bonamat B.V. version... -
Page 20: Replacing The Water Filter
– The remaining maintenance activities are in order that the filter is more easily strictly reserved for specially trained accessible. service engineers for cold–water systems. 6. Rotate the filter to be replaced through 90° in a clockwise direction (fig.6 C). ECopyright Bravilor Bonamat B.V. version... -
Page 21: Programming
P3 appears in the display. P3 = Optional setting of the 5 (= 5000 l) 4. Release the buttons very briefly and then Filter–replacement indicator press them again until P4 appears in the display. ECopyright Bravilor Bonamat B.V. version... -
Page 22: P1 Temperature Setting
3. Now press button (fig.7 C3) to set a higher number of litres or button (fig.7 C4) to set a lower number of litres after which the filter must be replaced. ECopyright Bravilor Bonamat B.V. version... -
Page 23: Correcting Malfunctions
Replace the filter, see § 5.3.2. alongside the the filter has elapsed (6 months). display (fig. 1 , The set number of litres of P2 Replace the filter, see § 5.3.2. C1) is flashing. has been reached, see § 6.1.2.3. ECopyright Bravilor Bonamat B.V. version... -
Page 24: Display Messages And Their Meaning
Pull the plug from the socket for several (Water is probably under the device.) seconds and then put it into the The system is switched off automatically. socket again. If necessary, contact an authorised service engineer. ECopyright Bravilor Bonamat B.V. version... -
Page 25: Ordering Consumables And Accessories
– model code, type and serial number of the device (see the identification label) – name of the item in question – order number – quantity Consumables Name Order number Quantity water filter 7.211.007.101 Accessories Name Order number Quantity drip–tray + grille 7.270.101.101 funnel 7.094.000.101 water–connection hose 6.000.205.050 ECopyright Bravilor Bonamat B.V. version...
