  • Page 1 Chiller...

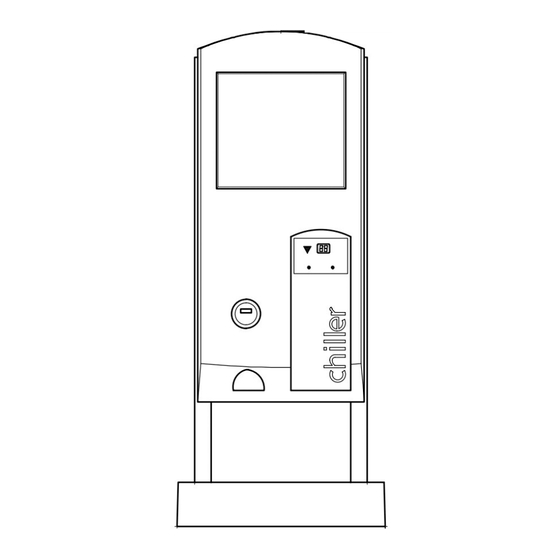

  • Page 2 Fig. 1 Principal components and Control organs...
  • Page 3 Fig. 2 Dimensions...

  • Page 4: Operating Instructions

    Bravilor[ Bonamat[ Operating instructions CHILLER Chilled water dispenser 700.403.353C/07−2006 W 2006 Bravilor[ Bonamat[ Bravilor Bonamat Pascalstraat 20 1704 RD Heerhugowaard The Netherlands...
  • Page 5 W 2006 Bravilor[ Bonamat[ All rights reserved. No part of this document may be reproduced and/or published by means of print, photoprint, microfilm or any other means without prior written permission from the manufacturer. The foregoing applies also to the figures and/or diagrams contained herein. The information provided in this document is based on general data that we were aware of at the time of publication, relating to constructions, properties of materials and working methods, and this document is therefore subject to modifications.

  • Page 6: Pictograms And Symbols

    Related documents The following related documents are available: − Warnings, safety regulations and information concerning the protection of the environment: :700.403.347 − Chiller maintenance manual :700.703.Kxx Document code Document codes are composed of two fields: − field 1: document number −...

  • Page 7: Service And Technical Support

    The conditions of warranty applicable to this machine form part of the terms of delivery. Identification of the device D See fig.3 A. model code B. type number C. serial number D. power E. frequency supply voltage Fig. 3 Contents of machine identification plate version ECopyright Bravilor Bonamat B.V.

  • Page 8: Table Of Contents

    ............version ECopyright Bravilor Bonamat B.V.
  • Page 9 ............version ECopyright Bravilor Bonamat B.V.

  • Page 10: Introduction

    (drinking water) with the aid of the plug (fig. 1 , J) and the water−connection The CHILLER−002 is a cold−water device, hose supplied (fig. 1 , K). An electrically operated specially designed for all who enjoy drinking a tap then regulates the water supply.

  • Page 11: Technical Data

    Cleaning agent for the exterior: normal, non−abrasive or corrosive detergent. Liquid disinfectants for the cold−water reservoir: HADEX (sodium hypochlorite (NaOCl)). CAUTION! − Before use, first read the instructions on the packaging of the cleaning agent. version ECopyright Bravilor Bonamat B.V.

  • Page 12: Installation

    D Wait approx. 30 minutes until the display shows the preset temperature of 6 5C. D The device is then ready for use, see Chapter 4. D Now only remove the plug from the socket for maintenance repairs. ECopyright Bravilor Bonamat B.V. version...

  • Page 13: Everyday Usage

    2. Filter−replacement signalling (C1) The red triangle lights up and flashes to indicate that the filter must be replaced. The filter−replacement procedure (to be conducted only by personnel with the appropriate authorization) is described in Section 5.3. version ECopyright Bravilor Bonamat B.V.
  • Page 14 " 10 min. HADEX Ä Ä Ä 25 ml Ä Ä Ä 600 ml/ 20 C " 80 ml "10 min. "10 min. "30 min. Fig. 5 Cleaning the cold−water reservoir ECopyright Bravilor Bonamat B.V. version...

  • Page 15: Maintenance By Specially Autorized Personnel

    For cleaning agent also work inside the tap. example, Hadex (sodium hypochlorite). 16. Wait until the temperature has dropped to 6 5C. 17. Pull the plug out of the socket again. version ECopyright Bravilor Bonamat B.V.
  • Page 16 (fig. 1 , C4) and keep it pressed for about 5 seconds until the indicator lamp (fig. 1 , C1) extinguishes. The counter has now been reset to zero again. The machine is now ready for use. ECopyright Bravilor Bonamat B.V. version...

  • Page 17: Programming

    − Before programming, establish which values are to be set for P1 and P3. To this end, read the following text to find out about various possible settings. version ECopyright Bravilor Bonamat B.V.

  • Page 18: P2 Displaying The Number Of Litres Drawn Off

    3 = 3.000 litres 4 = 4.000 litres 5 = 5.000 litres 6 = 6.000 litres 7 = 7.000 litres 8 = 8.000 litres 9 = 9.000 litres 10 = 10.000 litres The default factory setting is 5. ECopyright Bravilor Bonamat B.V. version...

  • Page 19: Correcting Malfunctions

    (6 months). display (fig. 1 , C1) 1 C1) The set number of litres of P2 has Replace the filter, see § 5.3. is flashing. been reached, see § 6.1.2.3. version ECopyright Bravilor Bonamat B.V.

  • Page 20: Display Messages And Their Meaning

    5. from the reservoir. Check this via the filler opening (fig. 1 , M.). Re−install the Chiller as is outlined in § 3.2 to § 3.2.2. Never use a hairdryer or anything similar to defrost the Chiller.

  • Page 21: Ordering Consumables And Accessories

    − model code, type and serial number of the device (see the identification label) − name of the item in question − order number − quantity Consumables Name Order number Quantity water filter 7.211.008.101 Accessories Name Quantity Order number drip−tray + grille 7.274.101.101 water−connection hose 6.000.205.050 version ECopyright Bravilor Bonamat B.V.
  • Page 22 COFFEE BREWING MACHINES MACHINES A CAFE KAFFEEBRUEHMASCHINEN KOFFIEZETAPPARATEN E 07-200...
