Summary of Contents for Carp Royal DUKE PRO
- Page 1 More intelligent remote-controlled bait boats, start here!

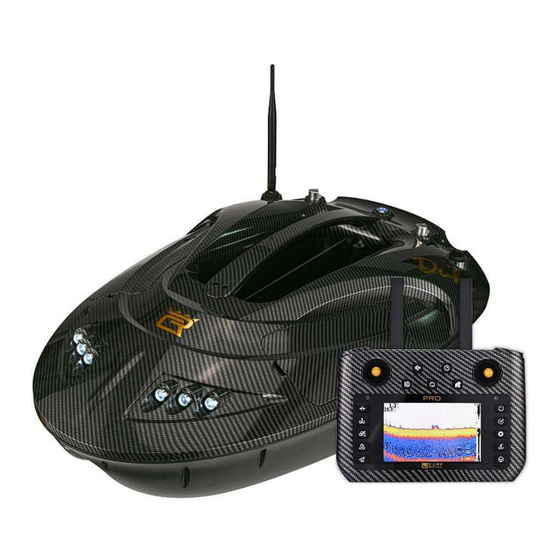

- Page 2 User Manual Intelligent Remote Control Bait Boat DUKE Please read this instruction carefully before using product and keept it well...
-
Page 3: Table Of Contents
CATALOGUE 1.Product Composition ..................1.1 Packaging Content ..........................1.2 Part Name ..........................1.2.1 The Boar introduction .......................................... 1.2.2 Remote control button introduction ……................... 1.2.3 Introduction oft he operation interface ..................13 1.2.4 Multifunction power converter connector 2. Main Functional Features of the Product ..............3. - Page 4 5. Specific Operation ....................5.1 Selection of the locations field ............................................5.2 Delete of location field ..................... 5.3 Single spot navigation operation ......................5.4 Path navigation operation ......................... 5.5 The compass calibration 5.6 The joystick calibration ......................... 27 5.7 Channel matching .......................... 27 5.8 Bait hopper operation ........................
- Page 5 Page .
-
Page 6: Product Composition
PRODUCT COMPOSITION 1.Packaging Content Boat ×1 Handle ×1 Remote Control ×1 Manual ×1 Antenna×1 Supply Battery Boat Power ×2 Multifunctional power Remote control Charger ×1 M4 screw ×1 chargingcable (type-c) ×1 Converter ×1 Page . -
Page 7: Part Name
PRODUCT COMPOSITION PRODUCT CO 2.Part Name (1) The boat introduction LED head lights Battery box Handle Bait hopper Hook release Boat control antenna Power switch Page . -
Page 8: Remote Control Button Introduction
USER MANUAL (2) Remote control button introduction 5.Switch 2.Boat control joystick 1.Menu joystick 7.Home set 3.Light 4.Mute 6.Speed 13.Switch on/off 8.Bait Release 14.Confirm 9.Hook 10.Fish finder 15.Setting 11.Navigation 16.Return to the “HOME” spot 12.GO 17.Autopilot Page . - Page 9 Menu joystick：For control confirm the option of menu setting page; in the navigation page, plan routing, press the confirmation at center spot Boat control joystick：Control the movement of the bait boat Light： Control the light of the bait boat and the backlight of the screen press once to switch on the boat lights， ；...
- Page 10 USER MANUAL Hook： Single press to open the left hook, press twice to open the right hook; hooks reset automatically by 1 second; you can press this button to set the automatically of this spot to auto when some spot is selected in the navigation page;...
-
Page 11: Introduction Oft He Operation Interface
(3) Introduction of the operation interface Page . - Page 12 Wireless connection signal： Indicates wireless communication signal strength； Speaker：Displays the status of the speaker, switch on/off; for the warning tones. Speed indication：There are three operational modes of bait boat means low speed, shows standard, displays high speed; Test mode：When the test mode is selected in the boat type, is displayed here.
- Page 13 Number of GPS satellite：Shows the number of GPS satellites; Number of NASS2 Satellite Shows the number of satellites has been searched by another satellite system we chose; ： Compass angle of bait boat It shows the electronic compass angle of the bait boat, it shows the direction of boat in ：...
- Page 14 USER MANUAL Boat battery voltage Displays the voltage of the boat battery; ： Atmospheric pressure value Shows the atmospheric pressure value at the current position; ： Depth value Shows the depth of the current position of the boat; ： Depth unit Displays the current water depth, meter or feet;...
- Page 15 NAVIGATION PAGE Page .
- Page 16 USER MANUAL Current location field：To display the current location field, you can use the switch button to select the current location field, and then select the appropriate location field by the menu joystick; Home spot：The gray indicates that home spot has not been set, it will turns green when the home spot has been set, and red flashing indicates the navigation to the home spot ;...
-
Page 17: Multifunction Power Converter Connector
(4) Multifunction power converter Tx60 boat Battery Charging TX60 boat battery charging socket ： connect to boat battery charging cable; USB interface ： 2 standard interface with 5V DC USB, which can be charging the mobile phone and other devices; DC2.5 charger socket ：... -
Page 18: Basic Operation
There is a safety protection system, when the boat in low power or weak signal, it can automatically navigate to return to the home spot; When the propeller stuck, or the abnormal engine causes the working current to increase, the circuit has a protection unit, which can cut off the output of the engine to protect the circuit board cannot be burned;... -
Page 19: Compass Calibration
Compass calibration ： Put the boat into the water, push the Joystick to launch the boat 2-3 meters from shore, you need to calibrate the compass at the beginning when you first time using, calibration method see 4.1 “compass calibration”; Set the home spot ：... -
Page 20: Menu Instructions
MENU INSTRUCTIONS 1.Basic setting Joystick calibration Press the setting button to enter the setting page, and ： select "joystick calibration", then perform the joystick calibration at the center spot at first, do not shake the jo -ystick in this time; then move the maximum calibration of the joystick along the clockwise maximum range, return to the main interface after the calibration. - Page 21 Bait hopper mode ： We have two selections for the hopper opening, which are “single hopper”and “double hopper”； It will open the left side by pressing the button one time and open right side by pressing the button twice, if you choose “single hopper”...
-
Page 22: Advanced Settings
2.Advanced Settings Boat type： Here you can select which components your boat has installed, and you can also enter the test mode. With our DUKE PRO we install all components, so "all in" is the right choice. Dual-mode satellite selection ：... - Page 23 Compass angle programming ： When the electronic compass and the actual geomagnetic angle has obvious deviation, we can compensate the electronic compass, compensation angle from -18 degrees- +18 degrees, when the bait boat is not straight or navigation arc, use compass calibration first, after multiple calibration compass, the geomagnetic angle is still a deviation, to use the compass angle programming Software version ：...
-
Page 24: Sonar Setting
USER MANUAL 3.Sonar Setting How sonar works: Sonar technology is based on sound waves. The system uses sonar to locate and define structure, bottom contour and composition, as well depth directly below the transducer. The transducer sends a sound wave signal and determines distance by measuring the time between the transmission of the sound wave and when the sound wave is reflected off... - Page 25 HOW TO SET UP SONAR MENU How to setup sonar menu The “setting” botton is used to access the menu system. When you press the “setting” button once, the menu system immediately appears on the display. The menu system has three tabs: “basic setup”, “advance” and “sonar setup”, you can press the “setting”...
- Page 26 USER MANUAL Depth cursor ： Settings: “On”, “Off” The depth cursor consists of a horizontal line with a digital depth box on the right side. the numbers inside the box show the depth of the cursor. You can move the cursor to any location on the screen, letting you pinspot the depth of a target.
-
Page 27: Specific Operation
SPECIFIC OPERATION Selection of the locations field ： The bait boat can store six groups (A \ B \ C \ D \ E \ F) of different spots, each group of locations field has 40 spots and a home spot, select “current location field” box, then use the joystick to choose a location field you want, normally, we can set different lakes for different location groups, find out location field information when we get the same place to fishing, convenient for our bait operation. -
Page 28: Path Navigation Operation
4) Automatically of the spot In the “location spot area“ , each spot that has been stored as location spot, can set the location spot need to perform automatically, when you choose an attribute in a position spot (such as release hook), the bait boat navigation to this position spot will perform the corresponding operation (bait boat navigation to the position spot, will perform release hook action automatically). - Page 29 3) Path navigation operation Enter the navigation page, use the switch button to select the correct location field, and then switch to the “path planning” area, use the left joystick to choose the spot to add into the path, then press the confirmation button to choose, the selected path spots on the right of remote control.
-
Page 30: The Compass Calibration
USER MANUAL For example ： We select the stored location spots 1,3,5,6, the automatically of spot 1 is “bait” and “hook”, the action attributes of spot 3 is “bait” and “back”, the automatically of spot 5 is “bait” and “hook”, the automatically of spot 6 is “bait”+“back”, then 1、3、 5、6 this four path spots appear in the selected path spots area on the right, we press the “go”... -
Page 31: The Joystick Calibration
Note ： Phe compass calibration do not need be used， unless： The bait boat has been using in fi rst time； The bait boat had been never use in long time； The direction of the bait boat incorrect； The joystick calibration ：... -
Page 32: Bait Hopper Operation
USER MANUAL Note ： The channel matching was successfully between the remote control and the boat in the factory. the channel should be matched if the remote control and the boat do not communicate or there is similar frequency signal interference near the operation only. -
Page 33: Safety Precautions
SAFETY PRECAUTIONS Low power automatic return ： When the battery is low, the buzzer of the remote control will alarm and the boat will return to the home spot automatically; No signal automatic return ： When the connection signal is lost, the buzzer of the remote control will alarm after 30 seconds,the boat will return to the location that can be operated through the remote control;... -
Page 34: Attentions
ATTENTIONS 1. For your safety to use, do not use non-original power supply batteries, do not charge the remote control or boat battery with the non-original charger; 2. Charging the battery, please do not proceed in a closed room, do not charge in a wet environment, no flammable and explosive items near the battery, do not use other items to cover the charging battery;... -
Page 35: Product Technical Indicators
PRODUCT TECHNICAL INDICATORS DUKE PRO BAIT BOAT PARAMETERS Boat Material ABS+PC Hull size: 679mm×439mm×258mm 5.8KG Hull weight（excl.battery） Battery weight(11.1V10AH Lithium battery×2) 1.34KG 1.66KG Battery weight(11.1V20AH Lithium battery×2) Hull type Twin-hull, twin-propelle,twin-engine Standard11.1 /10AH×2，Optional20AH×2 Lithium Battery Bait hopper Qty Bait Hopper Capacity... - Page 36 All in One Remote Control Remote control size 212.5mm*149.5mm*50mm Remote control weight 670g 5” 24 bit TFT Color display V800xH480 with High brightness Display specifi cation Frequency 2.4 GHZ Distance 500m Battery capacity 10400mAH Satellite Positioning System Satellite positioning system GPS/Beidou/Glonass/Galileo Navigation Satellite System ＜...
