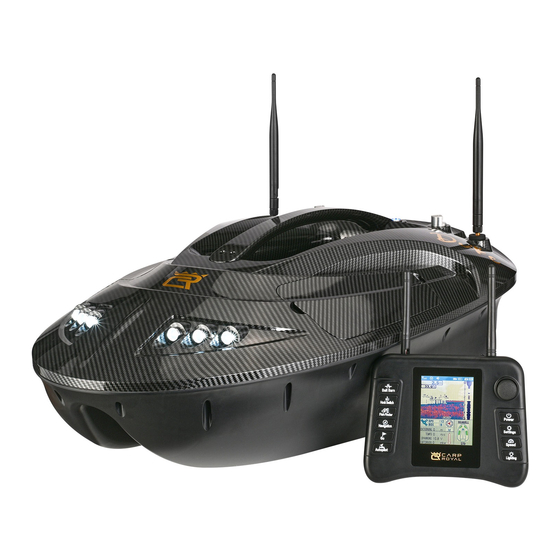

Carp Royal Duke Manual

Bait boat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Manuals
Duke Bait Boat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duke and is the answer not in the manual?

Questions and answers

Related Manuals for Carp Royal Duke

Summary of Contents for Carp Royal Duke

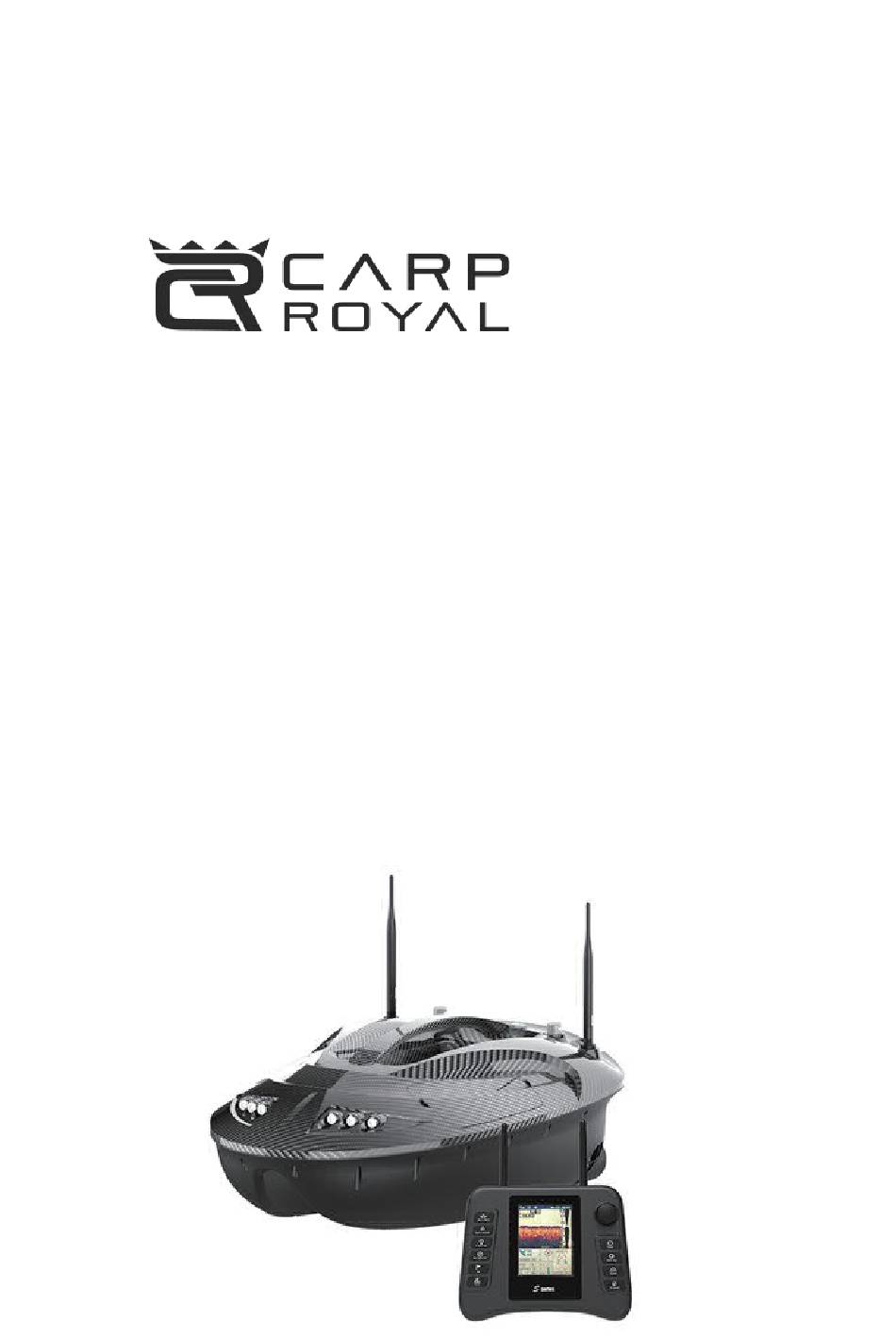

  • Page 1 Manuals Duke Bait Boat...

  • Page 2: Table Of Contents

    Contents: 1.Product Composition 1.1Package content 1.2 Component introduction Hull Introduction 1.2.1 1.2.2 Remote Control Introduction Introduction to the operation interface 1.2.3 1.2.3.1 Home page 1.2.3.2 Navigation page Multi-function power adapter: 1.2.4 Main features of the product 3.Product type classification 4.Basic operation 4.1 Operation to prepare 4.2 Compass Calibration 4.3 Set the starting point...
  • Page 3 Rocker calibration 5.4 Boat Control Channel Matching 5.5 Sonar Channel Matching 5.6 Bait hopper operation 5.7 Hook operation 6.Security measures 6.1 Automatic return in low-power situation 6.2 Automatic return with no signal 7. Fish Finder How Sonar Works Display View How to set up sonar menu 8.Precautions 9.Troubleshoot common faults;...

  • Page 4: Product Composition

    1.Product composition 1.Package content Boat × 1, boat handle × 1 (S series), remote control × 1, instructions × 1, boat power battery × 2 (H series is a battery), multi-function power adapter × 1, antenna × 1, charger ×1, remote control charging cable (type-c) ×...

  • Page 5: Remote Control Introduction

    1. Bait hopper 2. Honk hanger 3. Power switch 4. Headlights 5. Battery compartments 6. Handle 7. Sonar signal antenna 8. Boat control antenna 9. Sonar transducer 10. Cover of the motor 11. Tail lights 2) Remote Control...
  • Page 6 1) Rocker: In the home page, it serves as the boat direction control button for manual driving; in the navigation page and setting page, it serves as the selected direction key, the center point pressing is the confirmation button; 2) On/Off: Press and hold the power on, then press and hold the power off; short press as the return button to return to the main interface;...

  • Page 7: Introduction To The Operation Interface

    8) Fish Finder button: press the full screen to display the fish interface; press again to return to the main interface; 9) Navigation page button: Press this button to enter the navigation page, and then press this button to return to the main interface; 10) Go button: On the navigation page, select an already stored point icon, press the “Go”...
  • Page 8 1. Wireless connection signal: indicates the strength of the wireless communication signal between the boat and the remote controller; 2. Current operation mode: There are three operation modes, automatic driving, navigation driving, manual driving; and is consistent with the content of the 17th page;...

  • Page 9: Navigation Page

    6. Water temperature: The unit can be set to Celsius or Fahrenheit in the setup menu. 7. Fish icon: There are three fish-shaped icons, which indicate the size of fish; large, medium and small fish; 8. Water depth gauge: the depth gauge of the water, automatically switches the scale according to the current water depth;...
  • Page 10 1. Home point: H point is used to set the departure point. After the first launch, set the starting point first. After the automatic returning from low battery, no signal to return automatically or want to automatically navigate back, you need to set the starting point information to work normally.

  • Page 11: Multi-Function Power Adapter

    satellite is not positioned; 7. Positioning accuracy: display the positioning accuracy of the dual-mode satellite system; 8. Operation icon: display the meaning of the icons of each point; Multi-function power adapter: 1.TX60boat battery charging socket: connect the boat battery charging cable; 2.USB socket: 2 standard 5V DC USB interfaces, which can be output to the mobile phone and other devices for charging;...

  • Page 12: Product Type Classification

    9) The remote control can display the working status of each part of the boat; 3.Product type classification This product is mainly divided into four models Product model DUKE Advanced Edition √ Electronic compass √ Dual-mode...

  • Page 13: Special Operation

    2. Compass Calibration Put the boat into the water and toggle the Rocker to make the boat 2-3 meters away from the shore. For the first time, please calibrate the boat's compass. For the calibration method, see 4-2 “Compass Calibration”; 3.

  • Page 14: Rocker Calibration

    2. Compass calibration Click the Settings button to enter the settings page, select "Compass Calibration", then the boat starts to rotate in the water. At this time, the electronic compass in the boat starts to calibrate, and the calibration is completed, and the main interface is automatically returned. Note: Only under the circumstance of the first use of the bail boat, or the boat has not been used for a long time, or found that the direction of the boat is not accurate need to generate compass calibration, other times do not need to be calibrated.

  • Page 15: Bait Hopper Operation

    5. Sonar Channel Pairing First turn off the power of the boat, then press the “Settings” button on the remote control to enter the setting page, select one channel in the “Sonar channel” setting, and when the “Channel is Setting”interface appears on the screen, turn on the boat power again. At this time, the boat and the remote control automatically perform channel Pairing.

  • Page 16: Security Measures

    than that on the right. At this time, we can appropriately lower the output power of the motor on the left. 9. Compass Angle compensation This is the use of Angle compensation when the compass Angle is not accurate when debugging software, the latest software has automatic compass compensation function, under normal circumstances to keep closed.

  • Page 17: Fish Finder

    7. Fish Finder 1. How Sonar Works Sonar technology is based on sound waves. The system uses sonar to locate and define structure, bottom contour and composition, as well depth directly below the transducer. The transducer sends a sound wave signal and determines distance by measuring the time between the transmission of the sound wave and when the sound wave is reflected off an object;...

  • Page 18: How To Set Up Sonar Menu

    3.How to set up sonar menu The “setting” botton is used to access the menu system. When you press the “setting” botton once, the menu system immediately appears on the display. The menu system has 3 tabs: "Setup" and "Advance" "Sonar", You can press the “setting” botton to switch between different menu tabs. In each menu tab use the lower or Upper Key of rocker to select a specific menu item, and use the Left or Right Key of rocker to change a menu setting, then press the Power botton to return to the homepage...
  • Page 19 suspended objects such as trotlines, turtles, submerged floats, air bubbles, etc. D) Depth Cursor Settings: "On", "Off" The depth cursor consists of a horizontal line with a digital depth box on the right side. The numbers inside the box show the depth of the cursor. You can move the cursor to any location on the screen, letting you pinpoint the depth of a target.

  • Page 20: Precautions

    K) Noise Rejection Settings: "Off", "High", "Medium", "Low" The Noise Rejection system built into the sonar unit that constantly evaluates the effects of boat speed, water conditions and interference. This automatic feature gives you the best display possible under most conditions. If you have high noise levels, try using the "High"...
  • Page 21 The remote control has no antenna Check if the boat antenna is signal connected. connected. There matching Rematch the channel channel with the boat Remote control signals are Near channel is interfering Go to the settings menu and sometimes disappeared or reselect a channel to match not controlled Unable to navigate...

  • Page 22: Technical Indicators Of Products

    10.Technical Indicators of Products Boat Material ABS+PC Hull size: 679mm×439mm×258mm Hull weight excl.battery 5.8KG Battery weight(12V6AH Lead acid 3.8KG battery×2) Battery weight(11.1V10AH 1.34KG Lithium battery×2) Battery weight(11.1V20AH 1.66KG Lithium battery×2) Hull type Twin-hull, twin-propelle,twin-engine Lithium ion battery Standard11.1 /10AH×2 Optional20AH×2 Bait hopper Qty Bait Hopper Capacity Hook qty...
  • Page 23 Turning Radius 0.5M All in One Remote Control Remote control size 200mm*136mm*46mm Remote control weight 480g 3.5" 18 bit TFT Color display V320xH240 with Display specification white LED front light Superb viewing in direct at sun Radio Frequency 2,4GHZ / 868MHz Distance of remote control 500m+ Distance of Sonar signal...
  • Page 24 Please check with the manufacturer before disposing of electronic parts or batteries. He will take them back and will be happy to help and advise you. You will find this symbol on batteries containing harmful substances: Carp Royal Tel.: 0049 (0) 5308 9350481 German Tactical GT GmbH Web: www.carp-royal.de...
