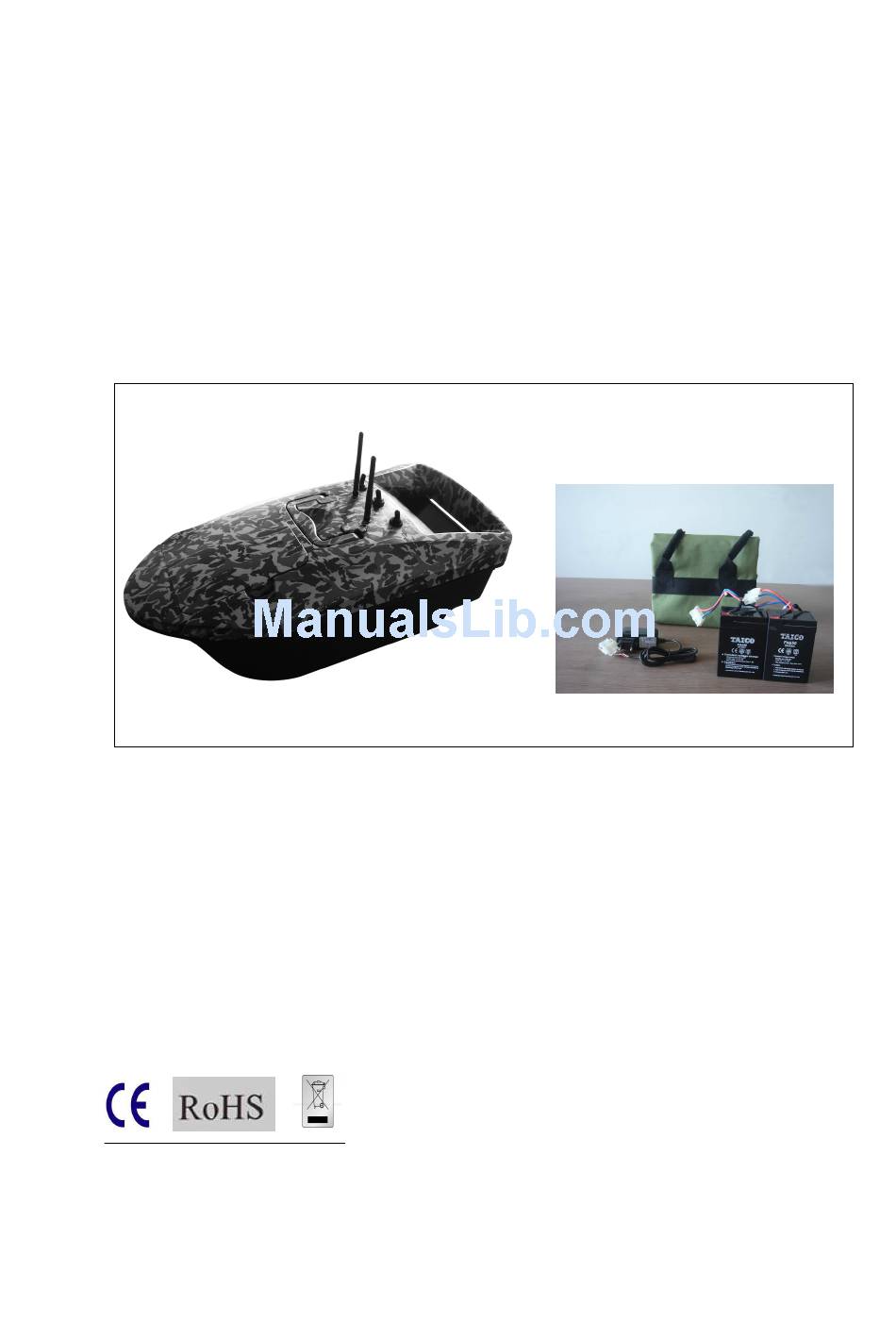

- Page 1 User’s Manual Remote Controlled Bait Boat Product Type (EARL) ---Pictures are for reference ONLY...
-
Page 2: Table Of Contents
Contents IMPORTANT NOTES………………………………………………………………………………..>> P1 PACKING INFORMATION ……………………………...…………………………………….……>> P2 MODEL LIST……………………...…………………………………………………………….……>> P3 TECHNICAL SPECIFICATION ………………………………………...……………………...……>> P3 STRUCTURE ILLUSTRATION……………………………………………………….………..……>> P4 FUNCTION INSTRUCTION……………………………………………. …………….……….……>> P6 REMOTE CONTROL………………………………………………………………….………..……>> P7 USING DIRECTION……………………………………………………………….….……..….……>> P8 BATTERY CHARGING………………………………………………………………….…………...>> P10 SAFETY NOTES...………………………………………………………………….……….…..……>> P11 TROUBLE SHOOTING……………………………………………………………….…………..>> P12... -
Page 3: Important Notes
You must charge up your accumulators to full at the first step before using. Insufficient power may result your boat could not control back. Normally, our remote controller has been set OK before leaving Carp Royal, any damage caused to the Remote Control by your improper using or blind setting is on your account. -
Page 4: Packing Information
Optional facilities: Sonar Fish-finder (E), Carry Bag. Technical Specification Product Name Remote Controlled Bait Boat – EARL Type Main Battery: 6V/5A (2 lead accumulators), or 7.4V/6A (2 lithium batteries as option) Power Supply Battery of Remote Controller: (9.6-12V) /8pcs “AA” Alkaline Battery (or 11.1V/1800MA, 1 lithium battery as option) -
Page 5: Structure Illustration
Structure Illustration 【 【 【 【 Upper Hull】 】 】 】 1. Main Switch 2. Main Switch of Fish-finder 3. Light Switch 4. Carrying Handle 5. Window Cover 6. Bait Hopper Flap 7. Antenna of R.C. Receiver 8. Antenna of Fish-finder 9. -
Page 6: Function Instruction
Function Instruction 1. Main Switch: controls the power supply of the boat. 2. Main Switch of Fish-finder (optional): controls the power supply of fish-finder controller. 3. Light Switch: controls ON/OFF of the lights. 4. Carrying Handle: helps to carry the boat easily to wherever you want. 5. -
Page 7: Remote Control
Remote Control 【 【 【 【 AD-1202 R.C.】 】 】 】 Antenna Carrying Handle Rotary Control (Channel 4, Bait Tank) Left Control Stick (Channel 2, Motor) Right Control Stick (Channel 1, Rudder) Trim for Stick Trim for Stick (Channel 2) (NOT Use) Trim for Stick Trim for Stick... -
Page 8: Using Direction
Attention: Normally, Remote Control has been set OK before leaving Carp Royal, any damage caused to the Remote Control by your improper using or blind setting is on your account. Using Direction Attention: Before you use the boat, * We advise you keeping the shipping box of the boat in case you may return it for repairing. -
Page 9: Battery Charging
Attention: a. Powers should be turned ON in this order: R.C. Transmitter → Main Switch → Light Switch (→Fish-finder Controller → Fish-finder Displayer). Otherwise, product may be out of control, control mixing or damaged. b. Powers are connected correctly and firmly, right placed and sufficient powered. c. -
Page 10: Safety Notes
Attention: when the LED monitor on battery charger turns green, the battery is full. Then, disconnect the batteries, and install them separately in the boat (See P8). (Optional) Fish-finder Manual: separately attached. Safety Notes Battery: 12 hours for the first charging and 8-10 hours after that. When charging, LED monitor on the battery charger turning in RED indicates that battery is in charging, GREEN that battery is charged OK. -
Page 11: Trouble Shooting
To ensure a normal use of our product, we suggest you settle some simple faults according to directions of this manual. For faults that you can not settle by yourself, please contact Carp Royal in time and with full data required. - Page 12 Hinweise zur Batterieentsorgung Im Zusammenhang mit dem Vertrieb von Batterien oder mit der Lieferung von Geräten, die Batterien enthalten, ist der Verkäufer verpflichtet, Sie auf Folgendes hinzuweisen: Sie sind zur Rückgabe gebrauchter Batterien als Endnutzer gesetzlich verpflichtet. Sie können Batterien nach Gebrauch an den Verkäufer oder in den dafür vorgesehenen Rücknahmestellen (z.B. in Kommunalen Sammelstellen oder im Handel) unentgeltlich zurückgeben.
- Page 13 Für Ihre Fragen stehen wir gerne zur Verfügung. Carp Royal Ludgeristrasse 10 38442 Wolfsburg www.carp-royal.de info@carp-royal.de...
Need help?
Do you have a question about the Remote Controlled Bait Boat and is the answer not in the manual?
Questions and answers
When I push the knob forward for some reason the boat don’t go forward but if I put it in reverse it works or if I move to left it starts going round but doesn’t work other way not sure what happening
The issue could be caused by a fault in the receiver or a problem with the wiring. Specifically:
1. Poor wire connection: Check and re-connect wires. Ensure wire numbers match those on the receiver and plug metal sides face the smaller number.
2. Receiver fault: Replace the receiver and perform code matching.
3. Speed controller fault: Exchange the speed controller if still not resolved.
Check each step one by one to identify the fault.
This answer is automatically generated
