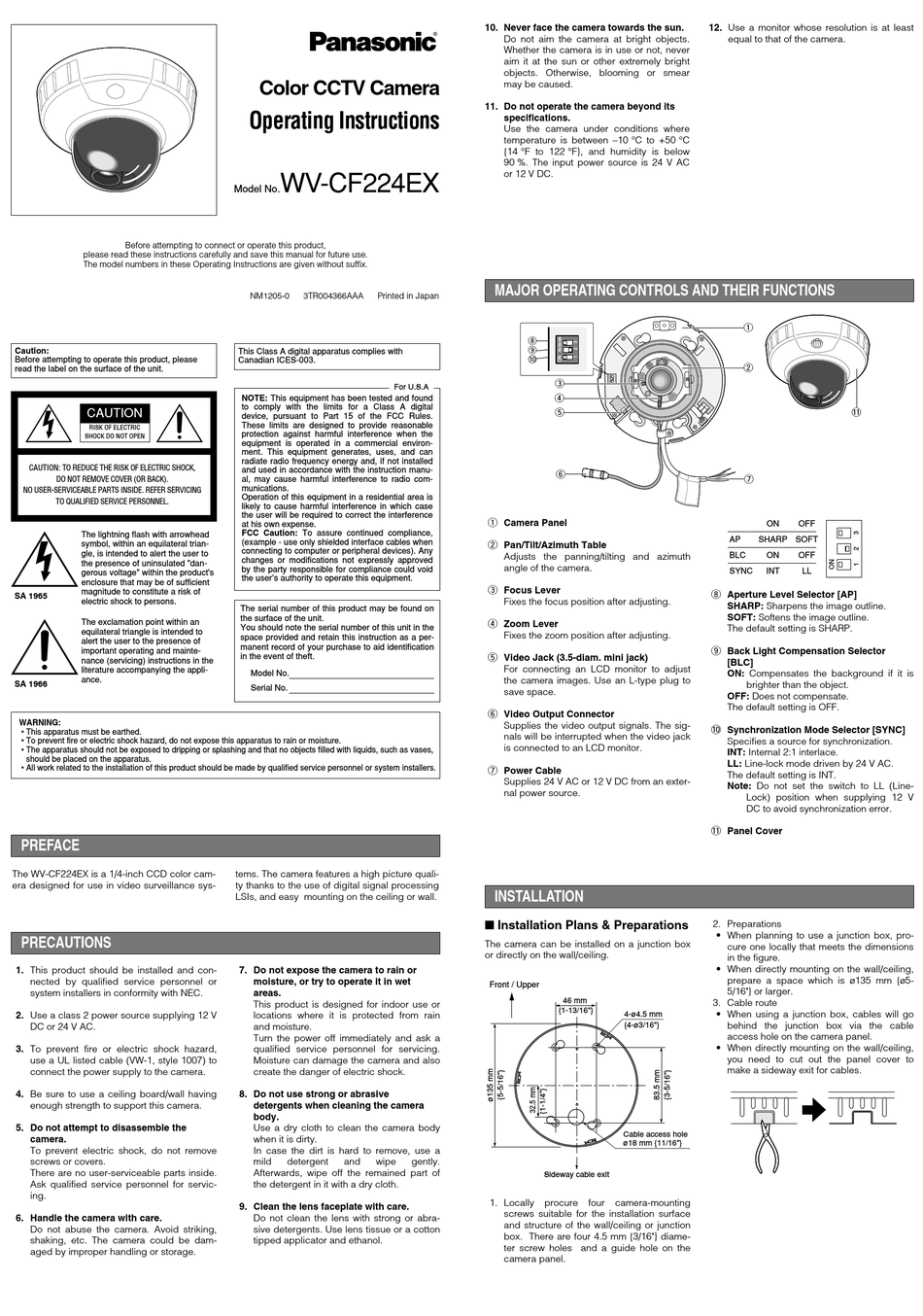

Panasonic WV-CF224EX Operating Instructions

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model numbers in these Operating Instructions are given without suffix.
Caution:
Before attempting to operate this product, please
read the label on the surface of the unit.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral trian-
gle, is intended to alert the user to
the presence of uninsulated "dan-
gerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of
SA 1965
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte-
nance (servicing) instructions in the
literature accompanying the appli-
ance.
SA 1966
WARNING:
• This apparatus must be earthed.
• To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture.
• The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
should be placed on the apparatus.
• All work related to the installation of this product should be made by qualified service personnel or system installers.
PREFACE
The WV-CF224EX is a 1/4-inch CCD color cam-
era designed for use in video surveillance sys-
PRECAUTIONS
1. This product should be installed and con-
nected by qualified service personnel or
system installers in conformity with NEC.
2. Use a class 2 power source supplying 12 V
DC or 24 V AC.
3. To prevent fire or electric shock hazard,
use a UL listed cable (VW-1, style 1007) to
connect the power supply to the camera.
4. Be sure to use a ceiling board/wall having
enough strength to support this camera.
5. Do not attempt to disassemble the
camera.
To prevent electric shock, do not remove
screws or covers.
There are no user-serviceable parts inside.
Ask qualified service personnel for servic-
ing.
6. Handle the camera with care.
Do not abuse the camera. Avoid striking,
shaking, etc. The camera could be dam-
aged by improper handling or storage.
Color CCTV Camera

Operating Instructions

WV-CF224EX
Model No.
NM1205-0 3TR004366AAA Printed in Japan
This Class A digital apparatus complies with
Canadian ICES-003.
For U.S.A
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed
and used in accordance with the instruction manu-
al, may cause harmful interference to radio com-
munications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case
the user will be required to correct the interference
at his own expense.
FCC Caution: To assure continued compliance,
(example - use only shielded interface cables when
connecting to computer or peripheral devices). Any
changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate this equipment.
The serial number of this product may be found on
the surface of the unit.
You should note the serial number of this unit in the
space provided and retain this instruction as a per-
manent record of your purchase to aid identification
in the event of theft.
Model No.
Serial No.
tems. The camera features a high picture quali-
ty thanks to the use of digital signal processing
LSIs, and easy mounting on the ceiling or wall.
7. Do not expose the camera to rain or
moisture, or try to operate it in wet
areas.
This product is designed for indoor use or
locations where it is protected from rain
and moisture.
Turn the power off immediately and ask a
qualified service personnel for servicing.
Moisture can damage the camera and also
create the danger of electric shock.
8. Do not use strong or abrasive
detergents when cleaning the camera
body.
Use a dry cloth to clean the camera body
when it is dirty.
In case the dirt is hard to remove, use a
mild detergent and wipe
Afterwards, wipe off the remained part of
the detergent in it with a dry cloth.
9. Clean the lens faceplate with care.
Do not clean the lens with strong or abra-
sive detergents. Use lens tissue or a cotton
tipped applicator and ethanol.
10. Never face the camera towards the sun.
Do not aim the camera at bright objects.
Whether the camera is in use or not, never
aim it at the sun or other extremely bright
objects. Otherwise, blooming or smear
may be caused.
11. Do not operate the camera beyond its
specifications.
Use the camera under conditions where
temperature is between –10 °C to +50 °C
{14 °F to 122 °F}, and humidity is below
90 %. The input power source is 24 V AC
or 12 V DC.
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
i
o
!0
e
r
t
y
q Camera Panel
w Pan/Tilt/Azimuth Table
Adjusts the panning/tilting and azimuth
angle of the camera.
e Focus Lever
Fixes the focus position after adjusting.
r Zoom Lever
Fixes the zoom position after adjusting.
t Video Jack (3.5-diam. mini jack)
For connecting an LCD monitor to adjust
the camera images. Use an L-type plug to
save space.
y Video Output Connector
Supplies the video output signals. The sig-
nals will be interrupted when the video jack
is connected to an LCD monitor.
u Power Cable
Supplies 24 V AC or 12 V DC from an exter-
nal power source.
INSTALLATION
I Installation Plans & Preparations
The camera can be installed on a junction box
or directly on the wall/ceiling.
Front / Upper
46 mm
{1-13/16"}
gently.
Sideway cable exit
1. Locally procure
screws suitable for the installation surface
and structure of the wall/ceiling or junction
box. There are four 4.5 mm {3/16"} diame-
ter screw holes and a guide hole on the
camera panel.
12. Use a monitor whose resolution is at least
equal to that of the camera.
q
w
u
AP SHARP SOFT
BLC
SYNC
i Aperture Level Selector [AP]
SHARP: Sharpens the image outline.
SOFT: Softens the image outline.
The default setting is SHARP.
o Back Light Compensation Selector
[BLC]
ON: Compensates the background if it is
brighter than the object.
OFF: Does not compensate.
The default setting is OFF.
!0 Synchronization Mode Selector [SYNC]
Specifies a source for synchronization.
INT: Internal 2:1 interlace.
LL: Line-lock mode driven by 24 V AC.
The default setting is INT.
Note: Do not set the switch to LL (Line-
Lock) position when supplying 12 V
DC to avoid synchronization error.
!1 Panel Cover
2. Preparations
• When planning to use a junction box, pro-
cure one locally that meets the dimensions
in the figure.
• When directly mounting on the wall/ceiling,
prepare a space which is ø135 mm {ø5-
5/16"} or larger.
3. Cable route
4-ø4.5 mm • When using a junction box, cables will go
{4-ø3/16"} behind the junction box via the cable
access hole on the camera panel.
• When directly mounting on the wall/ceiling,
you need to cut out the panel cover to
make a sideway exit for cables.
Cable access hole
ø18 mm {11/16"}
four camera-mounting
!1
ON OFF
ON OFF
INT LL
