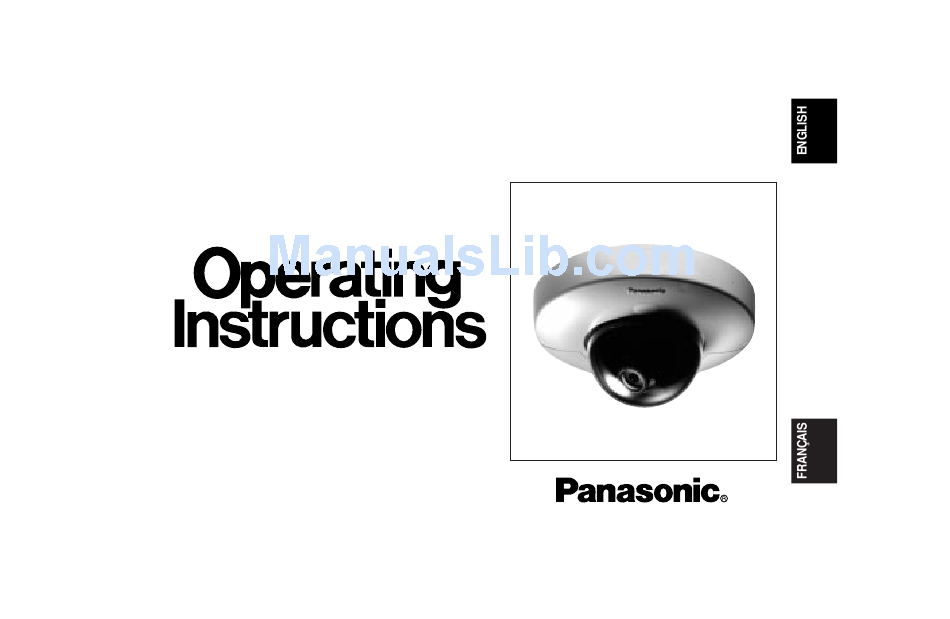

Color CCTV Camera
WV-CF202
CCTV Camera
WV-BF102
Before attempting to connect or operate this product,
please read these instructions completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-BF102 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic WV-BF102

  • Page 1 Color CCTV Camera WV-CF202 CCTV Camera WV-BF102 Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PER- SONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous...
  • Page 3: Table Of Contents

    CONTENTS PREFACE ... 2 FEATURES ... 2 PRECAUTIONS ... 3 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ... 4 CONNECTION ... 6 INSTALLATION ... 8 ADJUSTMENT ... 14 PREVENTION OF BLOOMING AND SMEAR ... 17 SPECIFICATIONS ... 18 STANDARD ACCESSORIES ... 20 OPTIONAL ACCESSORIES ...
  • Page 4: Preface

    PREFACE Panasonic’s WV-CF202/WV-BF102 CCTV camera is designed for advanced video surveillance with a new concept, mini-dome shape, and introduces a new level of the high picture quality and high resolution through the use of a 1/4-inch interline transfer CCD image sen-...
  • Page 5: Precautions

    PRECAUTIONS 1. Do not attempt to disassemble the camera. To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside. Ask a qualified service person for servicing. 2. Handle the camera with care. Do not abuse the camera. Avoid striking, shaking, etc.
  • Page 6: Major Operating Controls And Their Functions

    MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS...
  • Page 7 q DC Power Input Connector This connector is for connecting the 12V DC power supply cable. w Video Output Connector This connector is for connecting with the VIDEO IN connector of the monitor. e Cable Exit Pass the cables through this concave when installing on the ceiling/wall.
  • Page 8: Connection

    CONNECTION Precaution: The following connections should be made by qualified service personnel or system installers. 12V DC Video Output Cable Coaxial Cable Plug To Video IN (CAMERA IN) BNC Plug...
  • Page 9 • Power supply connection Recommended wire gauge sizes for 12 V DC line. Copper wire size (AWG) (0.22mm (0.33mm (0.52mm (0.83mm Length of Cable (ft) (Approx.) Accessory Connector Information Pin No. Power Source Cable Color Ground Black DC 12V White How to assemble the cable with the accessory connector Strip back the cable jacket approx.
  • Page 10: Installation

    INSTALLATION Important Notices: • The following installation should be made by quali- fied service personnel or system installers and should confirm to all local codes. • Be sure to use a ceiling board having enough strength to support this camera. Mounting the camera when you can make a hole for the cables on the ceiling/wall.
  • Page 11 2. Open the panel cover by using a tool, such as a 3. Pass the cables through the cable hole. screwdriver ( ).
  • Page 12 Note: Before fixing with the screws, confirm the direction of the camera by checking the posi- tion of the logo “Panasonic” on the camera cover. “Panasonic” logo indicates the front (when installed on the ceiling)/upper (when installed on the wall) direction of the camera.
  • Page 13 8. Attach the rubber cap into the camera mounting Front/Upper screw hole on the camera cover. 7. Close the panel cover. Make sure the panel cover is closed properly and firmly. -11-...
  • Page 14 Mounting the camera when you can not make a hole for the cables on the ceiling/wall. When you can not make a hole for the cables on the ceiling/wall where the camera to be installed, proceed as follows; 1. When you can not make a hole in the ceiling/wall to pass the cables through, cut and remove the plas- tic part to make the concave for cables.
  • Page 15 7. Mount the camera onto the ceiling/wall by fixing with the mounting screws. Note: Before fixing with the screws, confirm the direction of the camera by checking the posi- tion of the logo “Panasonic” on the camera cover. “Panasonic” logo indicates the front (when installed on the ceiling)/upper (when installed on the wall) direction of the camera.
  • Page 16: Adjustment

    ADJUSTMENT 1. Panning 1. Remove the dome cover from the camera. Hold here 2. Adjust the direction of the camera head by moving the panning table. To move the panning table, hold the camera head holder and move it. The panning table can be moved ±90°...
  • Page 17 2. Tilting the camera The tilting angle is shown below. The camera head can be tilted ±75° (150°). Vertical Angular of View Notes: • Uprighting the picture on the monitor screen is usu- ally necessary. (Refer to 3. Uprighting the picture.) •...
  • Page 18 4. Focusing After adjusting the focus, attach the dome cover to the camera body. Adjust the focus by turning the lens. Dome Cover -16-...
  • Page 19: Prevention Of Blooming And Smear

    PREVENTION OF BLOOMING AND SMEAR When the camera is aimed at a bright light, such as a Smear spotlight, or a surface that reflects bright light, smear Bright object or blooming may appear. Therefore, the camera should be operated carefully in the vicinity of extremely bright objects to avoid smear or blooming.
  • Page 20: Specifications

    SPECIFICATIONS WV-CF202 Pick-up Device: 512 (H) x 492 (V) pixels, Interline Transfer CCD Scanning Area: 3.16 (H) x 2.72 (V) mm (Equivalent to scanning area of 1/4” pick-up tube) Scanning: 525 lines / 60 fields / 30 frames Horizontal: 15.734 kHz Vertical: 59.94 Hz Synchronization:...
  • Page 21 WV-BF102 Pick-up Device: 512 (H) x 492 (V) pixels, Interline Transfer CCD Scanning Area: 3.16 (H) x 2.72 (V) mm (Equivalent to scanning area of 1/4” pick-up tube) Scanning: 525 lines / 60 fields / 30 frames Horizontal: 15.734 kHz Vertical: 59.94 Hz...
  • Page 22: Standard Accessories

    STANDARD ACCESSORIES Rubber Cap...1 Connector for Power...1 OPTIONAL ACCESSORIES Lenses ...WV-LXY18C4, WV-LXY23C4, WV-LXY47C4 -20-...
  • Page 23 Video Imaging Systems Company A Division of Panasonic Broadcast & Television Systems Company A Unit of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 4H-2, Secaucus, New Jersey 07094 Regional Offices: Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303...
