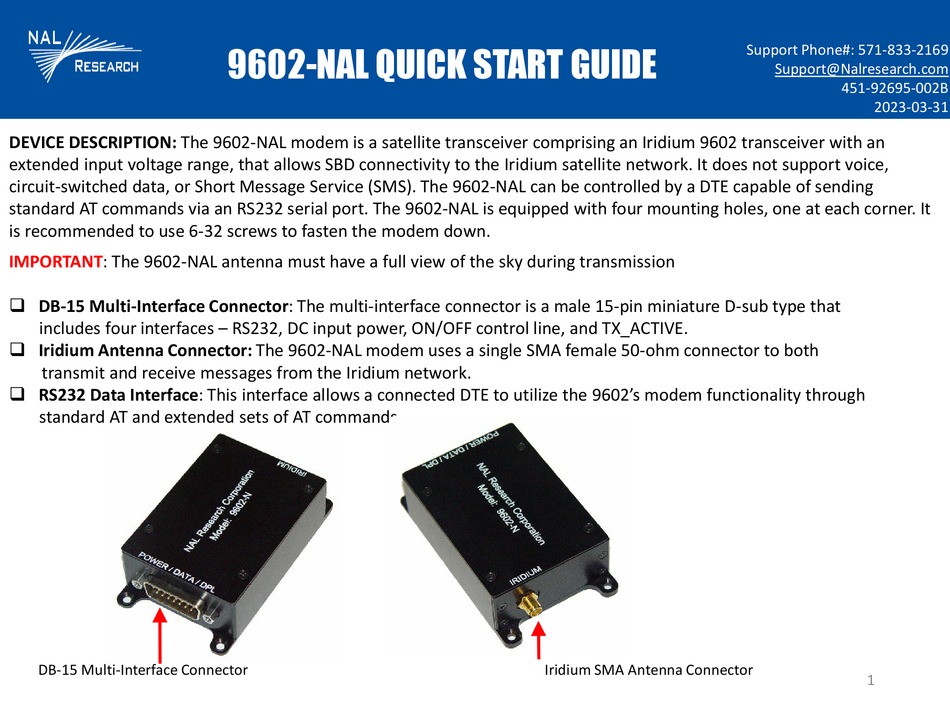

DEVICE DESCRIPTION: The 9602-NAL modem is a satellite transceiver comprising an Iridium 9602 transceiver with an
extended input voltage range, that allows SBD connectivity to the Iridium satellite network. It does not support voice,
circuit-switched data, or Short Message Service (SMS). The 9602-NAL can be controlled by a DTE capable of sending
standard AT commands via an RS232 serial port. The 9602-NAL is equipped with four mounting holes, one at each corner. It
is recommended to use 6-32 screws to fasten the modem down.
IMPORTANT: The 9602-NAL antenna must have a full view of the sky during transmission
 DB-15 Multi-Interface Connector: The multi-interface connector is a male 15-pin miniature D-sub type that
includes four interfaces – RS232, DC input power, ON/OFF control line, and TX_ACTIVE.
 Iridium Antenna Connector: The 9602-NAL modem uses a single SMA female 50-ohm connector to both
transmit and receive messages from the Iridium network.
 RS232 Data Interface: This interface allows a connected DTE to utilize the 9602's modem functionality through
standard AT and extended sets of AT commands.
DB-15 Multi-Interface Connector
9602-NAL QUICK START GUIDE
Iridium SMA Antenna Connector
Support Phone#: 571-833-2169
Support@Nalresearch.com
451-92695-002B
2023-03-31
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9602-NAL and is the answer not in the manual?

Questions and answers

Related Manuals for NAL RESEARCH CORPORATION 9602-NAL

Summary of Contents for NAL RESEARCH CORPORATION 9602-NAL

  • Page 1 Short Message Service (SMS). The 9602-NAL can be controlled by a DTE capable of sending standard AT commands via an RS232 serial port. The 9602-NAL is equipped with four mounting holes, one at each corner. It is recommended to use 6-32 screws to fasten the modem down.
  • Page 2  DC Power Input: The DC power interface comprises two DC power inputs, a ground input, and a control signal. The 9602-NAL accepts either +5 VDC input through pin #1 or +6.5 VDC to +32 VDC input through pin #2. The 9602-NAL is shipped with hardware set for +6.5 VDC to +32 VDC input.
  • Page 3 9602-NAL QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-92695-002B 2023-03-31 CONFIGURE DEVICE TO OPERATE (continued) Supply DC power through pin 1 (+5 VDC) or pin 2 (+6.5 VDC to +32 VDC) and pin 3(EXT_GND). Configure the 9602-NAL using AT commands (SatTerm).
