Summary of Contents for UBC Frost Stream Freeze
-
Page 2: Table Of Contents
Content Model type..................... 2 Security ..................... 3 Explanation symbols ..................3 General information ..................4 Manufacturer's responsibility ................. 4 General safety instructions and warnings ............5 Safety techniques for operating equipment with refrigerant R -290 (propane). 7 Instruction ..................... 9 1. -
Page 3: Model Type
Model type External dimensions Volume, Model WxHxD, mm weight , "Frost Stream" Freeze 800x910x640 "Frost Stream" Freeze Flat 800x910x640 "Frost Stream" Prima 1060x910x640 "Frost Stream" Prima Flat 1060x910x640 "Frost Stream" Nix 1350x910x640 "Frost Stream" Nix Flat 1350x910x640 "Frost Stream" Victory 1640x910x640 "Frost Stream"... -
Page 4: Security
Security Explanation symbols Safety instructions and warnings are marked in this manual with symbols and signal words Symbol Explanation Danger of medium degree. Can result in WARNING serious injury or death A hazard with a low degree of risk ATTENTION Individual information or general important information to avoid property damage Notification... -
Page 5: General Information
General information • Carefully read this instruction manual before using the equipment, and pass it on to other persons who are entrusted with the operation and maintenance of this equipment. • Make sure that the manual is read and understood by the people involved in the operation and maintenance of the equipment. -
Page 6: General Safety Instructions And Warnings
The manufacturer reserves the right to make technical changes to optimize and improve the efficiency of the equipment. General safety instructions and warnings WARNING • Never connect damaged equipment to the mains. In this case, immediately contact the manufacturer's service department. Otherwise, there is a risk of electric shock or refrigerant leakage. - Page 7 Carefully • When loading freezers with products, there is a risk of frostbite. Therefore, use protective gloves. • The sharp edges of the device can cut your hands during cleaning. Therefore, use protective gloves. • Mechanical damage to the device, for example caused by product carts that do not disrupt the technical function, must be repaired by the store operator.
-
Page 8: Safety Techniques For Operating Equipment With Refrigerant R -290 (Propane)
• The equipment is intended only for storing frozen products. • In the event of a power outage, the stored goods must be checked by a responsible person. • The equipment can be operated only with the cover closed. Icing may occur on the cooling surfaces. - Page 9 • Do not cover the ventilation openings in the equipment housing (engine compartment). If accessories are installed, care must be taken to ensure that the ventilation openings are not blocked. • Keep a minimum distance (100mm) to walls and other equipment •...
-
Page 10: Instruction
Instruction 1. Standards and directives Product responds position following directives: o Directive on machines, mechanisms and machine equipment 2006/42 / EU; o Electromagnetic Directive compatibility 2014 / 30EU; o Directive on low voltage equipment 2014 / 35EU. Output products at the enterprise is carried out in an integrated management system in accordance with the requirements standards ISO 9001:2015;... - Page 11 Fig.1. Rating plate 1. Showcase name; 2. Voltage (V); 3. Frequency ( Hz ); 4. Protection class (IR); 5. Maximum used power (W); 6. Climatic class of the showcase; 7. Net weight of the showcase (kg); 8. Refrigerant mass (g) 9.
-
Page 12: Unpacking, Installing And Connecting
3. Unpacking, installing and connecting Before and during the unpacking of the equipment, it is necessary to conduct a visual inspection to detect possible damage during transportation. Pay attention to loose parts, dents, scratches, etc. If any damage is detected, it is necessary to notify the service department before putting it into operation. -
Page 13: Temperature Control
ATTENTION Damaged equipment can cause a short circuit. Never plug in damaged equipment. The minimum temperature of the equipment must be at least +16°C before commissioning. The first connection of the equipment should be carried out no earlier than 1 hour after its installation. -
Page 14: Temperature Regulator
6. Temperature regulator The display temperature is set at the factory to maintain the temperature class/mode of the product specified by the manufacturer. To ensure optimal storage temperature, it is recommended to save the settings. A change in the temperature regime can lead to spoilage of the product. -
Page 15: Eliwell Electronic Temperature Controller
• along the time arrow of decreasing temperatures • against a temporary increase in temperature 6.2. Eliwell electronic temperature controller controller is placed on the front panel. Control elements are buttons (Fig. 2), which are programmed as follows: Fig. 4. Indication and control elements of the controller Eliwell . Control element Functions Increase variable value... -
Page 16: Regulation Of The Temperature Range
6.3. Regulation of the temperature range Press the "Enter" button to display the set value. Changing the set value: Press the "Enter" button. The setpoint value will appear on the display. Press the "Up"/"Down" keys to change the set value. Press the "Enter" button to confirm the changes. -
Page 17: Maintenance, Defrosting And Cleaning
8. Maintenance, defrosting and cleaning 8.1. Service It is recommended to clean the condenser at least once a month. To clean the condenser, it is necessary to dismantle the grilles (see Fig. 6) to gain access to the engine room. Remove dirt (dust, fluff, etc.) from the surface of the condenser and install the grids back (Fig. -
Page 18: Defrosting And Cleaning
Fig. 7. Location of the capacitor 8.2. Defrosting and cleaning • Strong icing of the inner walls can lead to a decrease in productivity and deviation of temperature readings. • Defrosting is recommended when the frost layer exceeds 10 mm. •... - Page 19 Defrosting /cleaning process: 1. Move the product to another freezer display. 2. Disconnect the power cable. 3. Open the lid for better defrosting. 4. Take out baskets or partitions. 5. Remove the melted water. 6. Remove any remaining product that has been stored. 7.
-
Page 20: Storage
A damp absorbent cloth or sponge External and internal surfaces of the equipment. External and internal glass surfaces For drying Wet soft cotton fabric External and internal surfaces of the equipment. External and internal glass surfaces 9. Storage If you take the equipment out of operation for a long period of time, you must: 1. -
Page 21: Possible Malfunctions And Recommendations For Them Elimination
Dispose of the equipment properly in accordance with applicable national disposal regulations and the regulations of your local disposal partner. Devices cannot be disposed of together with household waste. 11. Possible malfunctions and recommendations for them elimination The equipment has been thoroughly tested for performance and safety. However, in the event of a malfunction, check the following: •... - Page 22 Authorized service Poland : UBC Logistyka Sp . z o. o Bosnia : NICROM COOLING DOO BYKOW, UL. GAJOWA 5 Milan Vrhovca 79, 79101 55-095 MIRKOW Prijedor , Republic of Srpska , BiH Wojtek Rytkowski Dragan Tankosic tel.:+48717400076 / tel . com.: tel .
- Page 23 RO: str Topliţa , nr . 155, Miercurea Ciuc te+381654977001 Tel . No. 0040726308953 dusko.radjen@coolbeer.co.rs Email service@tcromania.com Ukraine : UBC Service Address : Kharkiv , Selyanka 110, Ukraine Contact person : Andriy Maydan Phone : +380503476869 e - mail : a.maydan@beer-co.com Manufacturer address: LLC "GREEN COOL", st .
Need help?
Do you have a question about the Frost Stream Freeze and is the answer not in the manual?
Questions and answers

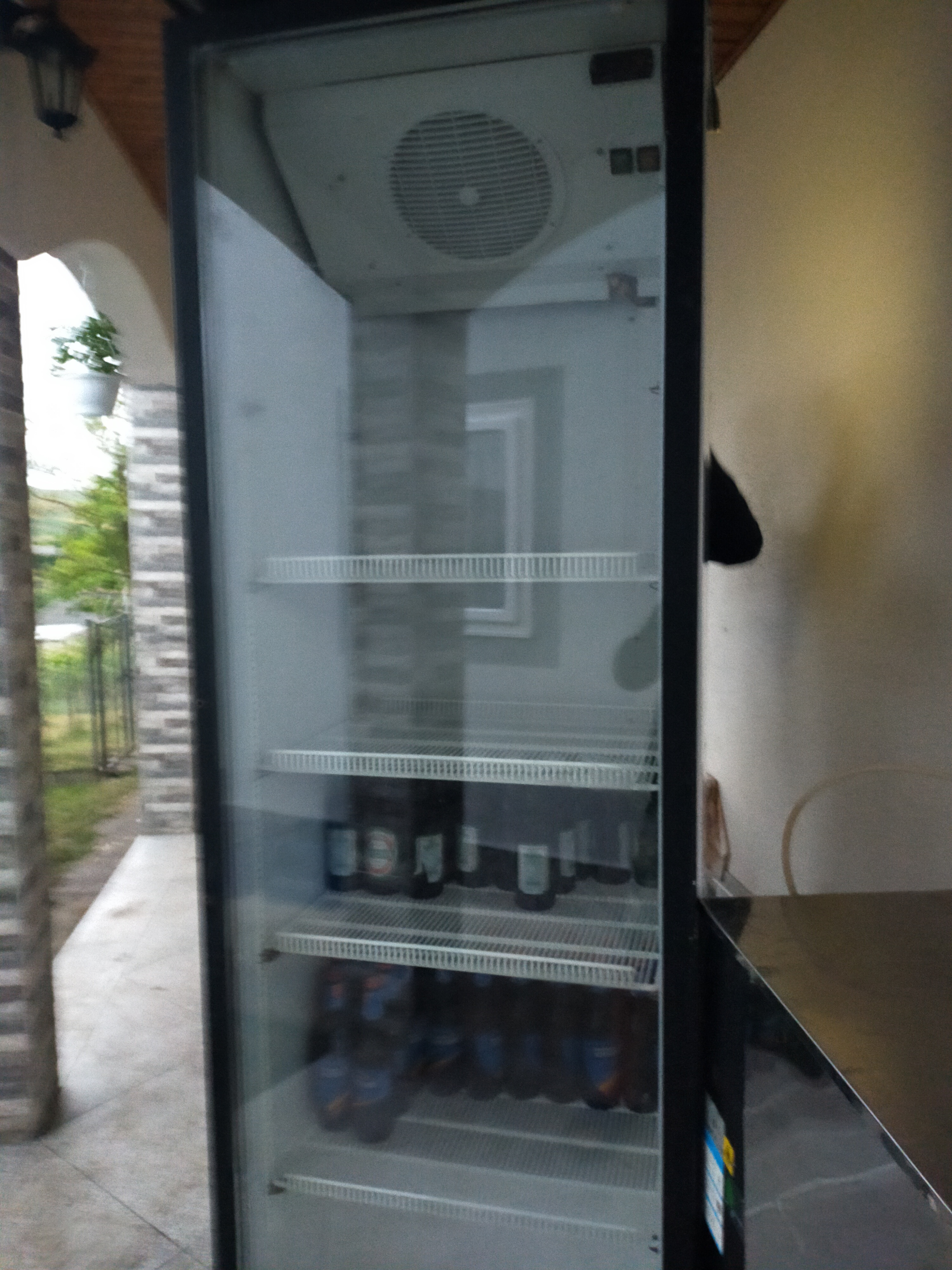

De ce nu pornește ventilatoru și nu răcește
