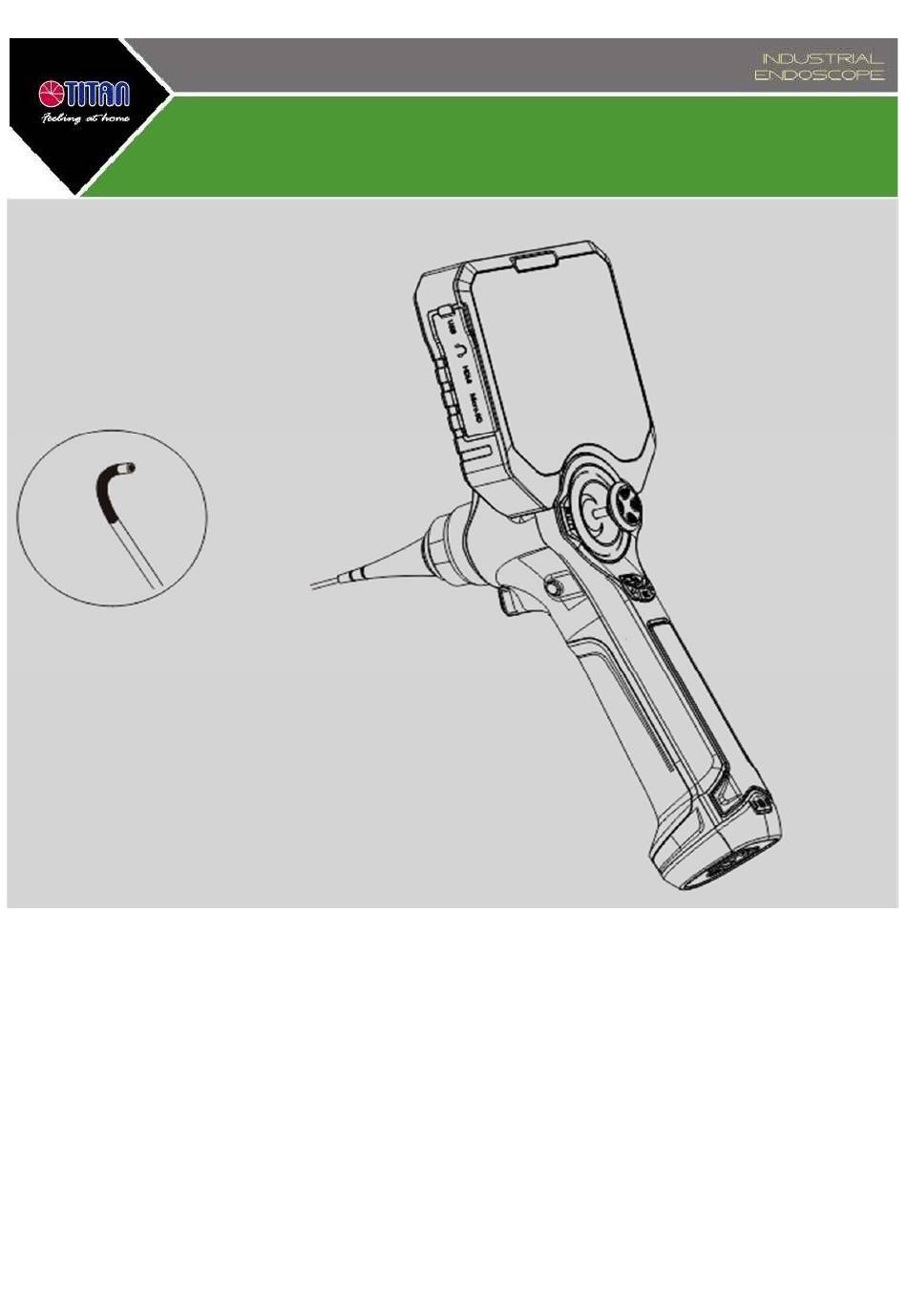

- Page 1 Videoskop with Touchscreen und Joystick TTS-TJ Series User manual...
-
Page 2: Safety Recommendations
Safety Recommendations In order to avoid harm to you and others or affect the service life of this equipment, please read and observe the following "safety precautions” before use. The safety precautions are divided into "warning" and "danger" for explanation. Incorrect operation may cause damage to the equipment WARNING Do not stretch or twist the insertion tube of the device with great strength,... -
Page 3: Parts Function
Parts Function Type-C for Charging Headset jack MINI HDMI output Monitor Micro-SD slot Joystick Lock Button Unlock Handle Battery compartment Status indicator Side View Front View Type-C for Charging Reset Power on/off Nut hole Insertion tube Bottom View Schematic diagram of opening the battery compartment... - Page 4 Parts Function Touch Screen Dimmer MENU Snap/ Video recording Upward Downward Dimmer Press the Dimmer button on the handle in sequence to adjust the light of the camera, Level 5→ Level 4→ Level 3→ Leve2→ Level 1→ off. Adjusting the EV Value of the camera. Snap/Video recording Short press Snap/Video recording to take a picture.
-
Page 5: Quick Setup
Quick Setup Installing 1. Align the Screen with the connector slot of the handle as shown in the right figure, and push it in gently. When you hear a click, it means it has been installed in place. Sliding Right 2. - Page 6 TOOLBAR After entering the real-time screen, touch the Hide button in the lower left corner, and a toolbar will appear on both sides of the screen, using the toolbar to quickly operate and image setting. Touch the Hide button again, and the toolbar enters the hidden state.
- Page 7 Playback Enter Display playback,there are three folders, store pictures and videos, Screen -capture for graffiti. Use the key on the right column to select the file to play or delete. Graffiti You can sketch or mark on the image and save to folder SCREEN-CAPTURE on SD card.
- Page 8 Freeze The left is frozen image, the live image in the right for comparison. ZOOM The image can be zoom in or out. Different cameras may have different Zoom levels. Negative film Image can be showed in a complementary colors as a negative. Rotation &...
- Page 9 EV Adjustment Adjusting the EV value can make the lens adapt to different light and dark environments. High EV value may cause overexposure of the bright workpiece surface, and a low EV value can make the details more clearly presented. Note: The EV value can also be determined by the BRT button.
- Page 10 Sensor sel This series can be adapted to various camera sensors, and select the corresponding option according to the probe camera used. Image Set The following items can be set in image settings: White balance Display style Negative Sharp/EV Image Adjust Gain setting White balance The product can be adapted to...
- Page 11 Display style Please refer to the previous description of TOOLBAR. Negative In addtion to the negative film, the black and white function of the picture has been added. Sharp/ EV Set Dead point correction(dpf), Sharpness and exp com value can be set by + -, after setting, press the “Exit”...
- Page 12 Gain Setting Automatic or manual mode can be selected through + - , If manual mode is selected, it can be used+- to set the gain value and exposure time. After setting, press Exit, and then press + or - Confirm to exit. Assistance Recording time Volume...
- Page 13 Ruler Please refer to the previous toolbar “Ruler” description. Graffiti Please refer to the previous toolbar “Graffiti” description. Watermark Date and text watermarks can be added to photos and videos. The date watermark will be automatically added to the pictures and videos taken after you just open it.
- Page 14 System setting The following items can be set in the system settings. Language HDMI System WiFi Date Format Language You can select the language used by the system. HDMI HDMI cable can connect to external screen to display, according to external screen to select appropriate parameters.
- Page 15 System The system version can choose to return to the default or upgrade by inserting SD card containing system software. WiFi You can activate or turn off Wi-Fi transmission. (For certain models) Date To set the date and time of the system, it is recommended to set the local time and date when using it...
-
Page 16: Storage And Maintenance
Format This item can format the SD card, please back up your files before formatting. Storage & Maintenance After the device is used, restore the probe articulation tip and camera to the straight state before use, turn off the device, remove the screen, and then clean and maintain according to the following procedures. -
Page 17: Troubleshooting
Troubleshooting Q: What should I do if the device cannot be turned on? A: Connect the power adapter to the charging port of the display for charging. Q: What should I do if there is no picture or light on the screen? A: Reassemble the screen and handle, and then press the power button to turn on the device. -
Page 18: System Parameters
Caution If the device has any problems other than those mentioned above or it cannot be solved after repeated restarts, please contact your dealer for help immediately. Do not disassemble, repair or modify the device by yourself. System Parameters 5″ High resolution Touch Screen LCD LCD Panel Support Micro-SD Card storage, HDMI Video output Lithium battery: 3350mAhx2 3.7V...
