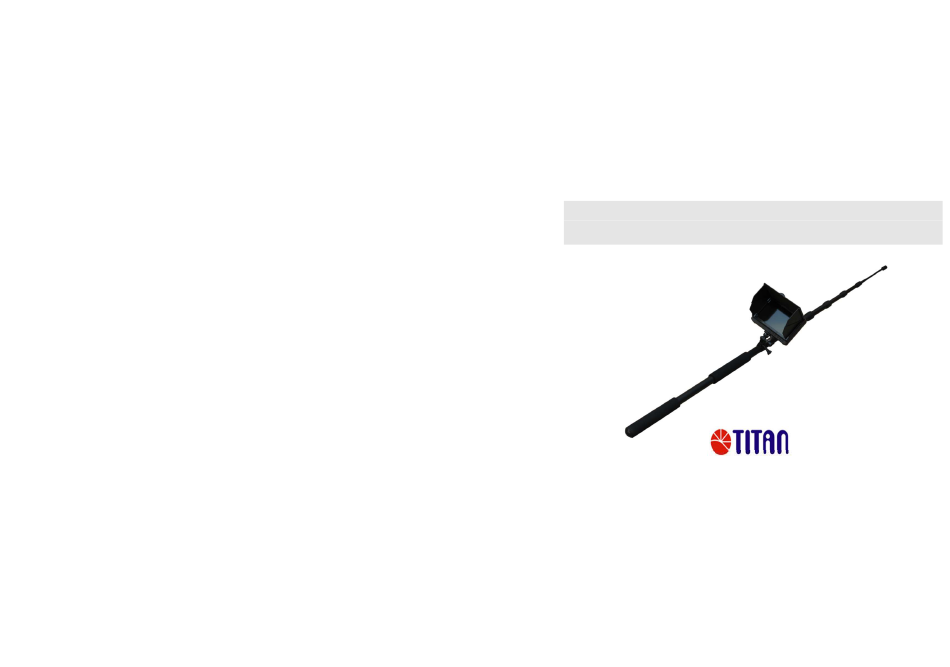

- Page 1 HD Telescopic Visual Inspection System User Manual...
- Page 2 7”Monitor Digital Waterproof Inspection System Thank you for purchasing this device. This handbook can lead you to use our product and the applied program of its adding. NOTES 1. We try our best to make the content correct and complete, but it can’t certify that there is no any mistake and omit of the introduction.
-
Page 3: Table Of Contents
Content Notes…….………………………………………………………………………………1 Basic Information……………………………………………………………………….2 Device Structure……………………………………………………….……………..3 Buttons & Interface……………………………………………………….……………..4 Stretch and Retract Telescopic Pole……………………………………………………. 5 Monitor Installation………………………………………………………………………6 Loading & Unloading of Sunshade Cover……………………………………………….7 How to Charge……………………………………………………………………………8 Basic Operation..………………………………………………………………………….9 Recording & Photo………………………………………………………………………10 Play Video & Pictures..…………………………………………………………………..12 System Settings ………………………………………………………………………….14 Trouble Shooting…………………………………………………….………………… .22 Specification………………………………………………………….………………….23 Package Content…………………………………………………………………………25... -
Page 4: Notes
Notes Dear customers, thank you for choosing our device. We really hope our product can bring happiness to you. Please read the following instructions carefully before using: Forbid to use it in high temperature environment. Please inserting or pulling out the TF card after monitor power off. If under working state, the huge current will bring unpredictable damage to the machine. -
Page 5: Basic Information
Basic Information Camera: Full HD 1080P camera Light source: 6 pcs LED/ IR lamps Camera resolution: 5.0 MP 3200*1800 pixel Telescopic Pole: 5 meters Metal monitor bracket: Adjustable Monitor: 7-inch HD screen with sun visor ... -
Page 6: Device Structure
Device Structure - 3 -... -
Page 7: Buttons & Interface
Buttons & Interface Tips for symbols - 4 -... -
Page 8: Stretch And Retract Telescopic Pole
Stretch & Retract Telescopic Pole Stretch the cable, anti-clockwise loosen the loose collars one by one to stretch the pole. Then clockwise fasten the loose collars. Retract the pole, anti-clockwise loosen the loose collars one by one. Then pull out the cable in end of the pole to retract the pole. -
Page 9: Monitor Installation
Monitor Installation Aim the nut opening on DVR bottom at the insert bolt on the pole, and fasten Bolt 1 with Chain. Fix the direction & angle by adjusting Bolt 2 & 3. Insert/pull out data line: Just catch the 5 pin connector to plug it into DVR female slot, then fasten the nut;... -
Page 10: Loading & Unloading Of Sunshade Cover
Loading & Unloading of Sunshade Cover Loading & Unloading Methods of Sunshade Cover The bottom of sunshade cover is provided with 4 buckle pins. Please aim them at the button holes on monitor and push gently; it’s loaded in place. If need to unload it, just gently push it to the opposite direction. -
Page 11: How To Charge
How to Charge 1. Notice before operation Battery capacity symbols: Tips: The possible reason for being unable to power on monitor is battery running out. Please operate it after charging by AC adapter or PC. How to charge Charge 4~6 hours for fully charged. Unplug the charger until the battery status is full. Notice: A. -
Page 12: Basic Operation
Basic Operation 1. Power On/Off: Press “ ” to power on, monitor is on working state; long time press “ ” again to power it off. 2. LED light turn on mode selection: Turn on the monitor, LED is off. Press “ ” to turn on LED light, Press “ ” again to turn off the LED light. -
Page 13: Recording & Photo
Record & Photo Power monitor on, and select working mode to “ ”, it is in recording/photo mode. 1. Record: Under “ ” mode, press “ ”, monitor starts to record, and screen shows red “ ”. Press “ ”again to pause and store, press “ ” one more time, it continue to record. Press “ ”... - Page 14 Record & Photo While if “Overwrite” is turn on, not press “ ” to end recording, system will automatically save video in segments. And when the card is full, it will overwrite the earliest recording and save the latest one, keep cycle recording. 3.
-
Page 15: Play Video & Pictures
Play Video/Photo When working mode selected to “ ”, it’s in the mode of play video & photo. Press “ ”/“ ” select “Photo” or “Video”. Press “ ” to exit and back to main menu. Press “ ” to get a delete dialogue. 1.Play Video: When select “Video”, press “... - Page 16 Play Video/Photo 2.Play Photos： Select “Photo”, and press “ ” to enter into photo files. Press to select “ ” / “ ” pictures, then press “ ” to view. Press “ ” to view next one; press “ ” to view previous one. Press “...
-
Page 17: System Settings
System Settings Press to enter system. “ ” Language: Press to select “Language”, and press “ ” to enter. Press “ ”/“ ” “ ”/ to choose your language. And press “ ” to confirm and exit. “ ” - 14 -... - Page 18 System Settings Date Time: Press to select “Date Time”, and press “ ” to enter. Press “ ” “ ”/“ ” again to move the cursor, and press to adjust date & time. Press “ ” to exit. “ ”/“ ”...
- Page 19 System Settings Photo Size: Press to select “Photo Size” and press “ ” to enter. Press “ ”/“ ” “ ”/ to select “2M”/“3M”/“5M”Press “ ” to confirm & exit. “ ” Video Segment Sizes: Press to select “Video Segment Sizes” and press “ ” to “...
- Page 20 System Settings Overwrite: Press to select “ Overwrite”, and press “ ” to enter. Press “ ”/“ ” “ ”/ to select “Off”/ “On”, and press “ ” to confirm & exit. If “Overwrite” is on, monitor “ ” will cycle record, and save the latest video. Light Frequence: Press to select “Light Frequence”...
- Page 21 System Settings Time Stamp: Press to select “Time Stamp”, and press “ ” to enter. Press “ ” / “ ” “ ” to select “Off”/ “On”, and press “ ” to confirm & exit. If it’s on, video will be saved /“...
- Page 22 System Settings 10. Power Save: Press to select “ Power Save ”，and press “ ” to enter. “ ”/“ ” Press to select “ Auto LCD Off” / “Auto Power Off” and press “ ” to confirm & “ ”/“ ”...
- Page 23 System Settings 12. Firmware Update： Press to select “Firmware Update”, and press “ ” to enter. “ ” / “ ” Press to select “Yes”，and press“ ” to start update. Please remember to save “ ”/“ ” update file “zburnT_C11.run.elf” at root directory of TF card. 13.
- Page 24 System Settings 14. Version: Press to select “Version”，and press “ ” to view version information. “ ”/“ ” Press to exit. 15. Default Setup: Press to select “Default Setup”， and press “ ” to enter. Press “ ”/“ ” to select “Yes” and press “ ” to confirm. Press “ ”...
-
Page 25: Trouble Shooting
Trouble Shooting Trouble Shooting: It can’t power on: Maybe no power. Recharging the monitor is ok; System halted: Press the RESET key to turn on player again; It cannot play Maybe the format of video file is not supported by this monitor, please ：... -
Page 26: Specification
Specification Optical Element 1/3 CMOS Sensor Optical Total Pixels 5.0 Mega：3200（H）×1800（V） CMOS Sensor Size 5.07mm（H）×3.38mm（V） Sensitivity 0.2Lux/F1.2 Led lamp 6pcs 8lm/pcs controlled on DVR Lens & View angle 0.5mm F1.2 120 ° Mini camera HD Video Output Interface FPD-LinkⅢ Waterproof rate IP68 Dimension 18 x 28mm... - Page 27 Specification HD Video Output HDMI：1920* 1080；1280*720 Video Storage Pixels（16：9） HDMI：1920* 1080；1280*720 Video Compression Format H.264 Video Storage HD Digital Video Input Interface FPD-LinkⅢ JPG 5.0Mega ：3200（H）×1800（V） Photo Format Storage External SD card TF card 1GB-64GB（Optional） 64GB recording time 10-32 hours Operating System Windows &...
-
Page 28: Package Content
Package Contents The following items are all in the box. Please check: 1 * 5.0MP HD camera 1 * 7 inch Monitor 1 * Telescopic pole 1 * HDMI cable 1 * Adapter 1 * Aluminium alloy case 1 * User Manual - 25 -...
