Jiecang JCC50SLEU User Manual

JCC50SLEU

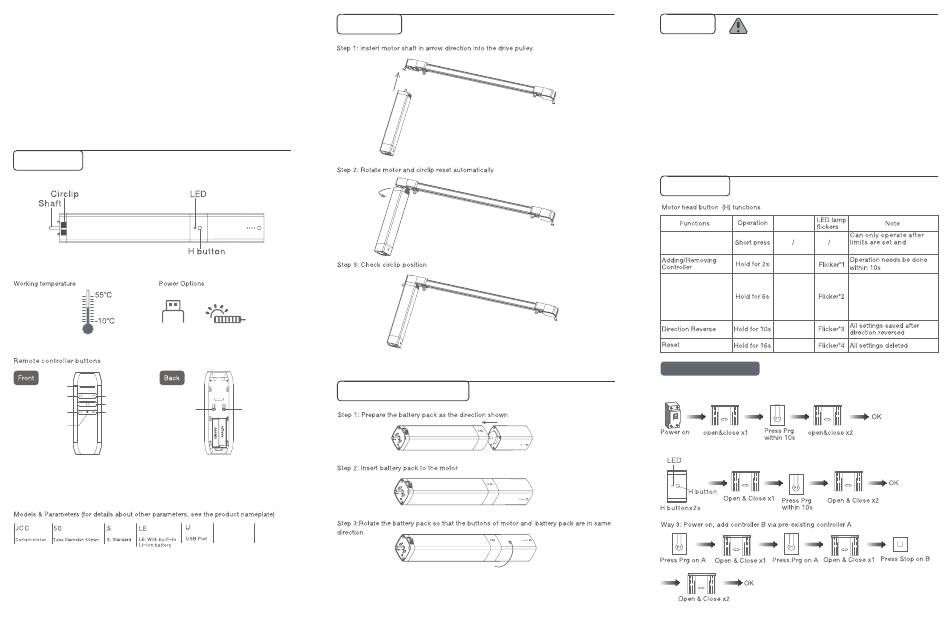

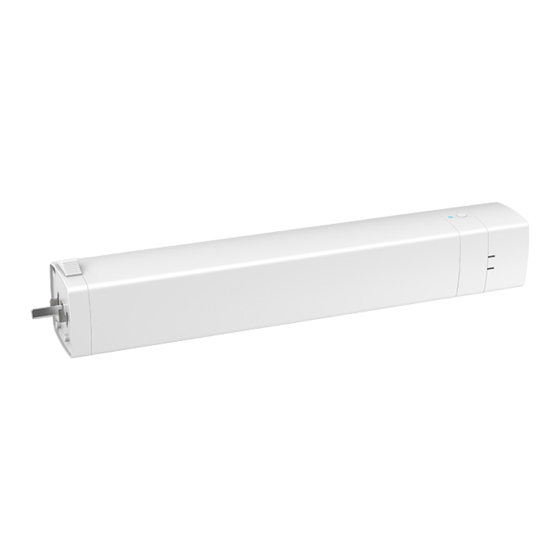

Curtain Motor
User Manual

01 Product Info

LED
Open Close
Stop
Prg 1
CH-
CH+
Fav
JCHR35W3A2
6-channel remote controller

02 Installation

Removing operation is the same as the installation

03 Installation of battery pack

Prg 2
12 14
Torque: 1.2 N.m Speed：14cm/s
The operation of removing battery pack is the same as the installation
04 Caution!
1.This product is for indoor use only, do not use outdoor or in humid environments.
2.This motor has a external rechargeable Li-ion battery pack with integrated charge
management. Max input voltage: 5V/2A.
3.Please charge it before using for the first time, make sure it is fully charged before first use
4. When the battery voltage is low, LED will flicker 8 times to give a low-voltage alarm when
motor starts.
5. The motor will open&close in operation, please do not proceed to the next step until it
complete.
6.During operation, the effective interval of the transmitter button operation is 10 seconds. If
there is no effective transmitter operation for more than 10 seconds, it will automatically exit
the current mode.
7. The motor can be paired with max 10 controllers.
8.The open&close limits cannot be set at the same point. Limits saved even power off.
9.The motor runs constantly for at 6 min max without any other operation.
10.With soft start&stop function,the motor will start and stop slower to make it run elegantly.

05 Instructions

Jogging
Time
Control the OPEN/
STOP/CLOSE of the
Shade
Open &
Close *1
Sleep Mode,
Open &
RF Control Inactive Close *2
Open &
Close *3
Open &
Close *4
a.Pairing Motor with Controller
Way 1:Before adding a new controller
Way 2:After motor is powered on for more than 10s
Note: Pairing can not be done under group channel or 0 channel.
motor is not in sleep mode
Hold H button for 6s, jog
twice to show the motor RF
control is inactive; Hold H
button for 2s, the RF control
is active again
