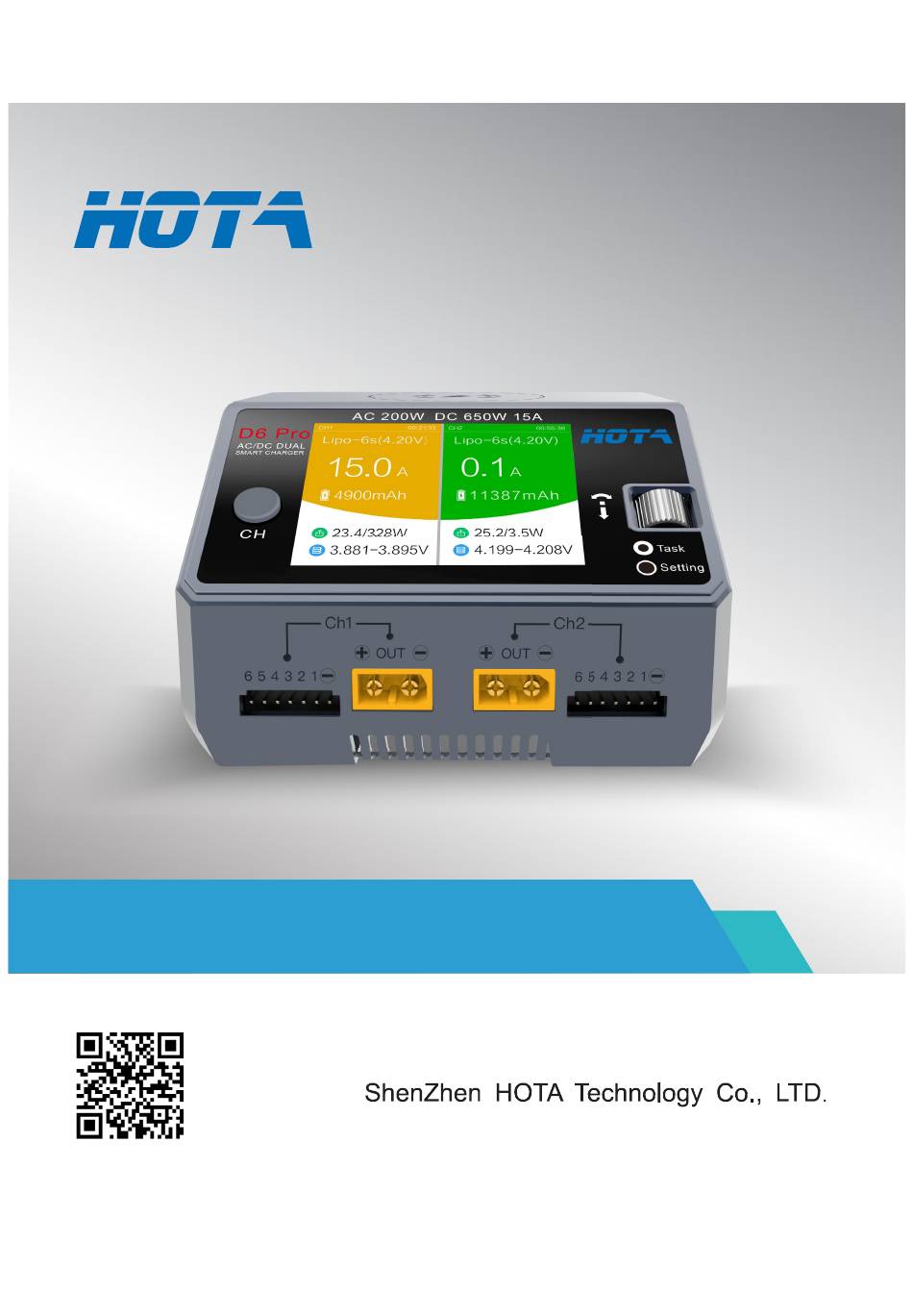

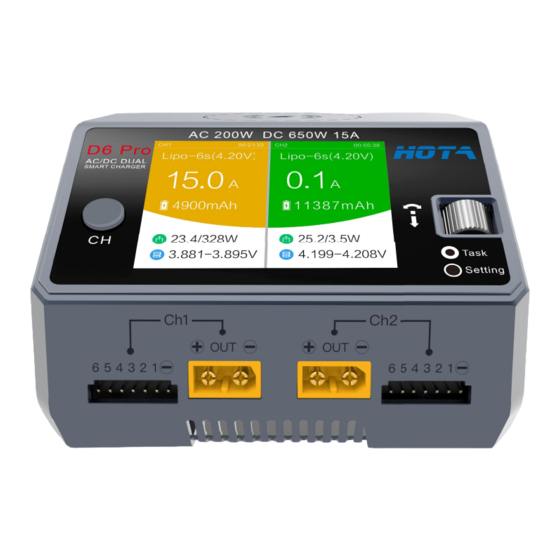

- Page 1 D6 Pro AC/DC Dual Channel Smart Charger Operating Instructions...
- Page 2 D6 Pro AC/DC Dual Channel Smart Charger Thank you for purchasing the HOTA series of smart chargers. Please read this Instrucons carefully before use so as to use the product beer, please keep this Instrucon in a place safe for easy access.
-
Page 3: Table Of Contents
Contents Product Overview Specifications 2. Introduction 3. Warnings and Safety Notes 4. Recommended Connected Way 5. Standard Battery Parameters Operation and Setup 1. How to Confirm Charging Current 2. Operative Skills 3. Charger Settings 4. Charger Settings>Task Parameters 5. Charger Settings>System Parameters 6. -
Page 4: Product Overview
Lead Acid(Pb) : 1~12S(2~24V) Net Weight 575g Eneloop : 1~16S Wireless Max 5W output Color white，black，gray Charging Temperature protection，time protection，capacity protection，input reverse Protection protection，Output protection，short circuit protection，output overcurrent Function protection，Output overvoltage protection，overcharge protection D6 Pro AC/DC Dual Channel Smart Charger... -
Page 5: Introduction
7. When charging or discharging is completed，please press the speed shuttle key to terminate current task，and remove the battery when charger shows the standby screen. D6 Pro AC/DC Dual Channel Smart Charger... -
Page 6: Recommended Connected Way
Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to vent, burn or explode leading to injury or loss of property. D6 Pro AC/DC Dual Channel Smart Charger... -
Page 7: Operation And Setup
Adjust Task” menu to adjust the task's current . Long press CH key to quick stop current oper- ation or to enter “Task Settings” menu for corresponding channel. CH Key Speed Shuttle Key D6 Pro AC/DC Dual Channel Smart Charger... -
Page 8: Charger Settings
Used for channel 2 data calibration System Self-checking Start self-checking of the charger Factory Settings Restore all parameters to factory settings(User calibration data cleanup) System Info Display system information, serial number Back Exit “Charger Settings” D6 Pro AC/DC Dual Channel Smart Charger... -
Page 9: Charger Settings>Task Parameters
End Current Cut off when less than the ratio between completed current and set up current Trickle Charge Whether to turn on trickle charge : On or Off Back Exit the “Task parmeters” menu D6 Pro AC/DC Dual Channel Smart Charger... -
Page 10: Charger Settings>System Parameters
Completion Signal Press the speed shuttle key to enter, need to manually enter the name of Device Name the device, long press the speed shuttle key to exit Back Exit the “System settings” menu D6 Pro AC/DC Dual Channel Smart Charger... -
Page 11: Task Settings
Select battery types：smart battery, LiHV, LiPo, Lilon, LiFe, LiXX, NiZn, Pb, Battery Type NiCd, NiMH, Eneloop Cell Voltage Select battery's strings：1~6S, if balance port is inserted, then it processes Cell Count automatic test, no need to do setting Current Setting Start Task Back D6 Pro AC/DC Dual Channel Smart Charger... -
Page 12: Task Settings And Notes
Operation and Setup Task Settings and Notes The D6 Pro AC/DC Dual Channel Smart Charger is operation in a series charging mode. When connecting the battery, the battery output cable must be connected. For lithium batteries, it is strongly recommended to connect the balance ports for balanced charging so as to ensure that the charger can accurately monitor the voltage of each cell and balance the cells with poor consistency. - Page 13 There may be some error between the cell voltage and the preset value at the end of the task, which is a normal phenomenon. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 14 About Internal Resistance Measurement The D6 Pro AC/DC Dual Channel Smart Charger has a cell internal resistance measurement function that is only effective when performing balanced charging tasks on the battery. About two or three minutes after the start of the charging task, the internal resistance of the battery is measured and calculated.
-
Page 15: Working Parameters Display
2. Long press the speed shuttle key to enter“Charger Settings”menu in the standby state; 3. Short press CH key display the channel you choose; 4. Long press the CH key to stop the current task. D6 Pro AC/DC Dual Channel Smart Charger... - Page 16 3. After select the corresponding channel，Short press the speed shuttle key to pop up the“Task Settings”menu. 4. Short press CH key display the channel you choose; 5. Long press the speed shuttle key to enter the“Charger Settings”menu. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 17 3. When the charge task is executing，short press the speed shuttle key to pop up the“Adjust Task”menu, will adjust the charge current，long press the CH key can stop the current task； 4. Enjoy. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 18 (press the speed shuttle key to stop the task before removing the battery） 2. Long press the CH key can stop the current task; 3. Short press the CH key display the channel you choose. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 19 3. When the discharge task is executing，short press the speed shuttle key to pop up the “Adjust Task”menu，will adjust the discharge current，long press the CH key can stop the current task； 4. Enjoy. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 20 3. When the Ext. discharge task is executing，short press the speed shuttle key to pop up the “Adjust Task”menu，will adjust the Ext. discharge current，long press the CH key can stop the current task； 4. Enjoy. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 21 3. When the storage task is executing，short press the speed shuttle key to pop up the “Adjust Task”menu，will adjust the storage current，long press the CH key can stop the current task； 4. Enjoy. D6 Pro AC/DC Dual Channel Smart Charger...
- Page 22 3. When the balance task is executing, short press the speed shuttle key to pop up the “Adjust Task”menu，will adjust the balance current，long press the CH key can stop the current task； 4. Enjoy. D6 Pro AC/DC Dual Channel Smart Charger...
-
Page 23: Product Qualification Declaration
Product Qualification Declaration D6 Pro AC/DC Dual Channel Smart Charger conforms to relevant commands in B: 2017, PART15 CLASSB；PART15 CLASSC, FCC Testing Standards Result EN 60950-1:2006+A11:2009+A1:2010+A12：2011+A2:2013 EN 62311:2008 ETSI EN 301 489-1 V2.2.0(2017-03) ETSI EN 301 489-3 V2.1.1(2017-03) ETSI EN 303 417 V1.1.1(2017-09) -
Page 24: Troubleshooting
During the warranty period, repairs are not free of charge if: 1) Failure or damage caused by improper use or disassembly, attachment or modification as specified in the Instructions. 2) Failure or damage caused by natural disasters, falls, collisions, and improper voltage. D6 Pro AC/DC Dual Channel Smart Charger... -
Page 25: Safety Tips
Take it to the garbage collection center for classification. Statement The D6 Pro AC/DC Dual Channel Smart Charger is designed for the battery types listed in this Instructions. The company does not assume any responsibility if the user uses the charger for purposes other than those listed in the Instructions. -
Page 26: Safety Notes
Please do not cover the fan outlet on the charger. Do not use it in direct sunlight, confined space or high temperature environment. In these cases, the temperature protection mechanism inside the charger may activate so that charging and discharge cannot be performed normally. D6 Pro AC/DC Dual Channel Smart Charger... - Page 27 Add: Website: www.hota-exp.com Floor 2, Building 2, Guorun Industrial Park, Min Zhi, Longhua District, Shenzhen, China Tel: 0755-28180135 E-mail: info@hota-exp.com...
