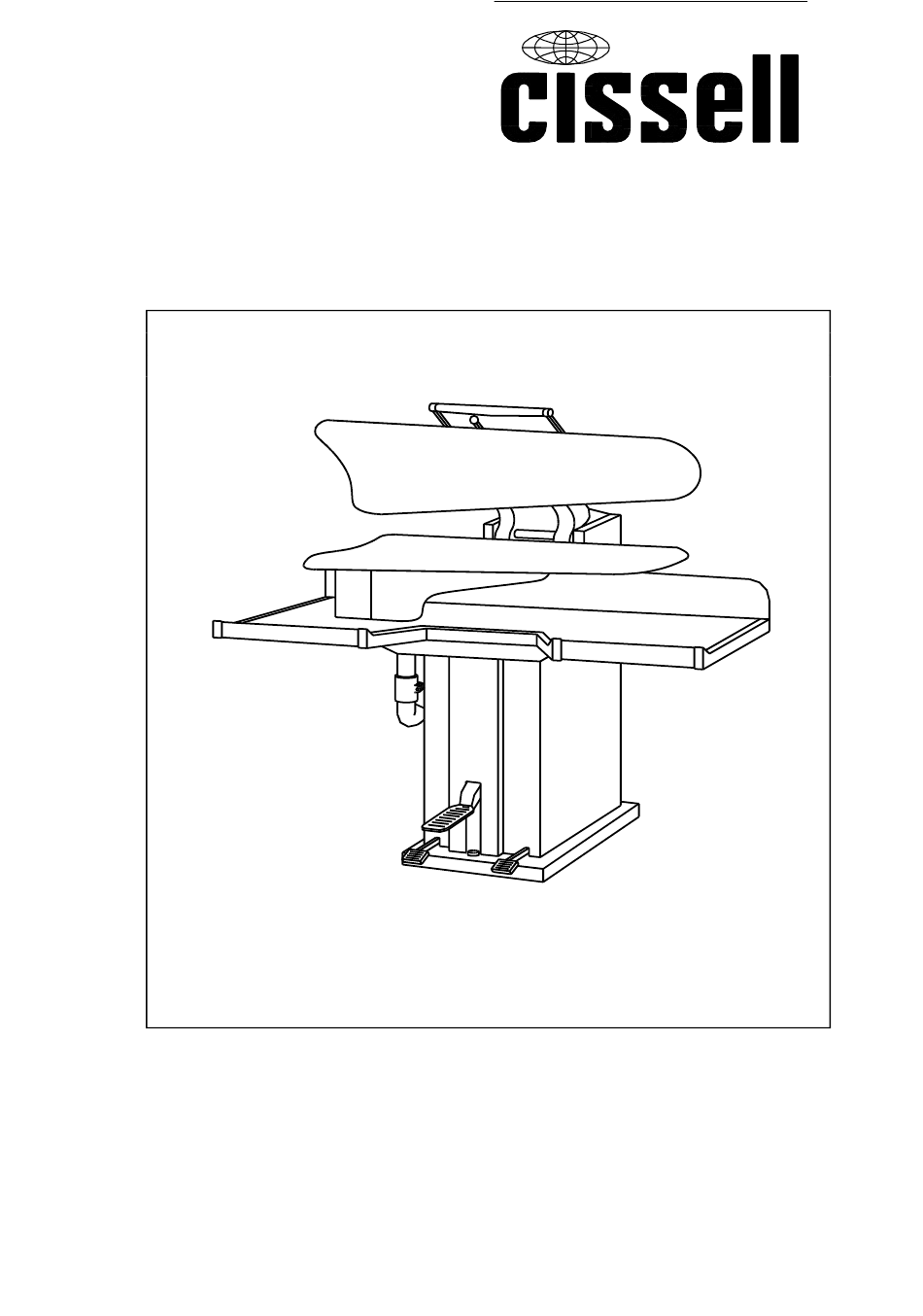

- Page 1 Manual Hand foot operated Utility Press Model: CF 19, 24, 41, 45, 47, 50, 52, 220, 226, CISSELL MFG. CO. 439, 441, 444, 446, 448, 487. 831 South First St. / POB 32270 Louisville, Ky. 40232-2270 Phone: (502) 587-1292 Fax : (502) 585-3625 www.cissellmfg.com...
-
Page 2: Table Of Contents
Table of contents 1. Machine surfey, operating functions and connections…………………..…... 3 2. Symbols………………………………………………………………………..….. 3 3. Introduction…………………………………………………………………………4 4. Technical data......…………………………………………………. 4 5. Installation....................5 5.1 Transport and positioning ……………………………………………………... 5 5.2 Connections ……………………………………………………………………. 5 …………………………………………………………………….. 5 5.2.1 Steam ……………………………………………….………. 5 5.2.2 Steamline systems ……………………………………………………………….….. -
Page 3: Machine Surfey, Operating Functions And Connections
1 Machine survey, operating functions and connections Handle Steaming Wooden handle Close Head Head Buck Footpedal Buck steam Footpedal Vakuum Footpedal Press and open Adjusting bolt Adjust footpedal (7) Adjusting knob Adjust pressure A. Steam supply ½" BSP B. Steam return ½" BSP D. -
Page 4: Introduction
! Take care for good survey and create enough working space around the machine. Advice: Keep the manual somewhere near the press. 4 Technical data Model CF 19, 24, 41, 45, 47, 50, 52, 220, 226, 439, 441, 444, 446, 448, 487 Type ../81 ../83 ../93... -
Page 5: Installation
5 Installation Transport and positioning Mind your safety! Wear safety shoes and working gloves. • Leave the machine on the pallet for transport to its location. • Avoid shakes. • Use a lifting device for transport and for moving it into position. •... -
Page 6: Vakuum
Closed system The condensate ends up in the boiler (A) through a down going condense return line (C). The waterlevel of the boiler (A) has to be lower than the lowest condensate output of the connected machines! There will be no loss of energy. The energy savings in regard to the open system is approximately 33%. -
Page 7: How To Operate
7 How to operate User directions Use the press only for the treatment of clothes. Maintenance and repair activities are to be executed by a qualified serviceman. Not following the instructions of this manual may lead to injury or to damage to the machine! Caution: After a while, the head (3) will get warm. -
Page 8: Trouble Shooting
Trouble shooting Mind your safety! If you cannot solve the problems with the aid of table below, then call for an expert. Table: Trouble shooting Trouble Check / solution Little or no head 1. Are the steam shut off cocks fully open? steam. -
Page 9: Repairs / Dismanting
10.2 Repairs/Dismantling Mind your safety! Before starting repair or dismantling activities: • For steam heated machines: close the steam shut off valves (W, see figure 1), blow off steam (Y). • Let the machine cool down. All repair activities are to be carried out by a qualified serviceman. For repair activities consult addition A containing detaildrawings with spare parts. -
Page 10: Spare Parts
11 Spare parts Order spare parts by contacting your distributor. Do not use any parts but original spare parts! Table: Spare parts Onderdeel Art.nr. Onderdeel Art.nr. Knob Assy 119227 40 Bearing 80945 Nut M12 41 Frame Shaft 95619 Ball Bearing 81018 42 Flexible Hose 80507... - Page 11 Latch Roll Adjusting Pin 95615 Ajusting Knob Assy 111693 Latch Roll Adjuster Spring 50024 Front Plate Strap 118645 Bearing 80953 95605 Foot Lever Link 95603 Connecting Lver 118287 Wood Handle 118297 Frame Cover L 119261 Frame Cover R 119262 Handle Bracket 118296 Strip 94896...
