Summary of Contents for Bluebird SF650

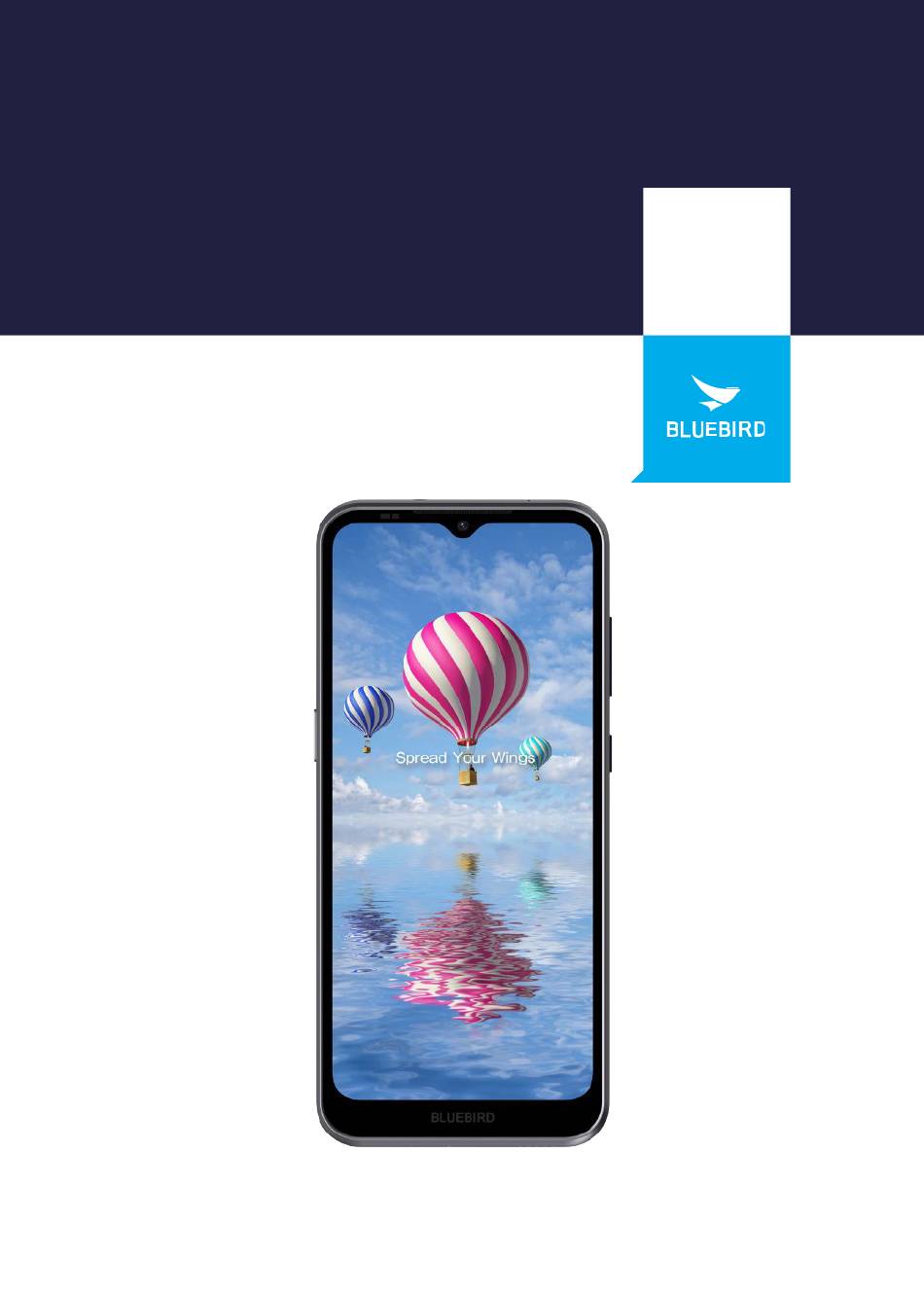

- Page 1 SF650 Quick Guide...
-
Page 2: Registered Trademark
BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. -
Page 3: Safety Information
1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Caution Indicates situations that could cause damage to your device or other equipment. Note Indicates additional information that can help you get the most out of the device. -
Page 4: Frequency Interference
Safety Information 1.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •... -
Page 5: Package Contents
2 Overview 2.1 Package Contents The package includes: SF650 USB Cable (Type-C) Charging Adapter SF650 Device The illustrations may differ from your actual items. -
Page 6: Your Device

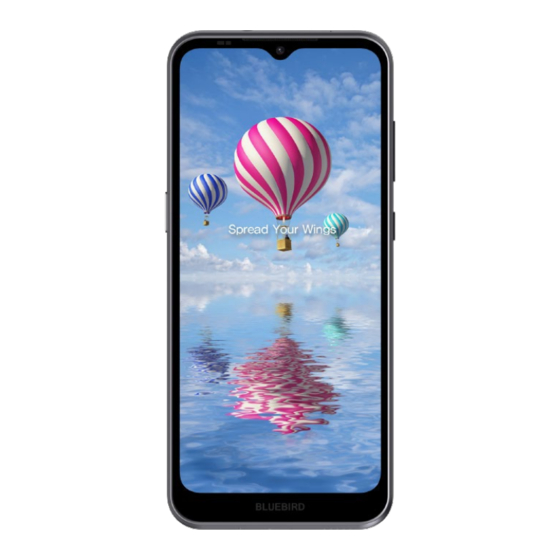

Overview Your Device Front - SF650 Reciever Charging Notification (Status LED) Proximity Sensor / Front Camera Light Sensor Volume up button Volume down button Function button Power button Touch screen 2.2.2 Back - SF650 Rear camera Camera flash... -
Page 7: Top And Bottom
Overview 2.2.3 Top and Bottom - SF650 Top View : SF650 Headset jack Microphone (2) Bottom View : SF650 C-type connector Microphone (1) Speaker... -
Page 8: Getting Started
3 Getting Started Installing the Cards Insert a Nano SIM card Remove the Battery Cover. Remove the Battery . Insert the Nano SIM into the place specified in the picture below. -
Page 9: Inserting A Microsd Card
Getting Started 3.1.2 Inserting a Micro SD Card Remove the Battery Cover. Remove the Battery Insert the Micro SD card into the place specified in the picture below. 3.1.3 Removing the Cards Remove the card slot . Remove nano SIM or SD cards on the card slot. -
Page 10: Installing The Battery
Getting Started 2. Battery Installing the Battery 2 Place the battery into the device. Please make sure 1 Remove the battery cover. to place the top portion of the battery before comp letely inserting the battery into the device. 3 Gently press the bottom portion of the batt 4 Press the battery cover evenly on all sides to connect ery to fully insert the battery into place the battery cover back into place. -
Page 11: Removing The Battery
Getting Started Removing the Battery Slide up the battery lock to unlock the battery and pull the battery out. Before removing the battery, turn off the power. Failure to do so it may cause damage to the device. Charging the Battery 1 Plug the C-type end of the charger into the multi-purpose jack on the buttom of the device. -
Page 12: Turning The Device On Or Off
4 Basics Turning the Device On or Off Turning the Device On Press and hold the Power button for a few seconds. 4.1.2 Turning the Device Off Press and hold the Power button for a few seconds. Tap Power off. •... -
Page 13: Using The Touch Screen
Basic 2. Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom in. -
Page 14: Using The Home Screen
Basic 4.3 Using the Home Screen The Home screen is the starting point for all apps and features. It displays icons, shortcuts, and widgets for apps. Drag upward from the bottom of the screen. Applications will be displayed on the screen. To view other pages, swipe left or right. -
Page 15: Connecting To A Wi-Fi Network
Basic 4.4 Connecting to a Wi-Fi Network Connecting to a Wi-Fi network is an easy way of accessing the Internet. When you are out, you can connect to Wi-Fi networks in public places. On the Home screen, tap > Wi-Fi. Make sure to turn Wi-Fi on. -
Page 16: Device Specification
5 Device Specification Physical Characteristics Dimensions (W x H x D) 169 x 77.8 x 9.9 mm Weight 210g Display 6.5” HD+ (720 x 1600) Capacitive multi-touch Stylus Touchpanel Backlight LED backlight User replaceable Battery Power 3.85V / 5,000mAh BOS™ PowerManager Station Expansion Slot MicroSD, up to 512GB 1 Nano SIM is supported by micro SD Card Slot... -
Page 17: Performance Characteristics
Device Specification Performance Characteristics 2.0 GHz Octa Core Processor Android 12 ; upgradeable Operating System to Android 13 4GB RAM / 32GB UFS Flash Memory 3GB RAM / 32GB Flash (Optional) User Environment Characteristics Operating Temp -20°C to 55°C / -4°F to 131°F Storage Temp -40°C to +70°C / -40°F to +158°F Humidity... -
Page 18: Communication Options
Device Specification Communication Options Worldwide : LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B20, B28, B66, WWAN Radio LTE-TDD: B38/B40 WCDMA : B1, B2, B4, B5, B8 GSM : 850/900/1800/1900 supports VoLTE. WiFi: 802.11 a/b/g/n/ac; 1x1 MU-MIMO WLAN Radio Wi-Fi™... -
Page 19: Troubleshooting
You can contact your local sales representative or you can send the device via a delivery service to Blue bird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in adv ance. When the repair is finished, Bluebird will cover the shipping cost. -
Page 20: Warranty And Support
• We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. • If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service. - Page 21 Warranty and Support Charged services • In the following cases, it will be charged when requesting for after-sales service. –– Service request due to inappropriate use of the device by the customer –– Loss of PIN number –– Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) •...
-
Page 22: Warranty Certificate
Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect. - Page 23 CE Warning Hereby, BLUEBIRD INC. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
-
Page 24: Fcc Warning
FCC Warning • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. •... - Page 25 IC Warning This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 26 (GMT Time: +9 Hours) The center is closed on Saturdays, Sundays, and Korean national holidays. Customer Service Center #1103, Gplus Kolon Digital Tower 11F, Digital-ro 26-gil 123, Guro-gu, Seoul, Republic of Korea(08390) Bluebird constantly strives to bring utmost satisfaction to all our customers.
