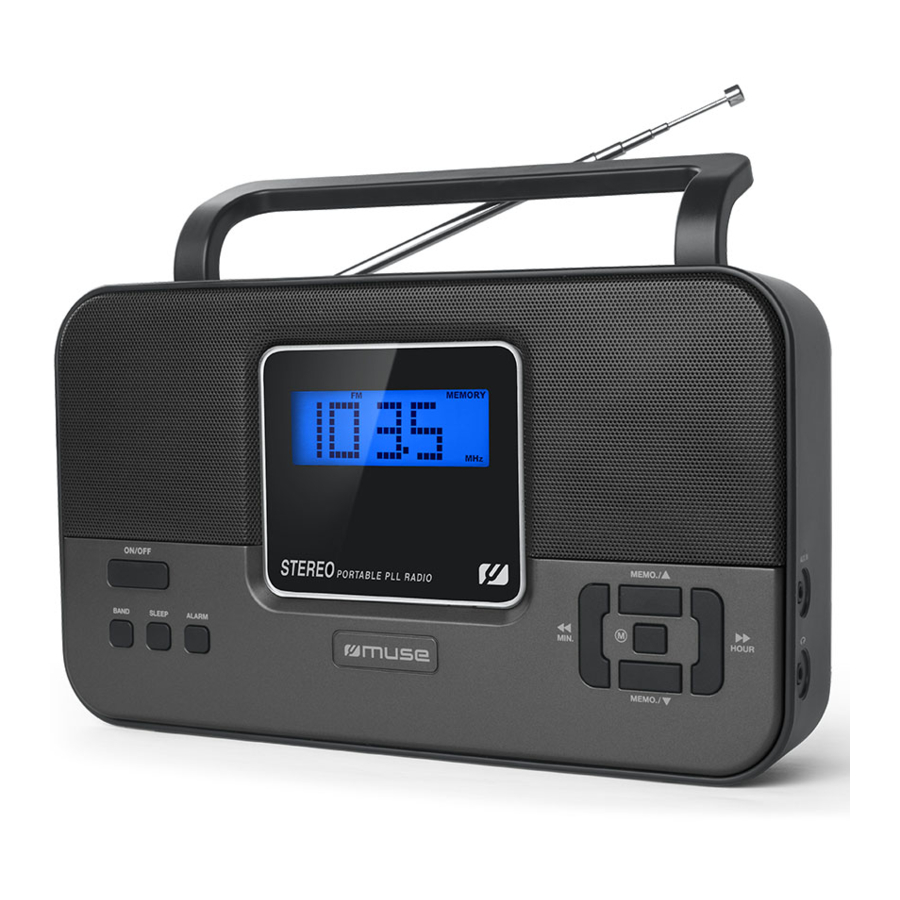

Muse M-087 R - 2-Band Portable Radio PLL Manual

Read the instructions carefully before operating the unit.

LOCATION AND DESCRIPTION OF CONTROLS

1. ON / OFF switch
2. BAND button
3. SLEEP button
4. ALARM button
5. button (MEMO / SET)
6. MEMO. button
7. MIN. HOUR button
8. AUX IN Jack
9. PHONES Jack
10. VOLUME control
11. FM telescopic antenna
12. AC~ power cord
13. Battery Compartment

POWER SUPPLY

1. Remove the battery compartment door by applying thumb pressure to area indicated on battery door and then lift the door out and off the cabinet.
2. Insert 4 x 1.5 V "D" / R20 / UM1 batteries with the + and - marks correctly aligned (not included) into the compartment.
3. Replace the compartment door.

Notes on batteries

• Do not mix different types of batteries or old batteries with new ones.
• Never recharge the batteries, apply heat to them or take them apart.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Attention should be drawn to the environmental aspects of battery disposal.
• The batteries need to be replaced when:
  The volume decreases, or sound is distorted during operation.

NOTE: In order to avoid leakage, always remove the batteries when unit will not be used for a long period of time.

CONNECTING THE AUX

Connect your auxiliary source (e.g.mp3 player) to the AUX input jack on the right side of the unit, the unit will change to AUX function automatically.

Automatic standby mode
The unit automatically switches to standby after approx. 10 minutes without a signal. To switch the unit on again, please follow the instructions mentioned in instruction manual.

POWER ON / OFF THE UNIT

1. Press the ON / OFF to turn on the radio. The display will change to show radio frequency.
2. Press the ON / OFF to turn off the radio. The display will revert to current time.

SET CLOCK

After the batteries are installed, the display will show "00:00".

1. Press once and you will see the flashing display.
2. Press MIN. or HOUR to set the time.
3. Press again when finished.

RADIO

Using the radio

1. Press the ON / OFF to turn on the radio.
2. Press BAND to select AM or FM bands.
3. Press MIN. HOUR or to tune to your desired radio station.
4. Adjust the volume by (10).

To enhance radio reception ability:
FM: Extend and rotate the antenna
AM: Rotate and move the unit horizontally for optimum reception.

Saving Preset Stations

1. Tune to a station to be saved as a preset station ( see "Using the Radio").
2. Press once and you will see a flashing 'MEMORY' on the display.
3. Press MEMO. button to select a preset number.
4. Press to save station as selected preset number.
5. Repeat above steps to preset a maximum of 10 stations for AM and FM respectively.

Selecting Preset Stations

1. Make sure you are in preset mode.
2. Press MEMO. button to select a preset number.

SETTING THE ALARM

1. Press ALARM that you will see a flash ' ALARM' on the display.
2. Press MIN. HOUR to adjust your desired alarm time. The display will revert to current time after 5 seconds from your adjustment.

Stopping the alarm

When the alarm is triggered, press ALARM button to stop it.

TO CANCEL THE ALARM SETTING

1. Press that the display will flash.
2. Press ALARM twice and the 'ALARM' indicator disappear, the alarm stop.

SLEEP TO MUSIC

Press SLEEP to select among off 90.80.70......10 minutes. Then change to the radio automatically and you will see the 'SLEEP' on the display.

LISTENING WITH EARPHONES

Connect the earphones (not included) to the earphone jack on unit.

To prevent possible hearing damage, do not listen at high volume levels for long periods.
Maximum output voltage ≤ 150mV

CONNECTING POWER CORD

1. Connect the detachable AC cord (included) to the AC socket on the rear of the unit.
2. Plug the power cord into 230V~50Hz AC outlet.

Note:

• The AC cord must be unplugged from both the jack on the unit and the power outlet for the unit to run on the batteries.
• When the AC cord is connected from the main unit to the power outlet, the power source automatically switches to AC. You may leave the batteries inside the unit if you wish. There is no battery consumption when the AC cord is connected to a power outlet and/or the the unit.
