MOTOROLA TLK 100 - Two-Way Radio Quick Reference Guide

Overview

1. Battery Cover
2. LED Status Indicator
3. On/Off/Info Button
4. Talkgroup/Contact List Scroll Rocker
5. Push-to-Talk (PTT) Button
6. Volume Button
7. Menu/Programmable Button
8. Charging Contacts
9. LTE Antenna
10. GPS/Wi-Fi
11. High-Output Speaker
12. Microphone
13. LED Display
14. Audio Accessory Port
15. USB Port

LED Indicators for Operational and Charging Status

Battery Capacity Information

Icon	LED Indication		Voice Announcement	Description
		Solid green	Battery high	80%–100% capacity
		Solid amber	Battery medium	60%–80% capacity
		Solid amber	Battery medium	25%–60% capacity
		Blinking red	Battery low	5%–25% capacity
		Blinking red	Battery very low	Less than 5% capacity

Attaching the Battery

1. Align the battery contacts with the contacts inside the battery compartment. Insert the contact side of the battery. Push the battery in gently.

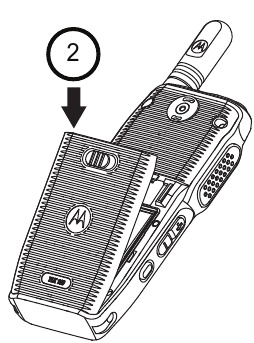

2. Insert the bottom tabs of the battery cover into the slot. Press down the top part followed by the middle part of the battery cover.

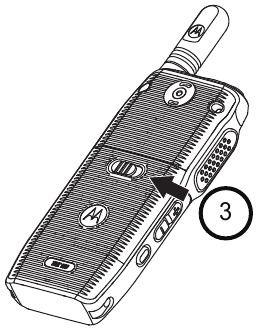

3. Slide the latch into lock position.


Looking After The Radio

Never leave the radio or battery in extreme temperatures (over +60°C/140°F), for example, behind a windscreen in direct sunlight. The radio is not submersible. To clean the radio, use a moistened or antistatic cloth.

Attaching and Removing the Antenna

1. Turn the radio off.
2. Align the bottom part of the antenna to the threaded base on top of the radio.
3. 1. To attach the antenna, turn clockwise until snug. Do not force.
   2. To remove the antenna, turn counterclockwise.

Icons

Description	Icon
Contact List
Battery Level
Battery Charging
Volume Level
Mute Mode
Brightness Level
Do Not Disturb
Voice Announcement
All Alert Tones
Cellular Signal Level
Wi-Fi Signal Level
Location
Software Available
Bluetooth
Scan
Instant Personal Alert (IPA)
Emergency
Area Talkgroup
Radio Stun
Ambient Listening
User Disabled/Suspended

Activating and Provisioning the Radio

Before using the radio, make sure the WAVE Customer account is activated.
To activate the WAVE Customer account, scan the QR code on the label behind the battery or visit the following website: https://waveoncloud.com/activate After the device is activated, provisioning of radio features and programmable button can be configured in the WAVE portal.

Turning the Radio On/Off

To turn the radio on, press and hold the On/Off/Info Button until the LED status indicator lights up.
To turn the radio off, press and hold the On/Off/Info Button until the screen displays powering off animation.

Using the Menu/Programmable Button

You can program the programmable buttons as shortcuts to radio functions in the WAVE portal.
For the default radio setting, short press is assigned to the Menu and long press is assigned to the Contact List.

Using the Radio Menu

To enter and scroll through the menu, short press the Menu/Programmable Button. To scroll through the programmed function in the sub-menu, press the Volume Button. To exit the menu, press the On/Off/Info Button, Talkgroup/Contact List Scroll Rocker, PTT Button, or wait for timer to expire.

On/Off/Info Button

Press the On/Off/Info Button. The radio sounds and displays the emergency and alert list, Instant Personal Alert (IPA) list, battery strength level, cellular strength level, Wi-Fi strength level, software available for installation indicator (restart to install), and radio name. When the radio displays the battery strength level, the battery strength LED status indicator lights up.

Talkgroup List and Contact List

To select Group List, toggle the Talkgroup/Contact List Scroll Rocker.
If Contact List is pre-programmed to your radio, short or long press the Menu/Programmable Button directly to access the Contact List, else manually enter the Contact List with the menu function. To scroll through the Contact List, toggle the Talkgroup/Contact List Scroll Rocker or push the Volume Button. To exit, press the Menu/Programmable Button.

Making Group Calls

The radio must be configured as part of that group to make a call to a group of users. Select a channel with the active group alias or ID. Press the PTT Button. The LED status indicator lights up solid green. The display shows the group call alias. Wait for the Talk Permit Tone to finish (if enabled), speak into the microphone. Release the PTT Button to listen.

Making Private Calls

If Contact List is pre-programmed to your radio, short or long press the Menu/Programmable Button directly to access the Contact List, else manually enter the Contact List with the menu function. Select the preconfigured contact. Press the PTT Button. Once the call is connected, the LED status indicator lights up solid green and displays the subscriber alias. Wait for the Talk Permit Tone to finish (if enabled), speak into the microphone. Release the PTT Button to listen.

Visit the following Web site at:
http://www.motorolasolutions.com/
https://waveoncloud.com/

User Guide and related documents available at:
https://learning.motorolasolutions.com/

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This document is copyright protected. Duplications for the purpose of the use of Motorola products are permitted to an appropriate extent. Duplications for other purposes, changes, additions or other processing of this document are not permitted. Only this electronically-saved document is considered to be the original. Duplications are considered merely copies. Motorola Solutions, Inc., and its subsidiaries and affiliates do not vouch for the correctness of such kinds of copies.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2019 Motorola Solutions, Inc. All rights reserved.
