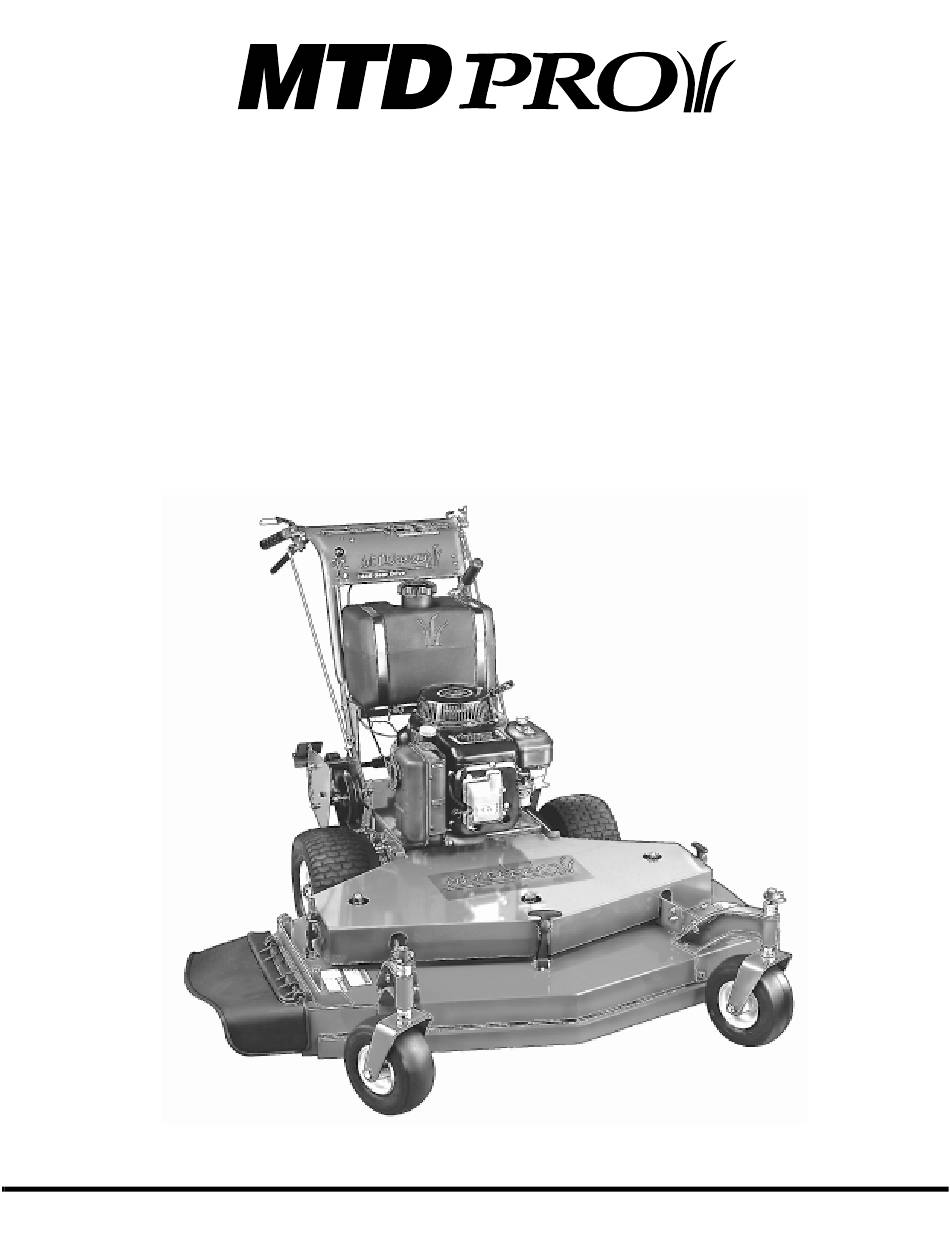

- Page 1 ® 1332G, 1336G, 1448G, 1548GF, 1652G Walk-Behind Commercial Rotary Mowers Professional Turf Equipment OPERATOR’S AND SERVICE MANUAL...
-
Page 2: Table Of Contents
The list of safety precautions should receive particular attention. This manual presents the operating and maintenance instructions necessary to keep your MTD Pro mower at peak efficiency. If properly operated and maintained, your MTD Pro mower will give dependable and trouble-free service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS A. General: Watch for holes, sprinkler heads and other hidden hazards. Read this Operator’s Manual completely before starting the mower. Study the controls and learn the proper Reduce speed when making sharp turns. sequence of operation. Retain Operator’s Manual in a Always have proper footing on slopes and hill sides and safe place for future reference. -
Page 4: Safety Decals
SAFETY DECALS Keep safety decals clean. Replace any safety decal that is damaged, destroyed, missing, painted over or can no longer be read. Replacement safety decals are available through your dealer. (Left and right sides are determined standing behind the unit in the operating position.) WARNING OPEN BELT DRIVE Do not operate without discharge deflector... - Page 5 SAFETY DECALS Located on top of battery cover. To Avoid Injury: • Always connect the “ground” Serious bodily injury may result from failure (Black) cable last and remove it first whenever to follow safe operating procedures. performing any battery 1. Read the Operators Manual before maintenance.
-
Page 6: Specifications
SPECIFICATIONS POWER UNIT Engine: 14, 15 or 17 HP Kawasaki. Type: 4-cycle, single-cylinder, recoil start. (except Kawasaki 17 HP/electric start). Air Cleaner: Dual element, dry-type. Lube System: Pressurized. Fuel Tank: 5 gallons, polyethylene. Transmission: 5 speeds forward and 1 speed reverse. Traction Drive: Double V-belts. -
Page 7: Blade Clutch
OPERATING INSTRUCTIONS Releasing the operator presence levers with either the transmission shift lever in gear or the blade clutch engaged will shut off the engine. B. Initial Adjustments Disconnect the spark plug wire. Check the tire pressure. Drive Wheels should be inflated to 25 psi. - Page 8 OPERATING INSTRUCTIONS Move the mower outdoors. Check the engine gasoline Push the blade clutch lever forward until it engages and level. When filling the tank, stop when the gasoline the cutter blades start rotating. reaches one inch from the top. This space must be left Shift the transmission into first gear.
-
Page 9: Cutting Height Adjustment Table
CUTTING HEIGHT ADJUSTMENT TABLE Note: The front edge of the cutting deck should be 1/8” - 1/4” below the rear edge of the deck so that the blades are cutting grass in only the front half of their circular path. This decreases friction and reduces the drive power required. 1/4: Blade Spacers 1/2”... -
Page 10: D.lubrication Chart
MAINTENANCE D. LUBRICATION CHART: See Figures 3, 4 & 5 for Item Location NUMBER OF GREASING POSITIONS ITEM DESCRIPTION 32” & 36” 48” & 52” DAILY Cutter Blade Spindle Bearings Caster Wheel Bearing Caster Wheel Pivot Shafts Deck Idler Pulley Pivot Arms EVERY Drive Wheel Bearings HOURS... -
Page 11: To Change The Transmission Drive Belt
MAINTENANCE Figure 6 Figure 7 d. Slip the long blade drive belt off of the pulleys. e. (48" ONLY) Loosen the idler pull rod which holds the idler pulley tight against the short blade drive belt. (Item K, Figure 8.) f. -
Page 12: To Change A Spindle Assembly
MAINTENANCE dowel on top of the spindle and tap it with a hammer to drive the spindle out of the bearings and the spindle housing. e. Pull the seal spacer out of the top seal. f. Using a large screwdriver, pry the seals out of each end of the spindle housing. -
Page 13: Replacement Parts - Spindle
MAINTENANCE There is a Repair Kit available for the Part No. 057412 Spindle. SPINDLE REPAIR KIT - PART NO. 054433 - INCLUDES: Ref. # PART # Description # Incl. 082961 Tab Lockwasher 031913 Top and Bottom Seal 035009 Bearing SPINDLE - PART No. 057412 - REPALCEMENT PARTS Ref. -
Page 14: Maintenance Record
MAINTENANCE RECORD DATE WORK PERFORMED DATE WORK PERFORMED... - Page 15 MAINTENANCE RECORD DATE WORK PERFORMED DATE WORK PERFORMED...
-
Page 16: Warranty
1. What Is Covered By This Warranty. This limited warranty covers any defect in materials or workmanship in your MTD Pro equipment for two year from the date of purchase for the first user purchaser. MTD Pro will replace or repair any part or parts without charge through your authorized MTD Pro dealer.
