Summary of Contents for TEGRAS Concept Filnet B100 Ultrasonic

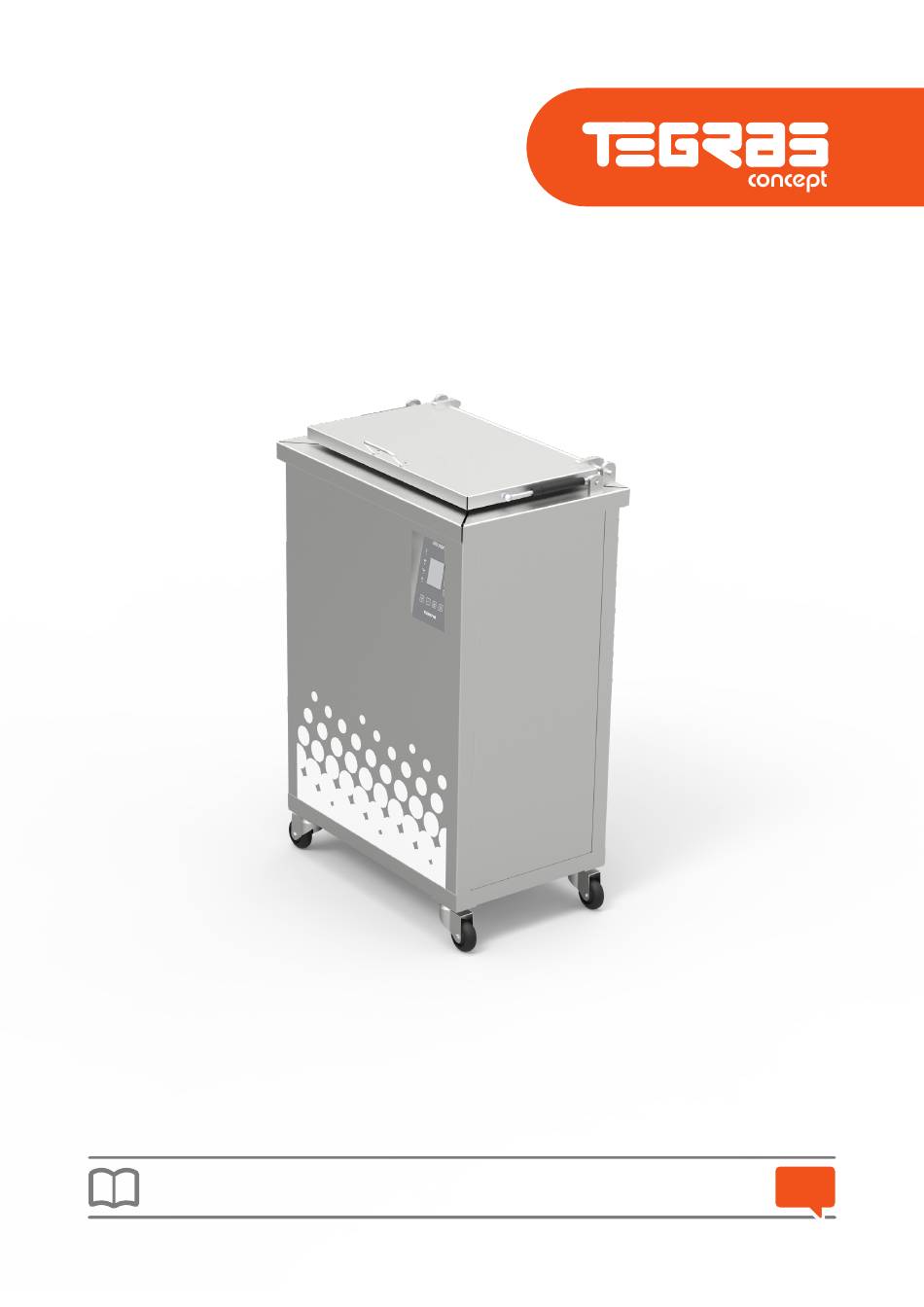

- Page 1 Filnet B100 Ultrasonic Ultrasonic cleaning equipment user manual...
-
Page 2: Training Services
We have every type of replacement available for your equipment as well as related accessories. 941445056 941445056 This instruction manual is protected by copyright. We reserve all rights, especially the right to produce, translate and create using electronic systems. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 2... - Page 3 5-24 safety warnings 6-24 intended conditions of use 8-24 get to know your machine 9-24 accessories and related equipment 10-24 operating instructions 11-24 use of chemical products 17-24 transport 19-24 Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 3...
- Page 4 20-24 problem solving guide 21-24 Technical specifications: 22-24 conditions of the guarantee 23-24 declaration of compliance 24-24 Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 4...
- Page 5 IMPORTANT NOTE! This symbol warns of information relating to the optimal use of the equipment in order to avoid possible handling errors. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 5...
-
Page 6: Safety Warnings
TEINNOVA’s Technical Assistance Service on telephone number: +34 941 44 50 56. Before opening the cover completely, open and then close it again in order to release the steam. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 6... - Page 7 Do not use power cables and/or plugs that are in poor condition. Do not touch, plug in or unplug the power cable and/or the plug with damp hands. Before starting up the equipment, it is necessary to ensure that it is correctly earthed and that the supply voltage is suitable. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 7...
-
Page 8: Intended Conditions Of Use
FILNET B100 ULTRASONIC is equipment used for immersion cleaning thanks to the combined action of the temperature and the SONICLEAN chemical and the ultrasonics. The temperature is controlled with two resistance heaters to heat the water inside. The ultrasonics are generated by an ultrasonic generator incor- porated in the machine. -
Page 9: Get To Know Your Machine
Components: 1- Body 2- Drain 3- Control panel 4- Handle 5- Wheels 6- Cover Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 9... -
Page 10: Optional Accessories
A liquid chemical product specifically for removing encrusted and burnt in grease on all types of kitchen utensils in the catering industry. Cod. PQ8200100 SONIPOWER BOOSTER A liquid chemical that improves the cleaning performance of the Comegras Sonic detergent. Cod. PQ8200200 Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 10... -
Page 11: Control Panel
Press this key for three seconds to enter the setting of the number of communication generators. The address of the local control generator is A1-A6. For example, when set to A5, the controller can control the operation of 5 generators at the same time. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 11... - Page 12 Address 1 Generator Communication Failure E-10 E-20 Address 2 Generator Communication Failure Address 3 Generator Communication Failure E-30 Address 4 Generator Communication Failure E-40 E-50 Address 5 Generator Communication Failure Address 6 Generator Communication Failure E-60 Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 12...
- Page 13 Do not fill the tank up to the top in order to avoid the mixture overflowing when inserting the ob- jects to be cleaned. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 13...
- Page 14 HEAT ON/OFF button to turn on the cleaning tank heating. 2- When there are too many bubbles in the cleaning tank, press the DEA button to activate the degassing function of the ultrasonic wave. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 14...
- Page 15 Be careful when submerging the basked in the tank in order to avoid splashing. The machine does NOT work if it is empty, so to start it we will have to fill it up to its optimal capacity Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 15...
- Page 16 Closing your FILNET: Close the cover when the job has finished. Do not turn off your FILNET unless it is going to be unused for a prolonged period of time. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 16...
- Page 17 SONICLEAN DETERGENT and SONIPOWER BOOS- - Do not store in temperatures higher than 30oC. TER. - Do not mix with any other chemical product. The maximum storage time is 6 months. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 17...
- Page 18 Law 31/1995 for Occupational Risk Prevention. PPE that has to be used when handling your FILNET B100 Ultrasonic: complete facial protection This protects against particles and splashes. The standard that governs this PPE is UNE EN 166:2002 “Personal eye-protection - Specifications”.
- Page 19 The machine must always be empty in a horizontal position for transpor- when transporting it. ting it. This would cause significant da- mage in the machine and consequent- ly it would not function correctly. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 19...
-
Page 20: Maintenance And Care
Old appliances contain valuable materials for recycling and subsequent use. Do not throw the packaging away with do- mestic waste. Take it to an official collection point. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 20... -
Page 21: Problem Solving Guide
Use of chemicals that are Use chemicals recommended by TEINNOVA Page 18 not recommended by TEINNOVA The chemical ratio is lower than that Use the chemical ratios recommended by Page 18 recommended by TEINNOVA. TEINNOVA. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 21... -
Page 22: Technical Specifications
FILNET B100 Ultrasonic Features Voltage and frequency: 220V 50/60Hz 110V 60Hz Ultrasonic power: 1200W 900W Heater power: 2000W 1000W Ultrasonic frecuency: 28KHz Number of transducers: 24 Pcs. Exterior dimensions: 800x530x1060mm Interior dimensions: 530x290x550mm Interior volume: 85 L Weight:... -
Page 23: Conditions Of The Guarantee
1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to the equipment without giving prior notice. Filnet B100 ultrasonic Ultrasonic cleaning equipment pg. 23... -
Page 24: Declaration Of Compliance
Telephone: +34 941 44 50 56 Fax: +34 941 25 24 71 Website: www.teinnova.net MODEL: FILNET B100 ULTRASONIC TECAI INNOVA, S.L., with full responsibility, certifies that the model of the machine described above complies with all the essential requirements of the following directives:...
