TEGRAS Concept eon User Manual

Electric brushing robot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Electric brushing robot
user manual
EN
original manual translation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eon and is the answer not in the manual?

Questions and answers

Related Manuals for TEGRAS Concept eon

Summary of Contents for TEGRAS Concept eon

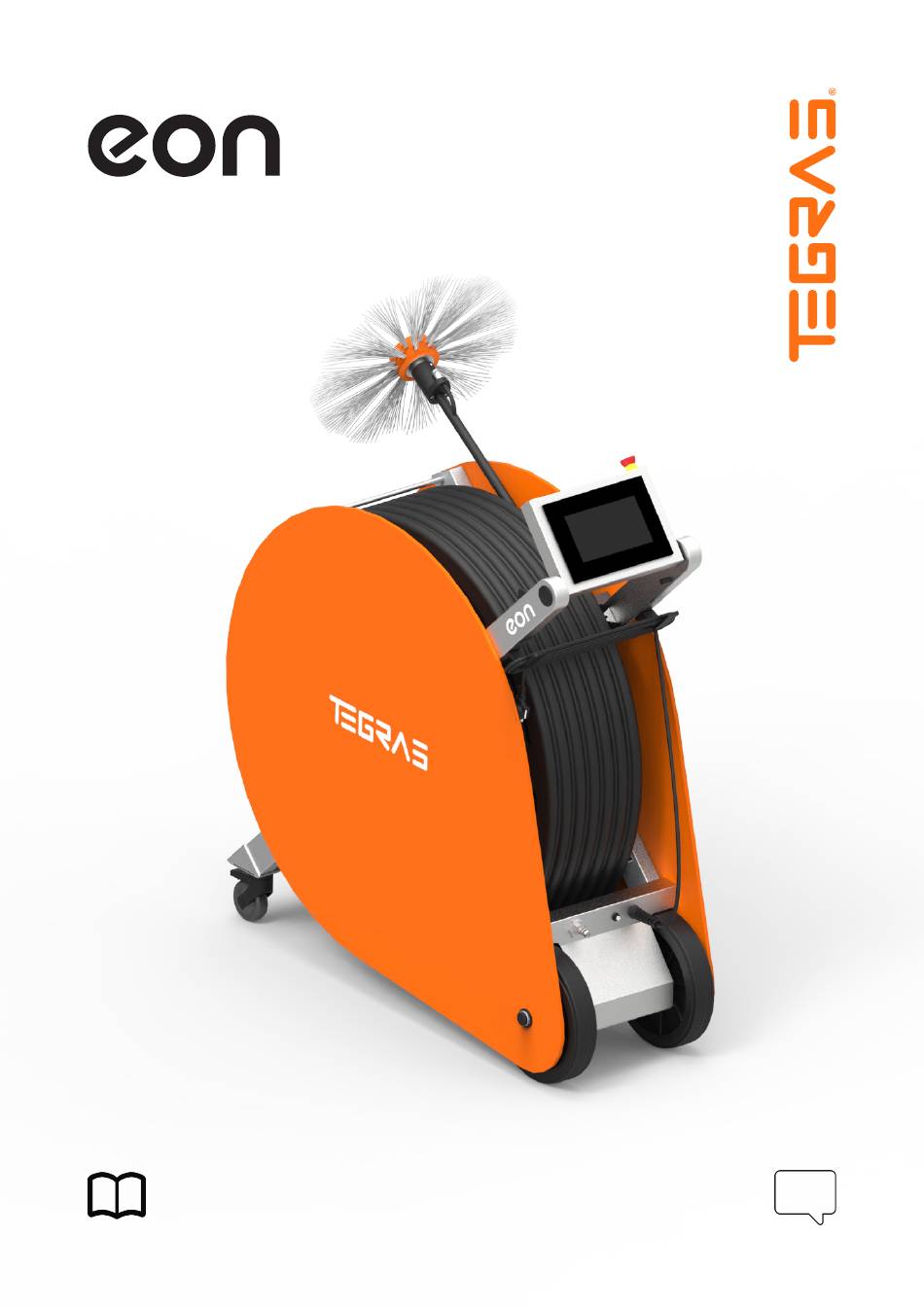

  • Page 1 Electric brushing robot user manual original manual translation...

  • Page 2: Technical Service

    introduction Dear customer: Thank you very much for placing your trust in a quality product from TEINNOVA. This product is manufactured using modern production processes and extensive quality assurance measures. We try to do everything possible to ensure that you are satisfied with this product and can work with it without any problems.
  • Page 3 index symbology 5-36 safety warnings 6-36 conditions of use 7-36 know your machine 8-36 control panel 9-36 remote control 10-36 accessories and related equipment 11-36 operating instructions 17-36 Electric brushing robot 3-36...
  • Page 4 index use of chemical products 30-36 transport 31-36 maintenance and care 32-36 waste management 33-36 technical specifications 34-36 warranty conditions 35-36 CE declaration of conformity 36-36 Electric brushing robot 4-36...
  • Page 5 symbology All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained in this section, it is important to read with special attention the text related to this symbology since it is related to personal and equipment safety.

  • Page 6: Safety Warnings

    Before starting the equipment, make sure that the brush is inside the duct to be cleaned. Be careful to place your EON on a smooth and stable surface. Lock the brakes on the front wheels to keep the machine stable while working.

  • Page 7: Conditions Of Use

    EON is a machine for cleaning both circular ducts, with diameters of 200-600mm, and rectangular ducts. The ducts can be for smoke extraction, chimneys or even air conditioning installations. Suitable accessories must be provided for each duct.

  • Page 8: Know Your Machine

    know your machine Components: 1- Control panel 9-Connection with your IFOAM 2- LED strip 10- Resettable fuse 3- On/Off button 11- Electrical connection 4- Control bracket 12- HMI screen 5- Power cable support 13- Emergency stop button 6- Reel rotation lock 14- Brush 7- Rear wheel brake 15- Brush coupling...

  • Page 9: Control Panel

    control panel Main control panel: Touch screen The equipment is controlled via the touch screen. General Switch Switching the equipment on and off Emergency Mushroom Emergency stop LED Strip Indicates the status of the machine Electric brushing robot 9-36...

  • Page 10: Remote Control

    Remote control: Operate the timer on the EON brushing machine so that its Timer rotary movement lasts for the selected time. Operate the motor of the EON planing machine so that its Left Turn rotational movement is counterclockwise.
  • Page 11 Accessories included: Combined brushing/foaming-rinsing hose 15-meter twin-tube flexible shaft for performing the foaming/rinsing and brushing functions of your EON. Connections to the machine are made by means of individual quick connectors. Cod. AC3303612 Remote control Remote control unit with which you can operate your EON equipment.
  • Page 12 The range of use is from 300mm to 600mm diameter. Cod. AC3101600 Anti-breakage protector Anti-breakage protector for the shaft and hose of your EON equipment. Cod. AC3303112 Protective weatherstrip Protective weatherstrip of 5 meters for registration.
  • Page 13 accessories and related equipment PBT brushes PBT (butylene terephthalate) brushes recommended for cleaning ducts with grade 2 grease (medium soiling). Dimensions Cod. 7,87 CP1023020 9,84 CP1023025 11,81 CP1023030 13,78 CP1023035 15,75 CP1023040 17,72 CP1023045 19,69 CP1023050 23,62 CP1023060 Mixed Brushes Steel and nylon brushes recommended for cleaning ducts with grade 3 grease (high soiling).
  • Page 14 accessories and related equipment PACK X5 PBT Pack of 6 PBT brushes recommended for cleaning ducts with grade 2 grease (medium dirt). The brushes range in size from 200mm to 600mm diameter. Cod. CP1203030 Dimensions Cod. 7,87 CP1023020 11,81 CP1023030 15,75 CP1023040 19,69...
  • Page 15 accessories and related equipment Related equipment: ifoam compact Intelligent active foam generator and rinse aid. 220V 50Hz; Cod. TG3320310 110V 60Hz; Cod. TG3320311 Electric brushing robot 15-36...
  • Page 16 Steps for a correct installation of your EON: Fitting your EON: Place your EON on a smooth and stable surface. Once the machine is in an optimal position for the work to be carried out, lock the brakes on the rear wheels so that the machine remains stable.
  • Page 17 Connecting your EON to IFOAM COMPACT equipment: The EON equipment must be used in combination with the IFOAM equipment for its operation. This connection is made by means of the low pressure hose incorporated in the IFOAM unit.
  • Page 18 Brush assembly: The head of your EON is designed taking into account the possibility of incorporating special brushes to make the work more efficient and comfortable. These brushes are only supplied by Teinnova. Fit the first retaining disc as shown in the figure.
  • Page 19 operating instructions Release the locking knob and remove the second retaining disc as shown in the figure. Remove the brush as shown in the figure. Remove the retaining disc as shown in the figure. Electric brushing robot 19-36...
  • Page 20 Montaje del centrador: Mount the body of the centring device on the hose end of your EON as shown in the figure and fix it with two knobs. For ducts from 300 to 500mm, place the centring device at 470mm, as shown in the image, so that the work is done properly.
  • Page 21 Unlock the hose reel brake: Unlock the reel brake of your EON as shown in the figure. Once the reel is released, release the necessary metres to place the brush inside the duct and start working. Remember not to operate the brush when it is outside the duct as this may cause damage to persons or objects.

  • Page 22: Switching On The Equipment

    By means of the control panel on the HMI screen, the function to be performed is selected. Depending on the function selected, the LED on the unit changes colour. Switching on the equipment: Switch on your EON by pressing the on/off button. The LED strip will turn green, dimming up and down, and the main display will turn on.
  • Page 23 operating instructions Turn the brush to the left: To activate the left-hand brush rotation, press the icon , which will light up green. The LED strip will light up progressively, in green, from right to left, remaining in continuous movement. Turn the brush to the right: To activate the clockwise rotation of the brush, press the icon which will light up green.
  • Page 24 operating instructions Select automatic switchover: Press the icon to activate the automatic mode. You will be taken to another screen. Here you select the time, from 10 to 60 seconds, in which the brush will change direction. Once selected, press the icon on the screen again and the brush will start to rotate to the right.

  • Page 25: Activate Remote Control

    operating instructions Activate remote control: Press the icon to activate the control. The display will remain the same with the remote control icon activated. The knob must be used to select the function, and then the icons will light up and the LED strip will change according to the selected function.
  • Page 26 operating instructions Stop the brush rotation: Press the stop button on the control unit to stop the brush from rotating. The LED strip will turn green in colour, with increasing and decreasing intensity, thus remaining in standby mode. Select automatic mode: To activate the automatic mode, press the icon , which appears on the remote control at the same time as the unlocking button.

  • Page 27: Equipment Settings

    Warnings and settings of your EON equipment: Proaxis system: This system is used to protect the shaft against breakage, blocking its operation. A screen like the one in the picture will appear and the LED strip will turn red.

  • Page 28: Switching Off The Equipment

    Steps for a correct shutdown of your EON: Switching off the equipment: Turn off your EON by pressing the on/off button. The LED strip will turn off. Emergency stop: If a dangerous situation arises, the emergency stop button must be pressed and the device will stop immediately.
  • Page 29 Disconnecting your EON with IFOAM COMPACT equipment: Disconnect the liquid hose from your IFOAM. Disconnect the liquid connection hose of your IFOAM from your EON equipment. Electric brushing robot 29-36...
  • Page 30 COMEGRAS FOAM ACTIVE is the chemical used for the operation of your EON with a foamer. It is a degreaser especially indicated for cleaning, sanitising and deodorising areas particularly dirty with grease and burnt residues in installations and materials in the food industry such as meat processing plants, slaughterhouses, restaurants, dairies, etc.
  • Page 31 transport The machine has been designed to be transported in a small van. During transport the machine must be securely tied down to prevent any damage. It should be placed in its normal working position (vertical) and the brakes on the rear wheels should be applied. It is not advisable to place the machine on a transport pallet or similar.

  • Page 32: Maintenance And Care

    Keep the equipment as clean as possible, storing it in a place protected from the weather. After you have finished using your EON equipment it is important to clean the liquid circuit of the equipment by rinsing. Keeping the equipment stored with chemicals in the internal ducts of the machine can reduce the life of the components.

  • Page 33: Waste Management

    waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not throw electrical appliances in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recycling process.

  • Page 34: Technical Specifications

    technical specifications Features 230V / 50-60Hz 110V / 50-60Hz Engine power: 370 W max. 0 - 3000 rpm Engine rotation speed: 0 - 500 rpm Engine operating speed: Less than 70 dB Noise level: Right / Left Direction of rotation: Electric Control system: HMI screen...

  • Page 35: Warranty Conditions

    warranty conditions 1. “TEINNOVA” guarantees its products for a period of not apply said guarantee until coverage has been 15 days as regards aesthetic defects or faults which are expressly proven. noticeable with the naked eye. In terms of all other In the case that the product is covered, “TEINNOVA”...

  • Page 36: Ce Declaration Of Conformity

    CE declaration of conformity MODEL: SERIAL Nº: TC31204140000 - TC31204149999 MANUFACTURER’S DATA: Manufacturer’s name: tecai innova s Telephone: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, S.L., with full responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
