TEGRAS Concept iFoam Mini User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
o
Intelligent active foam generator
User manual
ENG
Original manual translation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iFoam Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TEGRAS Concept iFoam Mini

Summary of Contents for TEGRAS Concept iFoam Mini

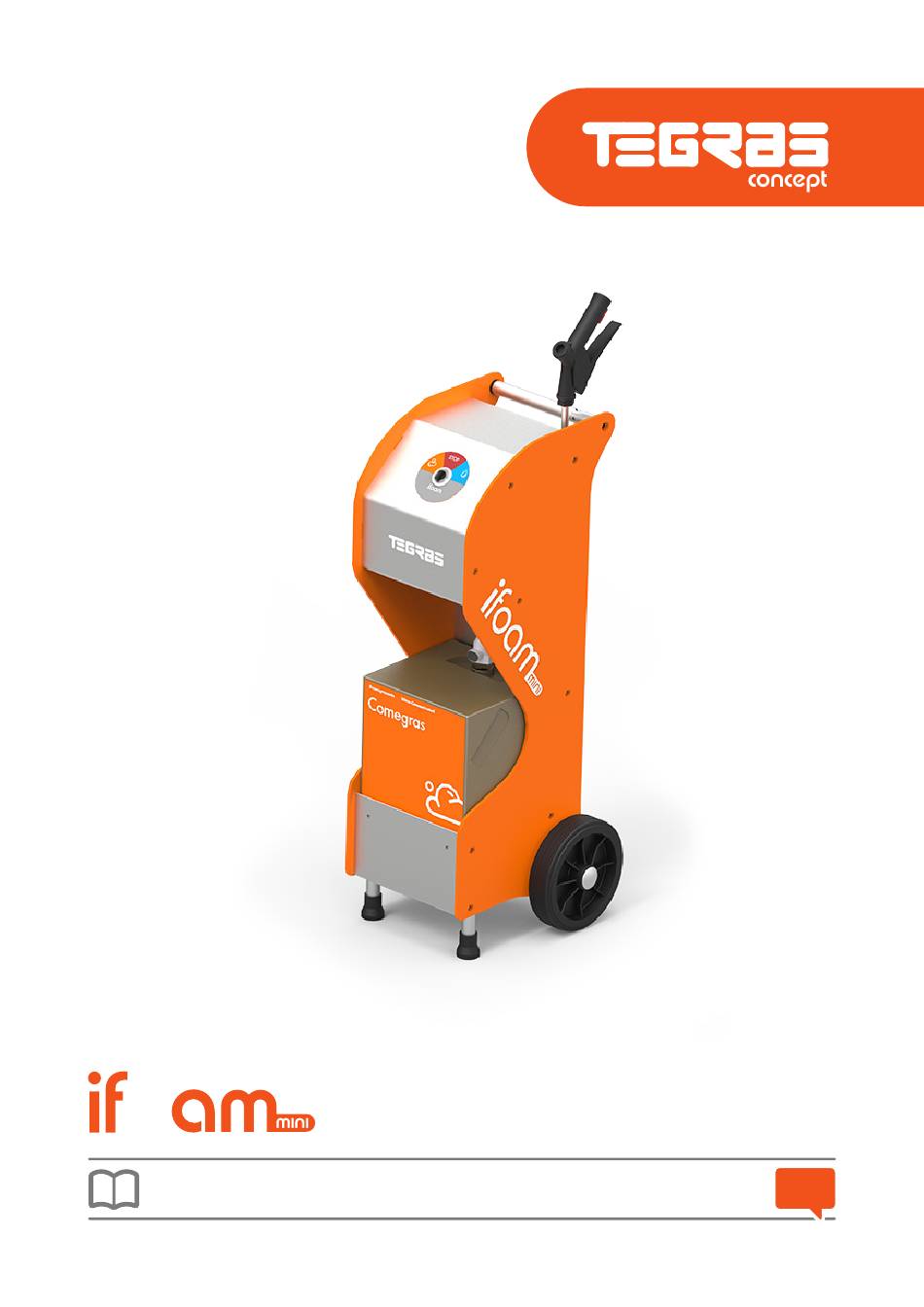

  • Page 1 Intelligent active foam generator User manual Original manual translation...

  • Page 2: Training Services

    introduction Dear client: Many thanks for having placed your trust in a quality product from TEIN- NOVA. This product has been developed with modern manufacturing procedures and a range of measures in order to guarantee quality. We endeavor to do everything possible so that you are satisfied with this product and can work with it without any problems.
  • Page 3 index symbols 5-30 safety warnings 6-30 conditions of use 7-30 know your machine 8-30 control panel 9-30 accessories and related equipment 10-30 operating instructions 14-30 use of chemical products 23-30 Intelligent active foam generator 3-30...
  • Page 4 index transport 24-30 maintenance and care 25-30 waste management 26-30 troubleshooting guide 27-30 technical specifications 28-30 guarantee conditions 29-30 declaration of conformity “CE” 30-30 Intelligent active foam generator 4-30...
  • Page 5 symbols All of the graphic symbols shown in this manual as well as those indicated on the equipment itself are explained in this section. It is important to read the text relating to these symbols with special care as it concerns personal and equipment safety.

  • Page 6: Safety Warnings

    Adequately secure the IFOAM MINI in a vertical position and lock the wheels when transporting it in a vehicle. Do not open the back cover of your IFOAM MINI or tamper with any of the equipment’s internal elements. In the event of a breakdown, get in touch with TEINNOVA’s Technical Assistance Service on telephone number: +34 941 44 50 56.

  • Page 7: Intended Conditions Of Use

    IFOAM MINI is a machine for generating and applying active foam and for subsequently rinsing with water. It is suitable for working in kitchens and food companies as well as for using tested aggressive chemical products. It can be used in flues and extraction hoods.
  • Page 8 get to know your Components: 1- Control panel 7- Foam/rinse exit point 2- Front legs 8- Power outlet 3- Transport handle 9- Mains water outlet 4- Chemical compartment 10- Compressed air outlet 5- Back wheel 11- Lance support 6- Lance for low pressure 12- Lance hook Intelligent active foam generator 8-30...

  • Page 9: Main Control Panel

    control panel Main control panel: Rinse option Activate the rinse system by injecting water at 6 bar. This function should always be performed with the nozzle with four outlets. Stopping the machine Stop the functioning of the machine. Foam option Activate the foam creation system and its injection at 6 bar pressure.
  • Page 10 It is included and integrated in the IFOAM MINI. Code: AC3303301 Electric power supply cable 1.5 8 metre cable. The IFOAM MINI power supply is effected through a specific connector. The connection to mains electricity corresponds to the standard outlet.

  • Page 11: Optional Accessories

    Optional accessories: Hose reel for mains water A hose reel that makes it possible to supply your IFOAM MINI with mains water from an outlet far from the cleaning area. The length of the hose is 15 metres.
  • Page 12 Low pressure 90 cm lance A 90 cm lance specifically for rinsing and producing foam at low pressure. It is not included in the IFOAM MINI. Code: AC3303302 Auxiliary tank 30l Liquid tank for transporting water in workplaces where there is no access to a mains water supply.

  • Page 13: Related Equipment

    accessories and related equipment Related equipment: forte Pneumatic brushing robot for cleaning ducts. Code: TG3310102 multipro Electro-pneumatic brushing robot for cleaning ducts. Code: TG3310202 Vane compressor that generates an output of compressed air of 240 litres at 10 bar. 220V 50Hz. Code: TG3330201 110V 60Hz.
  • Page 14 (blue in colour) especially for the machine. Connect the cable to the mains electricity and then connect it to your IFOAM MINI. The connection to your IFOAM MINI is made by turning the blue connector to the right, as shown in the image.
  • Page 15 Connecting your IFOAM MINI to the compressed air generator: The IFOAM MINI equipment must be used in combination with a compressed air generator for its foam production function. This compressed air generator should have a minimum provision of 80l/m at 5 bar. It is recommended to use a compressed air generator sold by TEINNOVA.
  • Page 16 Remove the cap from the nozzle in the Bag-in-Box as is shown in the image. Failing to remove this cap when connecting the Bag-in-Box to your IFOAM MINI will cause damage to the machine. Intelligent active foam generator 16-30...
  • Page 17 ¡CLIC! The first time the Comegras Box is connected to your IFOAM MINI it will take a few minutes for it to start taking in the chemical as it has to suck out all the excess air in order to create the vacuum. Once the vacuum is created the chemical will be sucked in continuously.
  • Page 18 Using in low pressure mode: The IFOAM MINI’s low pressure system can be connected to a lance for producing foam or rinsing and to a TEGRAS brushing robot. The connection will be selected depending on the function desired.
  • Page 19 It is connected by means of a low pressure hose which is also used to connect the low pressure lance. The connection should be made when your IFOAM MINI is switched off. Connect the liquids hose to your IFOAM MINI.
  • Page 20 Selecting the function to be performed: Your IFOAM MINI has a selector button which is used to select the function to be performed. The functions that can be performed with your IFOAM MINI are rinsing and producing foam.
  • Page 21 After performing this step, place the selector button in STOP mode. Remove the water inlet connection from your IFOAM MINI in the way shown in the image. Remove the liquid outlet connection from your IFOAM MINI in the way shown in the image.
  • Page 22 operating instructions Remove the compressed air inlet connection from your IFOAM MINI in the way shown in the image. Remove the compressed air inlet connection from your IFOAM MINI in the way shown in the image. Remove the mains electricity connection from your IFOAM MINI by turning the connector to the left and pulling it out as shown in the image.
  • Page 23 COMEGRAS BOX is the chemical used for operating the IFOAM MINI. It is a degreaser especially designated for cleaning, sanitising and deodorising dirty areas that are especially greasy and areas with burnt remains in facilities and materials in the food industry such as the meat and dairy industries, abatoirs, restaurants, etc.
  • Page 24 transport The machine has been designed to be able to transport it in a small van. When transporting the machine it should be firmly fixed in order to prevent any type of damage. Additionally, it should be placed in its normal working position (vertical). Placing the machine on a transport pallet or anything similar is advised against.

  • Page 25: Maintenance And Care

    maintenance and care Keep the machine as clean as possible. Keep the equipment somewhere that is protected from weather effects and at a temperature between 0 and 40 After having finished using your IFOAM equipment it is important to clean the equipment’s liquid circuit by performing the rinse.

  • Page 26: Waste Management

    waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process.

  • Page 27: Problem Solving Guide

    problem solving guide look up problema possible cause solution No foam is produced or The passageway for liquids is clo- Squeeze the lance’s trigger Page 18 the quality is not good sed in the lance handle enough Hoses badly connected Connect the hoses correctly Page 18 y 20 Foam...

  • Page 28: Technical Specifications

    Features IFOAM MINI 220V / 50Hz 110V / 50 - 60Hz Hydraulic power supply: Minimum pressure 2 bar Minimum pressure 29 psi Compressed air supply: Minimum 80l/min 5bar Minimum 2,83cfm 72,52psi Pump power: 120W Maximum outlet pressure: 6,9 bar / 100 psi...

  • Page 29: Conditions Of The Guarantee

    conditions of the guarantee 1. “TEINNOVA” guarantees its products for a period of product’s non-conformity and it shall not apply said gua- 15 days as regards aesthetic defects or faults which are rantee until coverage has been expressly proven. noticeable with the naked eye. In terms of all other manu- In the case that the product is covered, “TEINNOVA”...
  • Page 30 “CE” MODEL: IFOAM MINI SERIAL NUMBER: TG33203310000 - TG33203319999 MANUFACTURER INFORMATION: Manufacturer name: tecai innova s Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies...
