Plantec REEL K60CXW Mounting Instructions

Planar mobile communications antenna

Planar Mobile Communications Antenna K60CXW

WLAN 2400 MHz

• Mountable on glass and non-metallic materials

• No changes and modifications on the car body

• Mounting by adhesive bonding possible on non-metallic surfaces

(adhesive bonding antenna)

Technical changes reserved.

Liability excluded for printing mistakes,

also for mistakes in technical data and

illustrations.

Status 10/08

Site 1 of 4

Window Mounting

Made

Germany

Table of Contents

Need help?

Do you have a question about the REEL K60CXW and is the answer not in the manual?

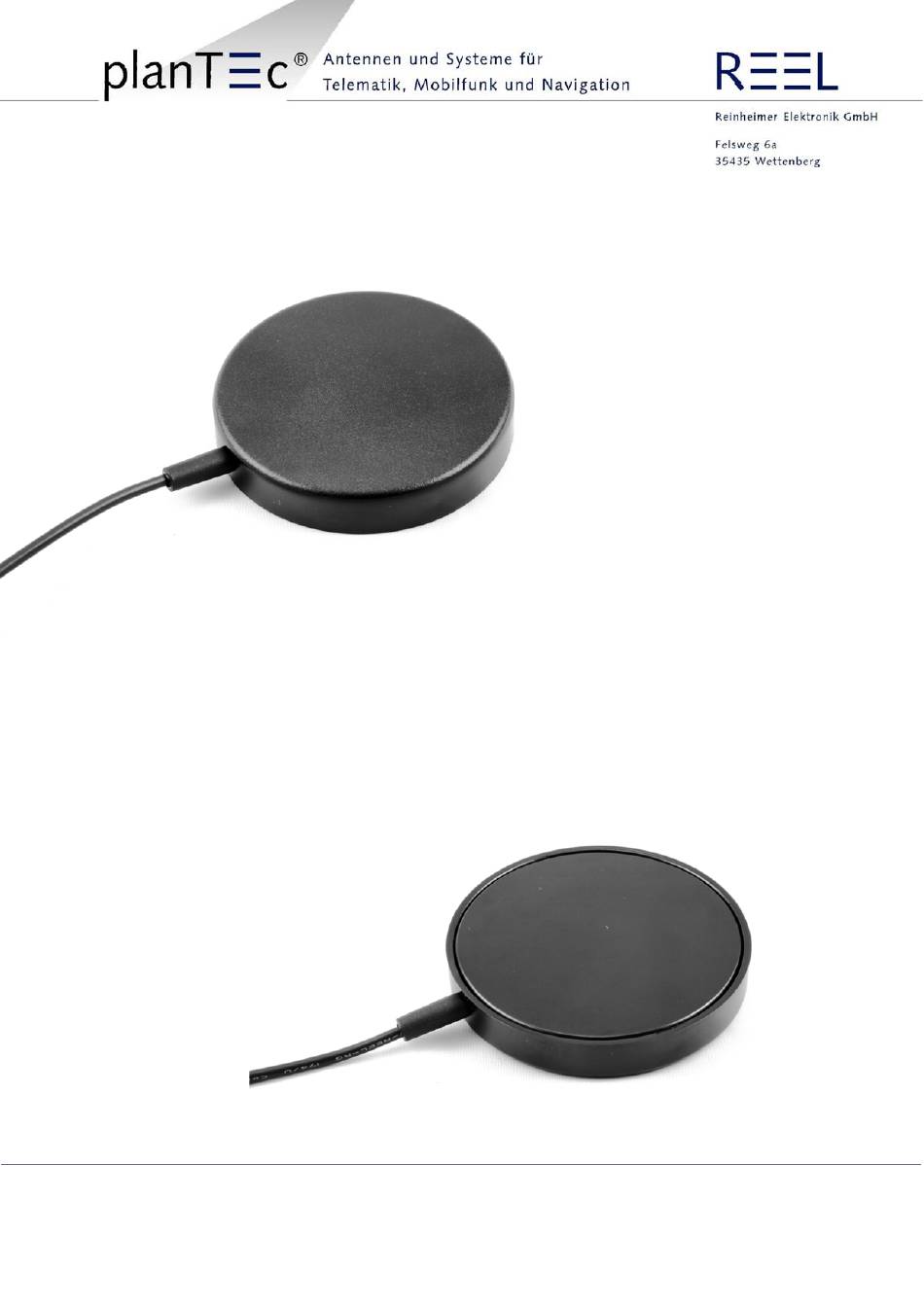

Page 1 Planar Mobile Communications Antenna K60CXW WLAN 2400 MHz Window Mounting Made Germany • Mountable on glass and non-metallic materials • No changes and modifications on the car body • Mounting by adhesive bonding possible on non-metallic surfaces (adhesive bonding antenna) Technical changes reserved.
Page 2 Technical Data WLAN Frequency Range 2400 MHz VSWR* < 2.0 for cable longer than 1.50m Peak Gain* +8 dBi typ. Power max. 10 W * measured with 0.60m cable on 30x30cm ground plane Mechanical Data Dimensions (ØxH) ca. 68 mm x 12 mm Temperature Range -25°C to +85°C Connection (Standard)
Page 3 Radiation diagram (typ.)* -180 WLAN 162 171 -171 -162 -153 -144 -135 -126 -117 -108 Peak Gain +2dBi peak Gain +8 dBi * measured with 0.60m cable on 30x30cm ground plane Technical changes reserved. Liability excluded for printing mistakes, also for mistakes in technical data and Status 10/08 illustrations.
Page 4 Mounting Instructions • To avoid mechanical stress the antenna should not be attached on doors or flaps. • No extra ground planes are necessary for this antenna (ground plane inside). • The Operation of the antenna is only guaranteed by installation with the delivered sticker. •...
