Plantec K60ZAD Manual

Planar combination antenna, gsm quadband + umts + gps high gain, desk mounting

Planar Combination Antenna K60ZAD

GSM Quadband + UMTS + GPS high gain

• Super broadband antenna + UMTS

• No changes and modifications on the car body

• Mounting by adhesive bonding on all surfaces possible

(adhesive bonding antenna)

Technical changes reserved.

Liability excluded for printing mistakes,

also for mistakes in technical data and

illustrations.

Status 10/08

Site 1 of 4

Desk Mounting

Made

Germany

Table of Contents

Need help?

Do you have a question about the K60ZAD and is the answer not in the manual?

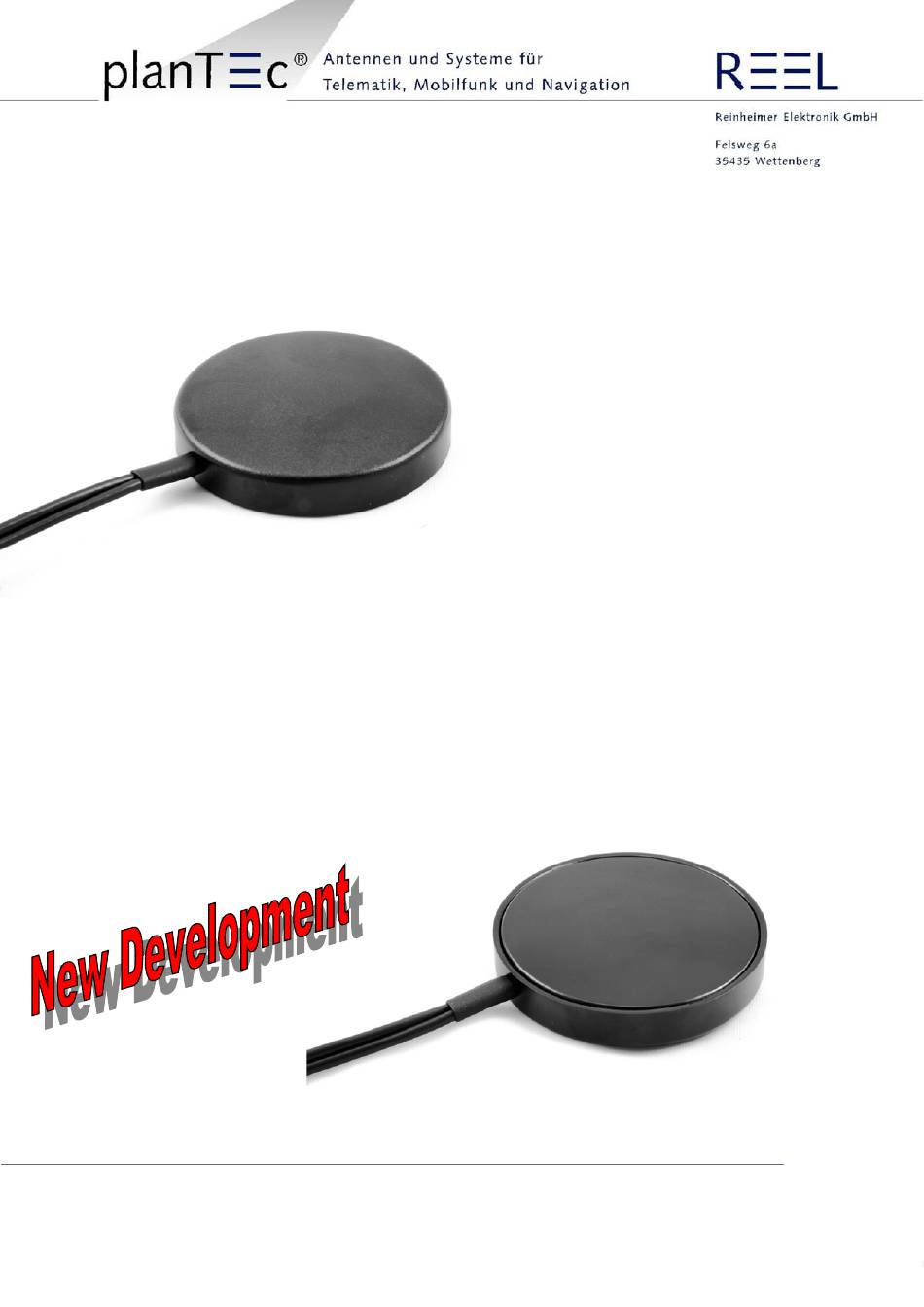

Page 1 Planar Combination Antenna K60ZAD GSM Quadband + UMTS + GPS high gain Desk Mounting Made Germany • Super broadband antenna + UMTS • No changes and modifications on the car body • Mounting by adhesive bonding on all surfaces possible (adhesive bonding antenna) Technical changes reserved.
Page 2 Technical Data Frequency Range 800/900/1800/1900 + 2100 MHz Frequency Range 1575.42 MHz VSWR* < 2.0 for cable longer 1.50m VSWR* 1.5 typ. Peak Gain* +2 dBi typ. (800/900 MHz) Peak Gain* 25 dBi typ. +3 dBi typ. (1800/1900 MHz) +1 dBi typ. (2100 MHz) Power max.
Page 3 Radiation diagram (typ.)* -180 GSM-900 162 171 -171 -162 -153 -144 -135 -126 -117 -108 Peak Gain +2dBi -180 162 171 -171 -162 GSM-1800 -153 -144 -135 -126 -117 -108 Peak Gain +3dBi * measured with 0.60m cable on 30x30cm ground plane Technical changes reserved.
Page 4 (cable pointing below) and apply sufficient pressure. Included in delivery: Sticker; cleaning cloth with isopropanol Important: Before sticking please test the adhesive bonding possibility of the material! Ordering example K60ZAD 0300 00 03 XX Combination antenna Housing diameter GSM-Frequency...
