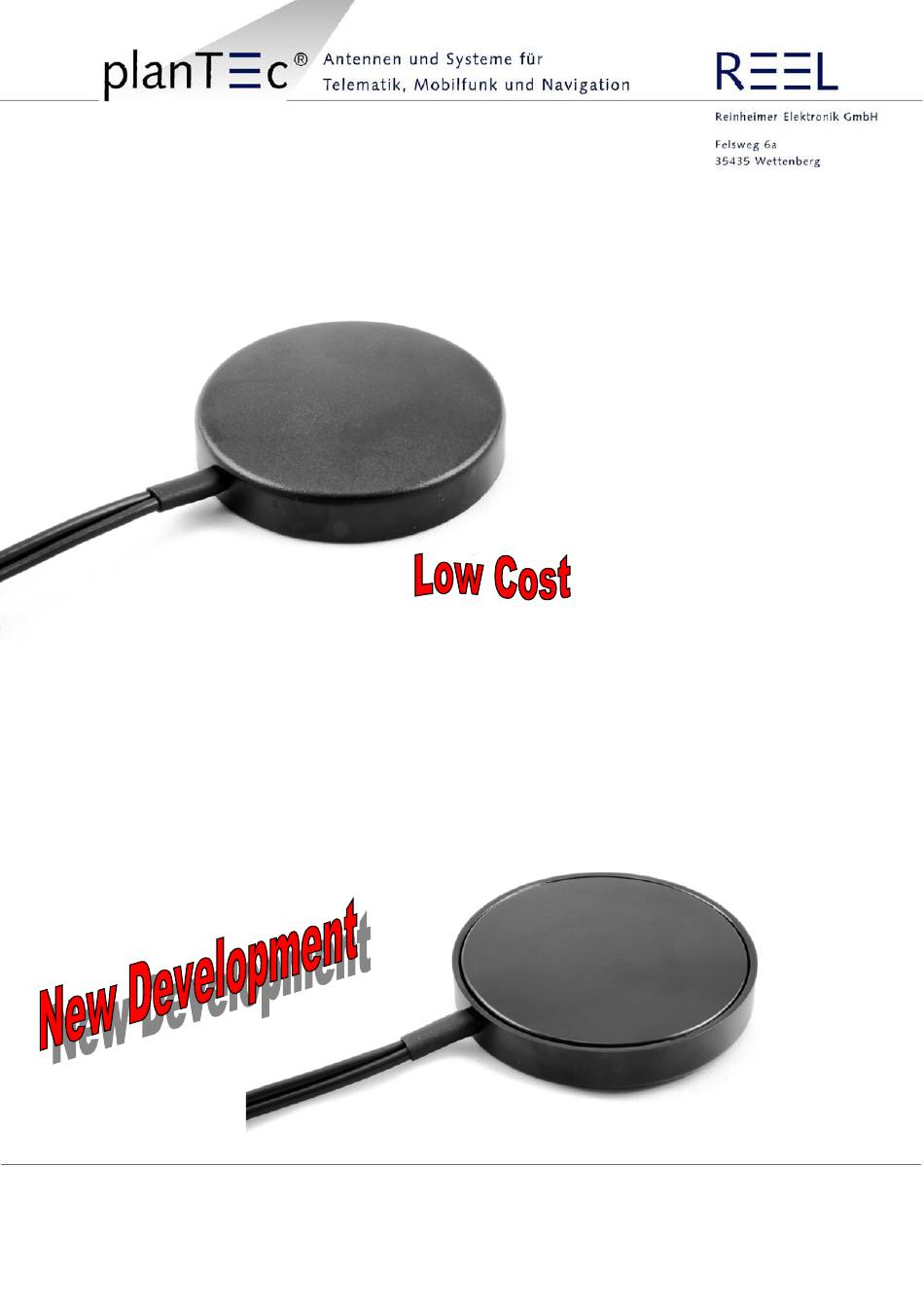

Planar Combination Antenna KLC60ZAW
GSM Quadband + UMTS + GPS high gain
• Super broadband solution GSM 800/900/1800/1900 MHz + UMTS
• Adhesive bonding antenna for mounting inside (not mountable on metal
surfaces)
• No changes and modifications on the car body
Technical changes reserved.
Liability excluded for printing mistakes,
also for mistakes in technical data and
illustrations.
Status 10/08
Site 1 of 4
Window Mounting
Made
in
Germany
Advertisement
Table of Contents
Related Manuals for Plantec KLC60ZAW
Summary of Contents for Plantec KLC60ZAW
- Page 1 Planar Combination Antenna KLC60ZAW GSM Quadband + UMTS + GPS high gain Window Mounting Made Germany • Super broadband solution GSM 800/900/1800/1900 MHz + UMTS • Adhesive bonding antenna for mounting inside (not mountable on metal surfaces) • No changes and modifications on the car body Technical changes reserved.
- Page 2 Technical Data Frequency Range 800/900/1800/1900 + 2100 MHz Frequency Range 1575,42 MHz VSWR* < 2.0 for cable longer 1.50m VSWR* 1,5 typ. Peak Gain* +2 dBi typ. (800/900 MHz) Peak Gain* 25 dBi typ. -1 dBi typ. (1800/1900 MHz) -3 dBi typ. (2100 MHz) Power max.
- Page 3 Radiation diagram (typ.)* GSM-900 -180 162 171 -171 -162 -153 -144 -135 -126 -117 -108 peak Gain +2 dBi GSM-1800 -180 162 171 -171 -162 -153 -144 -135 -126 -117 -108 Peak Gain -1dBi Peak Gain -1dBi * measured with 0.60m cable on 30x30cm ground plane Technical changes reserved.
- Page 4 (cable pointing below) and apply sufficient pressure. Included in delivery: Sticker; cleaning cloth with isopropanol Important: Before sticking please test the adhesive bonding possibility of the material! Ordering example KLC60ZAW 0300 00 03 XX Combination antenna Housing diameter GSM-Frequency...
