- Page 1 LSR6325P ed Studio Monitor System Owner’s Manual...
-
Page 2: Important Safety Instructions
Important Safety Instructions The IEC fuse symbol pictured at the left represents an approved, user replaceable fuse. When replacing a fuse, make sure to replace with only the correct type and fuse rating. 1. Read lnstructions - Before operating your new JBL product, please read all safety and operating instructions. - Page 3 Explanation of Graphic Symbols The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. The lightning flash with the arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated "dangerous voltage"...
-
Page 4: Table Of Contents
Table of Contents Important Safety Instructions ................... 2-3 Table of Contents ........................4 Introduction LSR6325P Features ....................5-6 Front Panel Drawing ....................7 Rear Panel Drawing ....................7 Set-Up Unpacking ........................6 Placement ........................6 Audio Connections ..................... 8 AC Power Connections ....................8 Making Sound Audio Level Adjustment .................... -
Page 5: Introduction

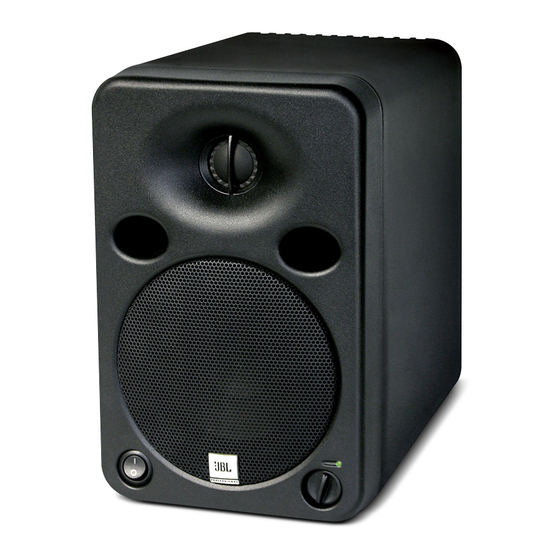

Introduction Congratulations on your purchase of the LSR6325P Bi-Amplifi ed Studio Monitor, the newest member of the LSR6300 Series product line. The LSR6325P system incorporates patented JBL transducer and system technologies designed to provide ultra-accurate response and exceptional SPL capability in a very compact form-factor. -
Page 6: Set-Up
LSR6325P Features to Tackle the Problems in the Room LSR – Linear Spatial Reference Technology JBL Developed Linear Spatial Reference Technology to optimize mid and high frequency accuracy at the listening position where relected sound comes into play. Meeting frequency response criteria for seventy-two off-axis measurements, the LSR6325P ensures that not just the direct sound, but reflected sound that reaches you at the listening position is also smooth and accurate. -
Page 7: Front Panel Drawing
CBCBCBBB... -
Page 8: Audio Connections
Audio Connections The LSR6325P includes one XLR and one RCA connector to accommodate a wide range of signal levels and balanced or unbalanced configurations. The XLR input is nominal +4 dBu sensitivity and the RCA input is -10 dBV. Variable user calibration is provided using the front panel volume control. Positive voltage applied to pin 2 of the XLR or the pin of the RCA jack will produce a forward motion in the cone of the low frequency transducer. -
Page 9: 80 Hz High Pass Filter
Switch 3 boosts the high frequency response by 1.5 dB above 2.3 kHz when set to the UP position. This posi- tion can be used if the room is extremely dead, or you want to hear more high frequency from the speaker to assist you in creating “warmer”... -
Page 10: Lsr6325P Systems With The Lsr6312Sp Subwoofer
Caution: Unsafe mounting or overhead suspension of any heavy load can result in serious injury and equip- ment damage. Mounting of speakers should be done by qualified persons in accordance with all applicable local safety and construction standards. Be certain to follow the instructions provided by the manufacturer of the mounting bracket. -
Page 11: Specifications
Specifications System: Frequency Response (+1, -2 dB): 70 Hz – 20 kHz Enclosure Resonance Frequency: 55 Hz Low Frequency Extension: User controls set to default -3 dB: 65 Hz -6 dB: 56 Hz -10 dB: 48 Hz Low – High Frequency Crossover: 2.3 kHz 4th –... -
Page 12: Transducer Specifications
THD+N, 1/2 power: <0.05% High Frequency: Topology: Class A-B, Monolithic Sine Wave Power Rating: 50 watts (<0.1% THD into rated impedance) THD+1/2 power: <0.05% Long Term Maximum System Power: 110 Watts (IEC 265-5) Transducers: Low Frequency Diameter: 134 mm (5.25 in.) Voice Coil: 38 mm (1.5 in.) Magnet Type: Ferrite with Integral Shielding Cone Type: Tempered Paper with Buty Rubber Surround... -
Page 13: Performance Graphs
-100 -200 -300 -400 -500 -600 -700 -800 -900 -1000 1000 10000 Frequency... -
Page 14: Appendix: Wiring Recommendations
Appendix: Wiring Recommendations For optimum performance, some attention to wiring details can reduce system degradation. If you notice hum present in the system when no audio signal is present, the following wiring recommendations can help. Balanced Sources – The best way to run your system is balanced, where both “HOT” (+) and “COLD” (-) sig- nals are supplied, as well as a GROUND/SHIELD. - Page 15 Diagram C Diagram D and E are similar. In Diagram E, a link is added between Pin 3 and Pin 2 of the XLR connector. In some cases, this could be required if hum is encountered. Diagram D Diagram E...
-
Page 16: Warranty Statement
Warranty Statement Who Is Protected by This Warranty? Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been purchased in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL products purchased elsewhere except for purchases through military outlets. -
Page 17: Jbl Professional Contact Information
JBL Professional Contact Information Mailing Address: Outside the U.S.A. JBL Professional Contact the JBL Professional Distributor in your area. A 8500 Balboa Blvd. complete list of JBL Professional International Distributors Northridge, CA 91329 is provided at our U.S.A. web site - www.jblpro.com Shipping Address: En Dehors des Etats-Unis: JBL Professional... - Page 18 JBL Professional 8500 Balboa Boulevard P . O.Box 2200 Northridge, California 91329 U.S.A. LSR6325P Manual www.jblpro.com 98100056-00 CRP 1M 6/04...
