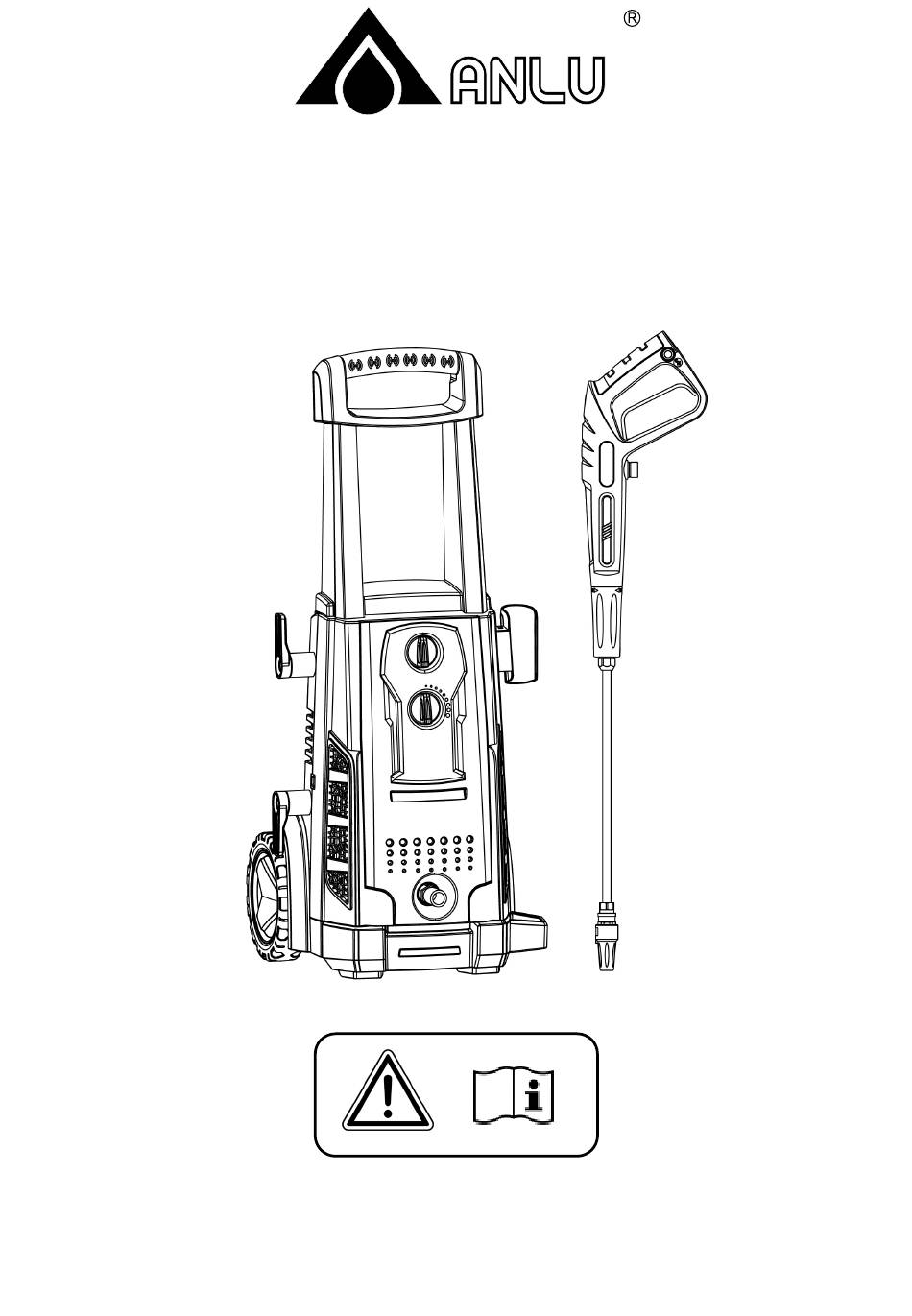

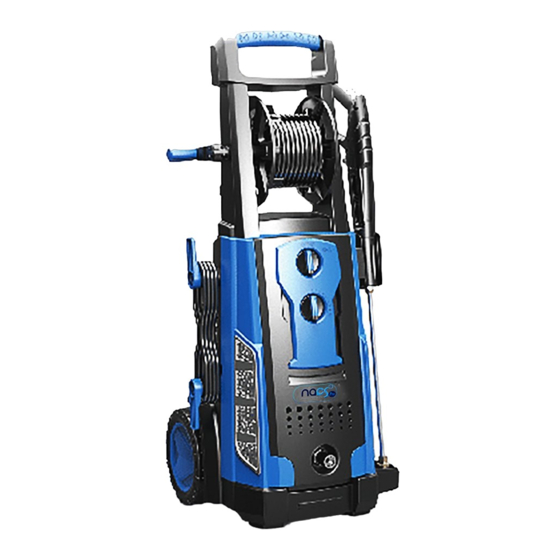

- Page 1 APW-VAS-110P High Pressure Cleaner Operator Manual Original instructions WARNING: Do not use the machine without reading the instruction sheet.
-
Page 2: Safety Regulations
OVERVIEW Item Description Water inlet On/off switch High pressure washer Water outlet (backside) Mobile adapter bracket with wheel Adjustable Spray Wand APPLICATION THE PORTABLE PRESSURE WASHING MACHINE is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. - Page 3 device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit. WARNING: The machine is intended to be used at a temperature above o degree. (Only for machine with power cord of H05VV-F).
- Page 4 WARNING: Be care of the danger of the kickback force on the spray assembly when opening the trigger gun and grasp the gun with hands firmly. WARNING: To reduce the risk of injury, close supervision is necessary when a machine is used near children.
- Page 5 WARNING: When the machine is running, please maintain a constant water supply. Without water circulation will damage the sealing rings of the machine. WARNING: It is necessary to turn on the spray lance within one or two minutes after the machine has been started.
-
Page 6: Adjustable Spray Nozzle
- Check gauze filter is clear of any blockage. - Connect the water supply hose. - Check that the hose has no kinks in it. - Turn on water and check for leaks. - Depress trigger to allow air to be expelled though the pump and hoses, lock trigger. - Plug in machine and turn on switch. -
Page 7: Using Detergent
Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 Fig 6 WATER INLET SCREEN The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the water supply to the pump (fig 5). USING DETERGENT Add detergent to the container. -
Page 8: Cleaning Pin Instruction
Remove additional debris by back-flushing water through the nozzle. To do this, place end of a garden hose ( with water running ) to the end of nozzle for 30-60 seconds. MAJOR TECHNICAL DATA APW-VAS-110P ITEM 11MPa(110 bar) Working pressure 16.5MPa(165 bar) -
Page 9: Electrical Diagram
ELECTRICAL DIAGRAM... - Page 10 POSSIBLE PROBLEM AND SOLUTION FAULT PROBABLE CAUSE REPAIR When Plug is not well connected or electric Check plug, socket switched on socket is faulty the machine will not start The main voltage is insufficient, Check that the main voltage is working lower than minimum requirement adequate.
-
Page 11: Water Inlet
INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. PRESSURE CLEANER 2. WATER SUPPLY HOSE(not include) 3. WATER CONNECTION 4. WATER INLET 5. HIGH PRESSURE TUBE 6. HIGH-PRESSURE, WATER OUTLET 7. SPRAY GUN 8. POWER SUPPLY Given continuous machines development the Note ： company reserves the right to amend machines specifications without notice. -
Page 12: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure a three-month clean the machine. Before working, make sure inspect the filter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine need to be repaired in the guarantee period, please return the machine to the shop.
