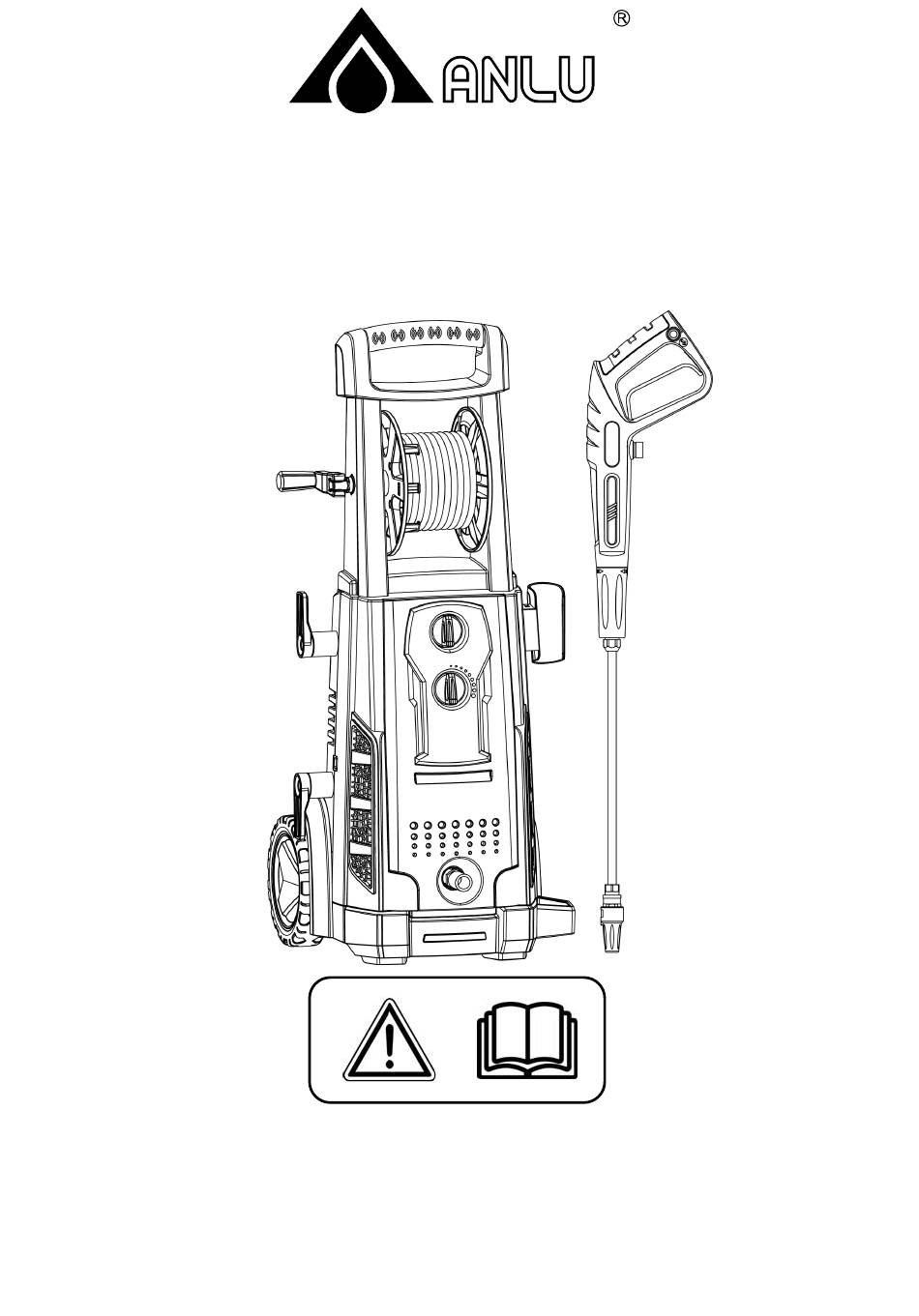

  • Page 1 APW-VAP-130P High Pressure Cleaner Operator Manual BEFORE OPERATING THIS APPLIANCE PLEASE READ THESE INSTRUCTIONS CAREFULLY...
  • Page 2: Safety Regulations

    OVERVIEW Item Description High pressure washer On/off switch mobile adapter bracket with wheel Water outlet Water inlet Hose Reel with Trigger Gun Hose Hose Reel Handle APPLICATION THE PORTABLE PRESSURE WASHING MACHINE is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc.
  • Page 3 WARNING: The appliance is intend to be used at a temperature above 0 degree. WARNING: Read all the instructions before using the product. WARNING: Before each use pressure must be released! Trigger on wand then start the washer WARNING: To reduce the risk of injury, close supervision is necessary when a product is used near children.
  • Page 4 WARNING: To reduce the risk of electrocution, don’t start and run the machine in the rain or storm. Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibited to let water leak into the machine. WARNING: When the machine is turned on, the interior pumps start and continue to run even if the pressure wand trigger has not been depressed.
  • Page 5: Adjustable Spray Nozzle

    OPERATING INSTRUCTIONS This unit is to be connected to a cold water source ONLY The motor of this pressure washer will NOT run, it will only operate when the trigger is squeezed. - Connect the outlet hose to the washer and connect the spray gun to the outlet hose. - Connect nozzle and nozzle extension.
  • Page 6 CAUTION: Selection of high or low pressure by turning action. The selection of the pressure must be carried out with the gun in closed position. Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 WATER INLET SCREEN The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the water supply to the pump (fig 5).
  • Page 7: Long Term Storage

    LONG TERM STORAGE The machine should be stored in a frost-free environment. After long-term storage without operation, it is possible to form scales inside the machine making it hard to start again. In such conditions it is recommended to turn off and disconnect the power supply and rotate the motor by hand several times so as to avoid excessive current draw on the motor and the power supply.
  • Page 8: Major Technical Data

    MAJOR TECHNICAL DATA APW-VAS-130P ITEM 13MPa(130 bar) Working pressure 7.5 l/min Working flow rate 0.4MPa(4bar) Max. pressure water supply 2.7 kw Motor Capacity 220-240V/50Hz Power Supply Voltage 50 ℃ Max Water Temperature 25kgs Weight 100x 39 x 42 Dimensions(CM) ELECTRICAL DIAGRAM...
  • Page 9: Troubleshooting

    TROUBLE SHOOTING FAULT PROBABLE CAUSE REPAIR When Plug is not well connected or electric Check plug, socket switched on socket is faulty the machine will not start The main voltage is insufficient, Check that the main voltage is working lower than minimum requirement adequate.
  • Page 10 INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. PRESSURE CLEANER 2. WATER SUPPLY HOSE(not include) 3. WATER CONNECTION 4. WATER INLET 5. HIGH PRESSURE TUBE 6. HIGH-PRESSURE, WATER OUTLET 7. SPRAY GUN 8. POWER SUPPLY The company reserves the right to modify its Note :...
  • Page 11 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
