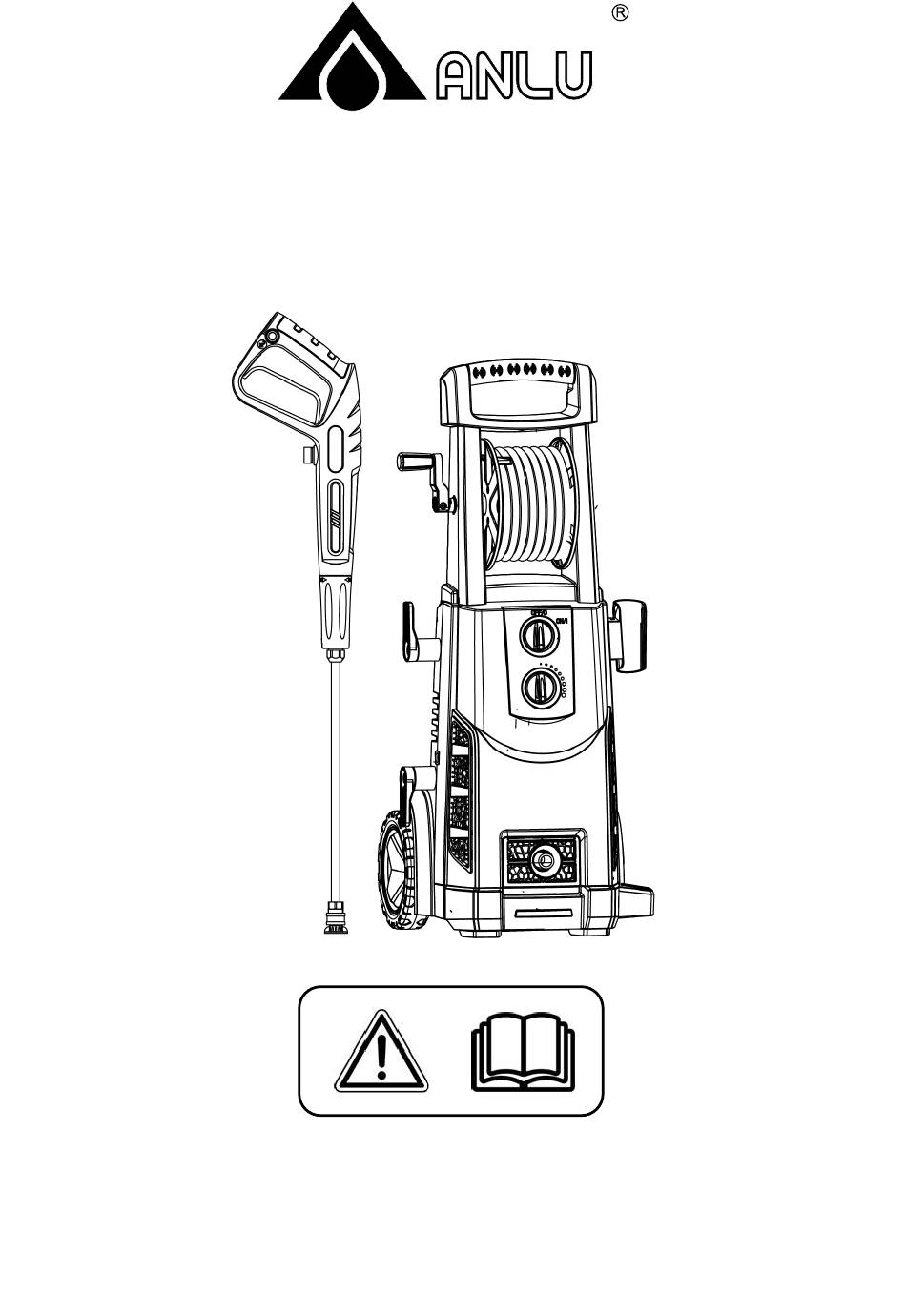

- Page 1 APW-VAP-150P High Pressure Cleaner Operator Manual BEFORE OPERATING THIS APPLIANCE PLEASE READ THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Safety Regulations

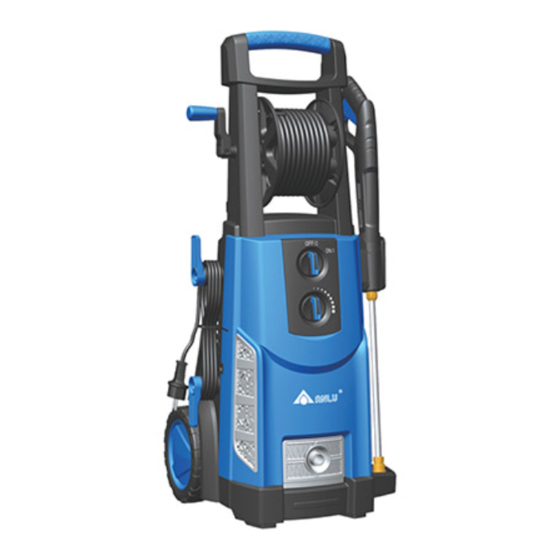

OVERVIEW Item Description High pressure washer On/off switch Water outlet Water inlet Mobile adapter bracket with wheel Hose Reel Handle Hose Reel with Trigger Gun Hose APPLICATION THE PORTABLE PRESSURE WASHING MACHINE is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. - Page 3 WARNING: Read all the instructions before using the product. WARNING: Before each use pressure must be released! Trigger on wand then start the washer WARNING: To reduce the risk of injury, close supervision is necessary when a product is used near children.
- Page 4 storm. Keep all connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibited to let water leak into the machine. WARNING: When the machine is turned on, the interior pumps start and continue to run even if the pressure wand trigger has not been depressed.
-
Page 5: Spray Nozzles
OPERATING INSTRUCTIONS This unit is to be connected to a cold water source ONLY The motor of this pressure washer will NOT run, it will only operate when the trigger is squeezed. - Connect the outlet hose to the washer and connect the spray gun to the outlet hose. - Connect nozzle and nozzle extension. - Page 6 Fig 1 Fig2 Fig 3 Fig 4 25° Nozzle – Green: This nozzle delivers a 25 degree spray pattern for intense cleaning of larger areas. This nozzle should only be used on areas that can withstand pressure from this nozzle. (fig 40°...
-
Page 7: Long Term Storage
LONG TERM STORAGE The machine should be stored in a frost-free environment. After long-term storage without operation, it is possible to form scales inside the machine making it hard to start again. In such conditions it is recommended to turn off and disconnect the power supply and rotate the motor by hand several times so as to avoid excessive current draw on the motor and the power supply. -
Page 8: Major Technical Data
MAJOR TECHNICAL DATA APW-VAP-150P ITEM 15MPa(150 bar) Working pressure 7.5 l/min Working flow rate 0.4MPa(4bar) Max. pressure water supply 3.2 kw Motor Capacity 220-240V/50Hz Power Supply Voltage 50 ℃ Max Water Temperature 26kgs Weight 100x 39 x 42 Dimensions(CM) ELECTRICAL DIAGRAM... -
Page 9: Troubleshooting
TROUBLE SHOOTING FAULT PROBABLE CAUSE REPAIR When Plug is not well connected or electric Check plug, socket switched on socket is faulty the machine will not start The main voltage is insufficient, Check that the main voltage is working lower than minimum requirement adequate. - Page 10 INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. PRESSURE CLEANER 2. WATER SUPPLY HOSE(not include) 3. WATER CONNECTION 4. WATER INLET 5. HIGH PRESSURE TUBE 6. HIGH-PRESSURE, WATER OUTLET 7. SPRAY GUN 8. POWER SUPPLY The company reserves the right to modify its Note ：...
- Page 11 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
