Summary of Contents for Acnodes KDS 6170 Series
-
Page 1: User Manual

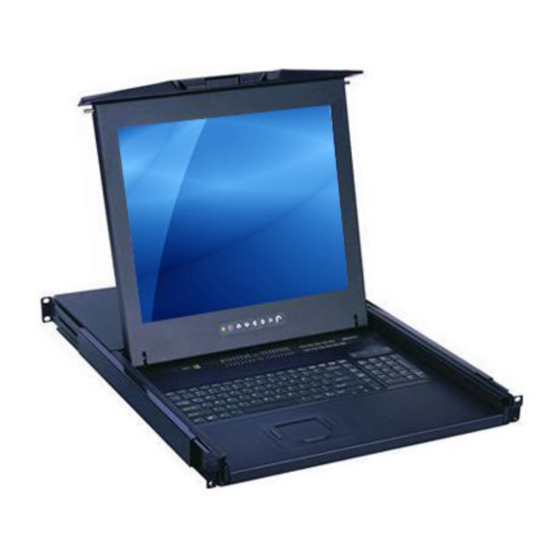

1U Rackmount LCD Keyboard Drawer User Manual KDS 6170/6190 Series KVM Model KDS 6178/6198: 17”/19” 8 Ports KVM KDS 61716/61916: 17”/19” 16 Ports KVM... -
Page 2: Table Of Contents
KDS 6170/6190 1. Table of Content 2. Read Before Installation 3. Introduction 4. Features 5. Package Contents 6. Optional Accessories 7. Peripheral Products 8. Important Safeguards 9. Structure Diagram 10. Dimension Diagram KDS 6170-8/16 KDS 6190-8/16 11. LCD Session LCD Membrane Diagram... -
Page 3: Operating System Compatibility
KDS 6170/6190 2. Read Before Installation Technical Notes For Windows 98/98 SE systems HID (Human Interface Device) driver must be installed prior to using the USB KVM switch. To install the HID driver, first connect a USB keyboard and mice directly to computer (before installing KVM switch) then follow the Windows installation instructions, this will install the HID device driver and allow the use of the KVM switch. -
Page 4: Introduction
KDS 6170/6190 3. Introduction S Solutions is total compatible with Solaris. The LCD screen support SUN native 1152 x 900 & standard resolutions. in t eg ra t ed SUN system administration commands keys. It is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control SUN/ PC system. -
Page 5: Package Contents
KDS 6170/6190 User Manual LCD Monitor Drawer (optional USB KVM Switch) User Manual DC Power Adapter Power Cord Mounting Bracket Fasteners CB-6 2-in-1 KVM cable (without KVM) CB-6 2-in-1 KVM cable (with KVM) Before Unpacking It is very important to locate the LCD Keyboard Drawer in a suitable environment. -
Page 6: Optional Accessories
KDS 6170/6190 6. Optional Accessories KVM Cable CBU-6 / 10 / 15 Cascade Cable Others 7. Peripheral Products CV-S801 CV-S1601 CV-S1602 CV-S101 Rev. : 1.0 6ft / 10ft / 15ft USB 2-in-1 cable 6ft USB Cascade cable Video Input 12V / 24V / 48V DC Power Supply... -
Page 7: Important Safeguards
KDS 6170/6190 8. Important Please read all of these instructions carefully before you use the device. Save this manual for future reference. Unplug the LCD Keyboard Drawer from the power outlet before cleaning. Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a neutral detergent (e.g. -
Page 8: Structure Diagram
S117 / S119 USB SUN compatible keyboard 3 Buttons trackball mouse SUN keys Aluminium front panel Class A active matrix TFT LCD panel LCD membrane Ball bearing telescopic slides with stopper Adjustable mounting bracket USB KVM switch ( Optional ) Rev. -
Page 9: Dimension Diagram
KDS 6170/6190 User Manual 10. Dimension Diagram KDS 617X - X:0/8/16 1U 17 LCD Keyboard Drawer with USB KVM 17 LCD Rev. : 1.0... - Page 10 KDS6170/6190 User Manual 10. Dimension Diagram KDS 619X- X:0/8/16 1U 19 LCD Keyboard Drawer with USB KVM 19 LCD Rev. : 1.0...
-
Page 11: Kds 6170-8/16
KDS 6170/6190 User Manual Session Rev. : 1.0 P.10... -
Page 12: Lcd Membrane Diagram
KDS 6170/6190 11. LCD Session LCD Membrane Diagram Main Menu Bright / Contrast To enter into the Bright, Black level & Contrast sub-menu Auto Adjust To perform automatic optimisations of all functions An Adjusting message is displayed during the process Phase / Clock To enter into the phase &... - Page 13 KDS 6170/6190 11. LCD Session Bright / Contrast 1. Brightness To perform brightness adjustment of the input RGB signal Use the Left & Right button to adjust and button 2. Contrast To adjust the contrast level of the input signal Use the Left &...
- Page 14 KDS 6170/6190 11. LCD Session MISC 1. Information The first header row shows the current resolution setup The second header row shows the horizontal frequency of the current input signal The third header row shows the vertical frequency of the current input signal 2.
-
Page 15: Resolution Settings
KDS 6170/6190 11. LCD Session Resolution Settings For Microsoft Windows Step 1 Step 2 Step 3 Step 4 Rev. : 1.0 Press right click on the desktop Choose Properties Change the Screen Resolution Change the Screen refresh rate P.14 User Manual... -
Page 16: Kvm Session
KDS 6170/6190 User Manual Session Rev. : 1.0 P.15... -
Page 17: Front View
KDS 6170/6190 12. KVM Session Front View Online Channel LED Indication Selected Channel Channel select button - Press to select channel from 1 Shift button Online Channel Bank no. Bank button Rev. : 1.0 Selected Channel Channel Select Button - Displayed channel on monitor & red in LED. -
Page 18: Rear View
KDS 6170/6190 12. KVM Session Rear View Power 16 Ports KVM Switch 8 Ports KVM Switch DC Power Cascade Port Console Port Channel Port Rev. : 1.0 Cascade Channel Port Port -connect to external 12V DC power adapter. -connect to additional KVM switch for channel expansion. -
Page 19: Installation Steps
KDS 6170/6190 12. KVM Session Installation Steps Before installation, please make sure all computers are turned on and its operating system are running properly with keyboard and mouse. Connect the 2-in-1KVM cable to the one of your server. Plug the power adapter included to the switch. -
Page 20: Cascading
KDS 6170/6190 12. KVM Session Cascading Using a USB KVM cable to connect from Bank 1 s Cascade port to Bank s Console port . After connected please press Bank & Channel button on the front of the USB KVM switch to reset the USB KVM switch. -
Page 21: Start Up
KDS 6170/6190 13. Start Up The channels that have PC connected and it is switch on will have a green LED on that channel. The red LED will indicate the selected channel. 7 segments LED will display the bank number. -
Page 22: Hotkey Command Operation
KDS 6170/6190 13. Start Up Hot-key Command Operation Calling OSD Menu Scroll Switch to Previous Port (powered on PC only) Scroll Switch to Next Power On Port (powered on PC only) Scroll Switch to Previous Bank Scroll Switch to Specific Port... - Page 23 KDS 6170/6190 13. Start Up HotKey Command Operation Switch to Next Bank Scroll Enable / Disable beeper sound Scroll Note: 8. Auto Scan for Powered on PC Scroll Reset to factory Default Setting Scroll Note: 10. Find Port by name...
-
Page 24: Kvm Osd Operation
KDS 6170/6190 13. Start Up KVM OSD Operation Note: MAIN CONTROLS - OSD Menu of USB KVM switch To pop up MAIN CONTROLS OSD menu of USB KVM switch, please use hot keys command . To operate MAIN CONTROLS, please use keyboard and mouse. - Page 25 KDS 6170/6190 13. Start Up LANGUAGE Menu LANGUAGE CHOOSE A LANGUAGE : ENGLISH Mouse Operation : Move mouse and click the left button to choose a language, and click left key again to save. Keyboard Operation : Press Ï Rev. : 1.0 Ð...
- Page 26 KDS 6170/6190 13. Start Up PORTNAME Menu PORTNAME Bank Use Tab key to select session like Bank, PC, OSD, SCAN, CHANGE PASS- WORD, CONSOLE ON/OFF, etc Bank Session Use Page Up & Page Down to switch previous or next bank...
- Page 27 KDS 6170/6190 13. Start Up TIMEVIEW Menu TIMEVIEW SCAN : OSD TIME means the display period of OSD windows or PC system name on your monitor. You can modify it from 05 sec to 99 sec. The factory default value is 10 sec...
-
Page 28: Security Menu
KDS 6170/6190 13. Start Up SECURITY Menu SECURITY ENTER PASSWORD _ _ _ _ _ _ _ _ ENTER NEW PASSWORD _ _ _ _ _ _ _ _ RETYPE NEW PASSWORD _ _ _ _ _ _ _ _ To CHANGE PASSWORD for avoiding all PC systems to be intruded by the others. - Page 29 KDS 6170/6190 13. Start Up FINDPORT Menu FINDPORT ENTER NAME : _ _ _ _ _ _ _ _ _ _ FINDPORT option helps you to find the PC system by its name. Enter PC system name and press ENTER, it will search the matching PC system and given the message for searching result.
-
Page 30: Help Menu
KDS 6170/6190 13. Start Up CONSOLE Menu CONSOLE ENABLE DISABLE ENABLE DISABLE is entered.When password is entered already and pass the KVM switch authentication, the CONSOLE will be set to Default After finish the usage of KVM switch, please don t forget to set up Note: CONSOLE ENABLE state to DISABLE state. -
Page 31: Keyboard & Key Pad Layout
KDS 6170/6190 14. Keyboard & Key Pad Layout Press the Fn/Num button to switch the color of Num LED. The Num LED in Blue color: The key pad behaves as a SUN Solaris system administration commands mode below Rev. : 1.0 Compose LED always off when on or off compose key. -
Page 32: Faq
KDS 6170/6190 15. FAQ Keyboard or mouse dose not work or not be compatible with the PC. Please make sure the keyboard or mouse works when directly plug into the computer. If the problem persists, please try another keyboard or mouse. -
Page 33: Technical Specification
KDS 6170/6190 16. Technical Specifications KVM Channel Port KVM Channel Interface PC Computer Interface Cascade Port Connector KVM Cable Connection PC selection On Screen Display Control Scan Mode Intervals VGA Resolution Bandwidth Cascade MAX. Level Housing Power Adapter Operation Temperature... - Page 34 KDS 6170/6190 16. Technical Specifications LCD Origin Panel Resolution Brightness Color Contrast Ratio Viewing Angle Display Area Pixel Pitch Response Time (Tr) Response Time (Tf) Back Light Horizontal Sync. Vertical Sync. Input Signal Power Management OSD Control Power Input Video Input...
