"PROFLEX" ENCLOSURE COMBO SET
Assembly, Installation, Care, Maintenance, and User Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with mature, knowledgeable supervision.
These instructions are important to minimise chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed165lbs/75kg for this product.
8FT (244CM) TRAMPOLINE AND
MODEL NUMBER # TR-8COM-PLX
KEYCODE: 42391777
CUSTOMER SERVICE
Toll Free: 1-800-333-061
MONDAY-FRIDAY, 9 A.M. -5 P.M. CENTRAL TIME
DO NOT ALLOW
MORE THAN
ONE PERSON
ON THE
TRAMPOLINE
AT A TIME.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tasman Sports PROFLEX TR-8COM-PLX
Summary of Contents for Tasman Sports PROFLEX TR-8COM-PLX

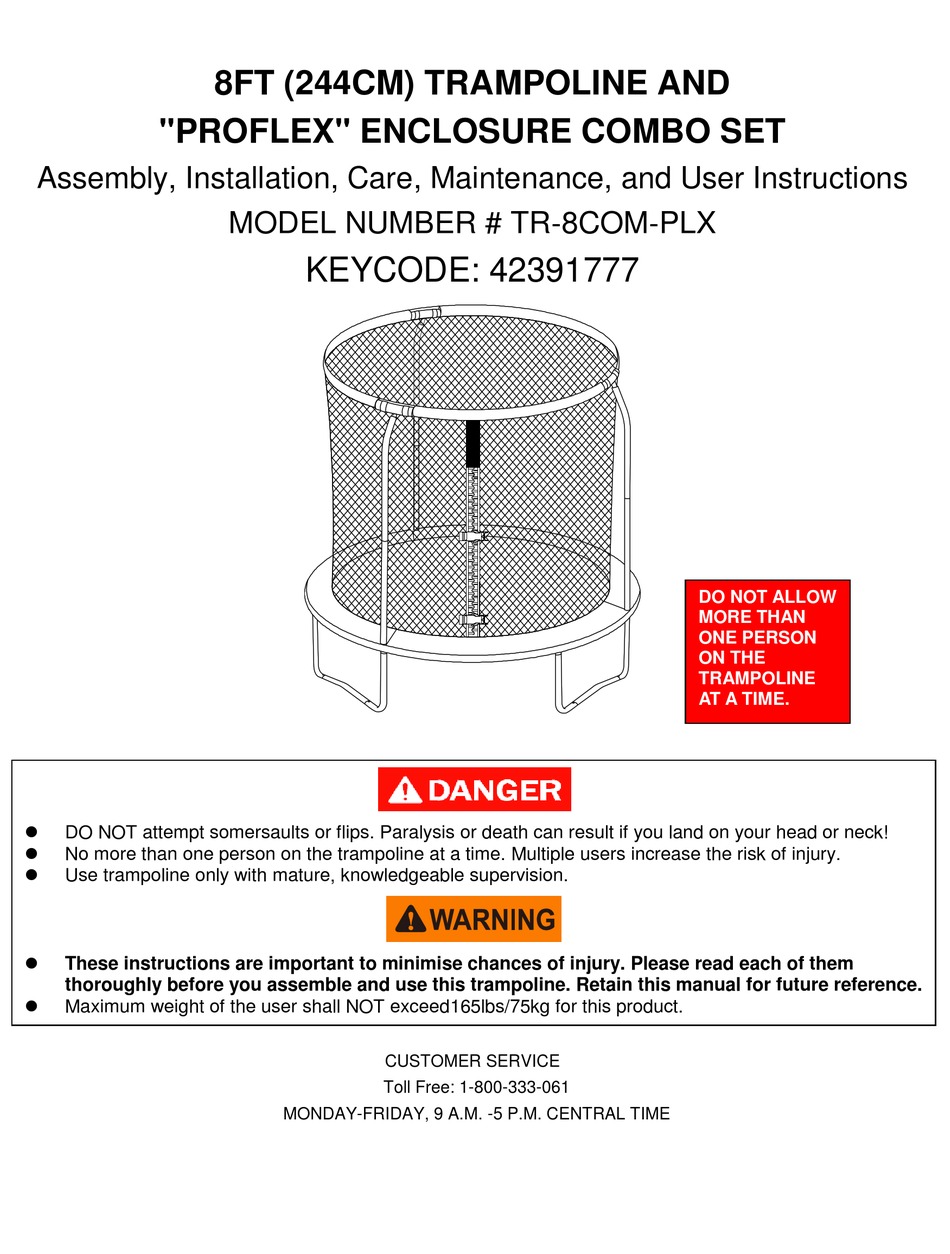

- Page 1 8FT (244CM) TRAMPOLINE AND "PROFLEX" ENCLOSURE COMBO SET Assembly, Installation, Care, Maintenance, and User Instructions MODEL NUMBER # TR-8COM-PLX KEYCODE: 42391777 DO NOT ALLOW MORE THAN ONE PERSON ON THE TRAMPOLINE AT A TIME. DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! ...
